Rigging work
12.11 Other rigging work
12.11.4
Camera on
main boom
G
12 - 132

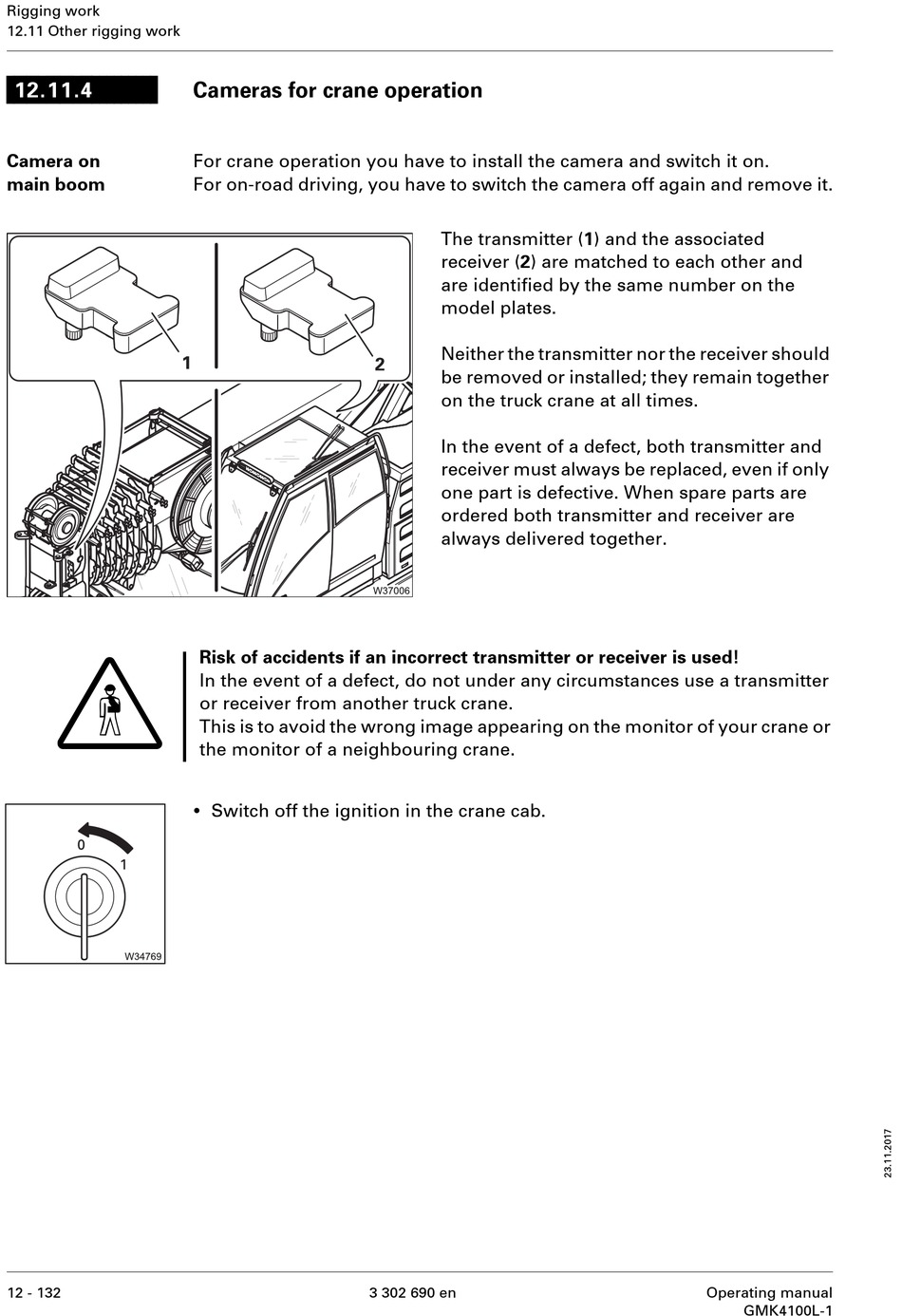

Cameras for crane operation

For crane operation you have to install the camera and switch it on.
For on-road driving, you have to switch the camera off again and remove it.
Risk of accidents if an incorrect transmitter or receiver is used!
In the event of a defect, do not under any circumstances use a transmitter
or receiver from another truck crane.
This is to avoid the wrong image appearing on the monitor of your crane or
the monitor of a neighbouring crane.
•
Switch off the ignition in the crane cab.
The transmitter (1) and the associated
receiver (2) are matched to each other and
are identified by the same number on the
model plates.
Neither the transmitter nor the receiver should
be removed or installed; they remain together
on the truck crane at all times.
In the event of a defect, both transmitter and
receiver must always be replaced, even if only
one part is defective. When spare parts are
ordered both transmitter and receiver are
always delivered together.
3 302 690 en Operating manual
GMK4100L-1
