12.8.6
Operating manual
GMK4100L-1

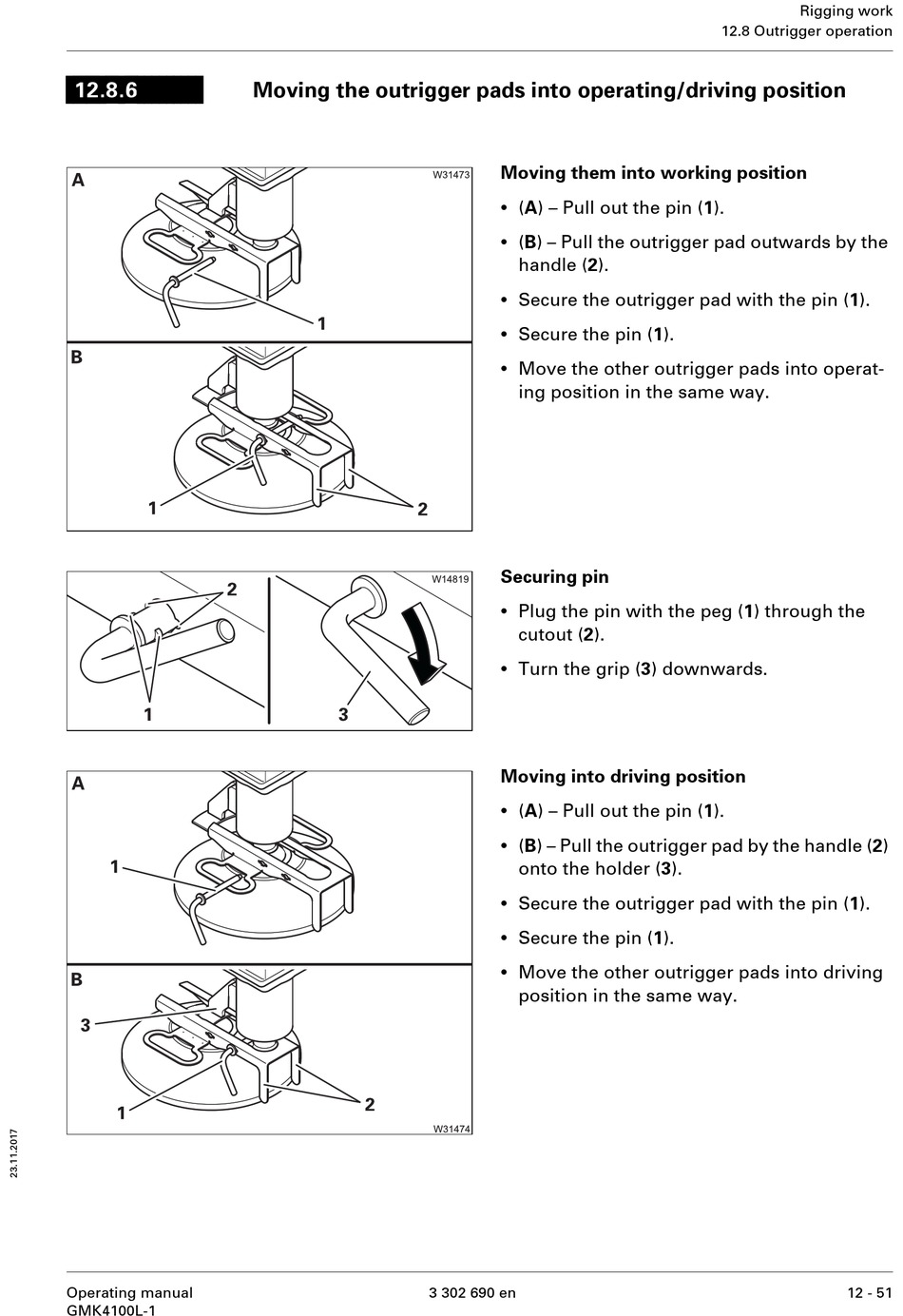

Moving the outrigger pads into operating/driving position

Moving them into working position
•
(A) – Pull out the pin (1).
•
(B) – Pull the outrigger pad outwards by the
handle (2).
•
Secure the outrigger pad with the pin (1).
•
Secure the pin (1).
•
Move the other outrigger pads into operat-
ing position in the same way.
Securing pin
•
Plug the pin with the peg (1) through the
cutout (2).
•
Turn the grip (3) downwards.
Moving into driving position
•
(A) – Pull out the pin (1).
•
(B) – Pull the outrigger pad by the handle (2)
onto the holder (3).
•
Secure the outrigger pad with the pin (1).
•
Secure the pin (1).
•
Move the other outrigger pads into driving
position in the same way.
3 302 690 en
Rigging work
12.8 Outrigger operation
12 - 51
