Rigging work

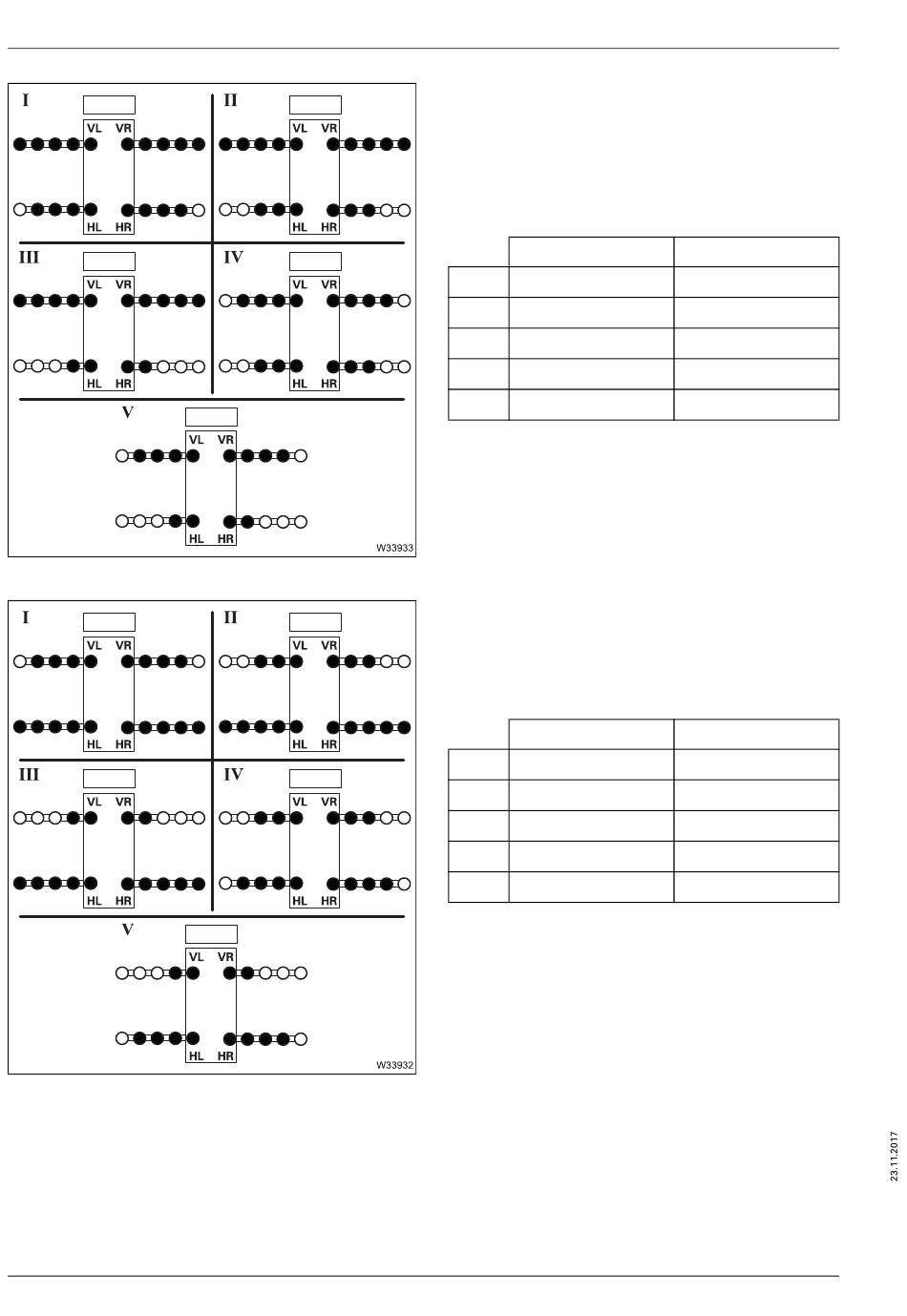

12.7 Outriggers – Overview – MAXbase slewing range type
12 - 36
Front / rear
– Front greater than rear
The front outrigger beams are extended fur-
ther than the rear outrigger beams. The table
shows the permissible combinations.
I
3.600 m (11.8 ft)
II
3.600 m (11.8 ft)
III
3.600 m (11.8 ft)
IV
3.125 m (10.3 ft)
V
3.125 m (10.3 ft)
– Rear greater than front
The rear outrigger beams are extended further
than the front outrigger beams. The table
shows the permissible combinations.
I
3.125 m (10.3 ft)
II
2.650 m (8.7 ft)
III
1.900 m (6.2 ft)
IV
2.650 m (8.7 ft)
V
1.900 m (6.2 ft)
3 302 690 en
FR / FL RR / RL
3.125 m (10.3 ft)
2.650 m (8.7 ft)
1.900 m (6.2 ft)
2.650 m (8.7 ft)
1.900 m (6.2 ft)
FR / FL RR / RL
3.600 m (11.8 ft)
3.600 m (11.8 ft)
3.600 m (11.8 ft)
3.125 m (10.3 ft)
3.125 m (10.3 ft)
