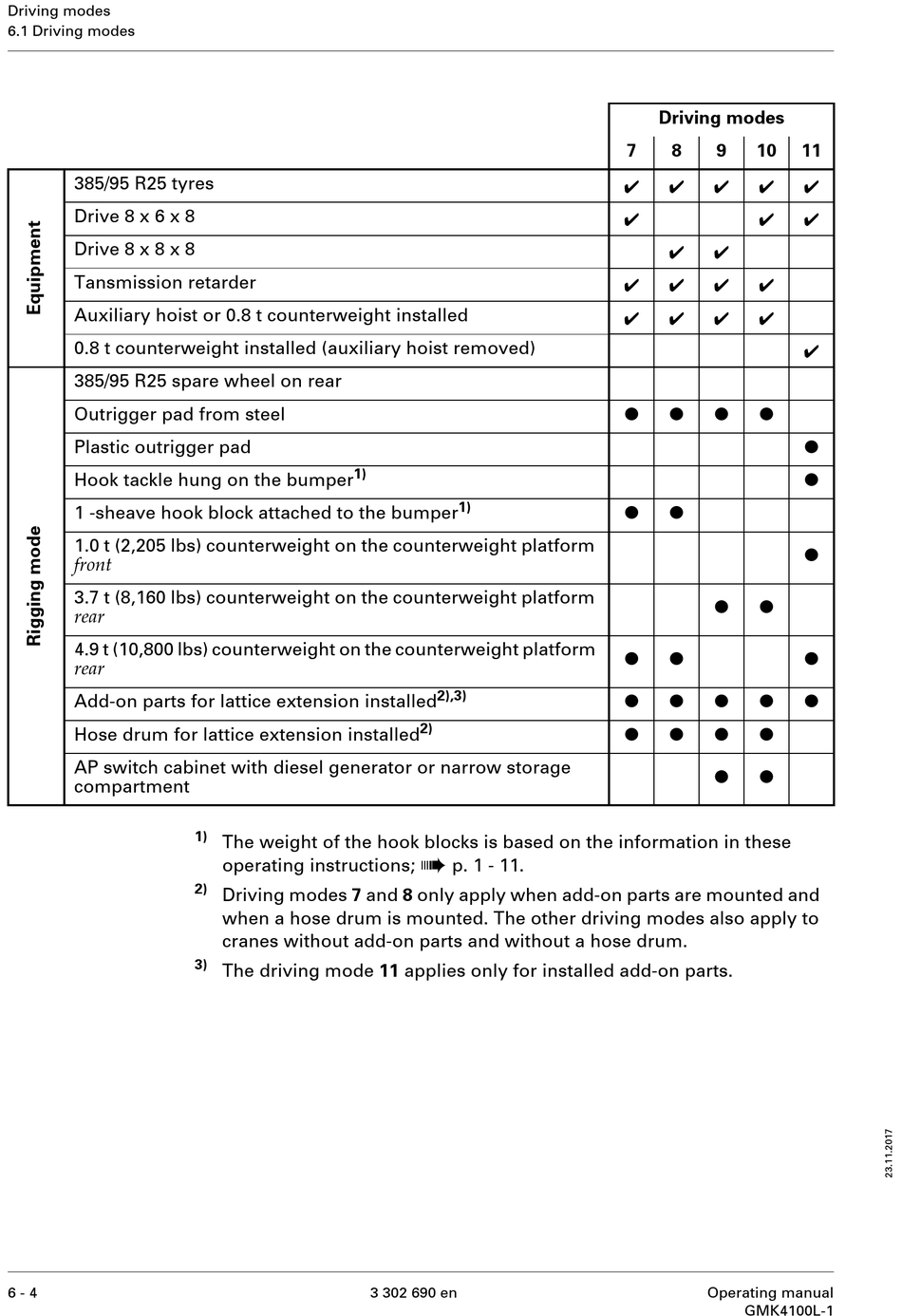

Driving modes
6.1 Driving modes
385/95 R25 tyres
Drive 8 x 6 x 8
Drive 8 x 8 x 8
Tansmission retarder
Auxiliary hoist or 0.8 t counterweight installed
0.8 t counterweight installed (auxiliary hoist removed)
385/95 R25 spare wheel on rear
Outrigger pad from steel
Plastic outrigger pad
Hook tackle hung on the bumper
1 -sheave hook block attached to the bumper
1.0 t (2,205 lbs) counterweight on the counterweight platform
front
3.7 t (8,160 lbs) counterweight on the counterweight platform
rear
4.9 t (10,800 lbs) counterweight on the counterweight platform
rear
Add-on parts for lattice extension installed
Hose drum for lattice extension installed
AP switch cabinet with diesel generator or narrow storage
compartment
6 - 4
1)
1)
The weight of the hook blocks is based on the information in these
operating instructions;
2)
Driving modes 7 and 8 only apply when add-on parts are mounted and
when a hose drum is mounted. The other driving modes also apply to
cranes without add-on parts and without a hose drum.
3)
The driving mode 11 applies only for installed add-on parts.
