5.6
5.6.1
Switching on
Heating
Operating manual
GMK4100L-1

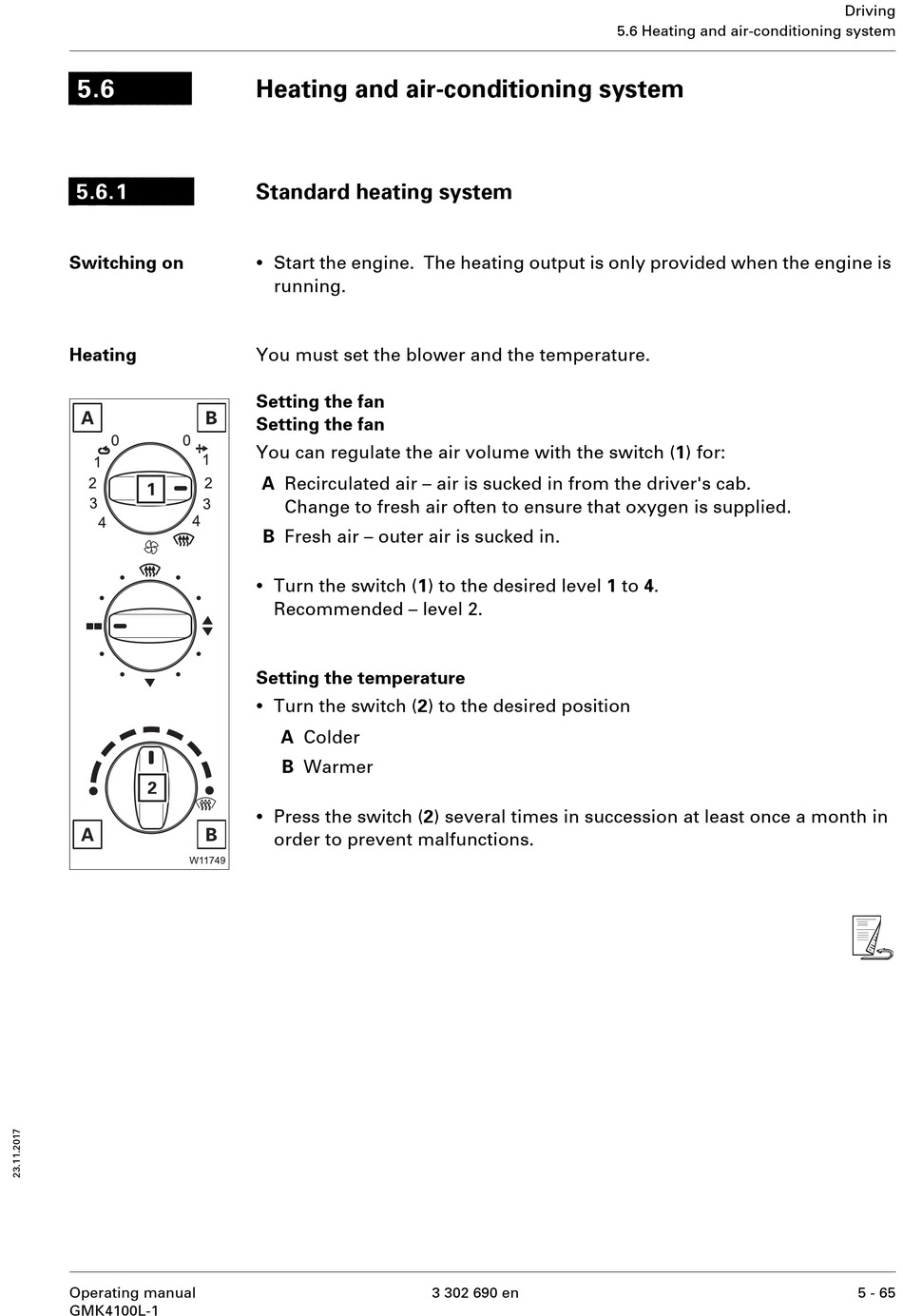

Heating and air-conditioning system

Standard heating system

•
Start the engine. The heating output is only provided when the engine is
running.
You must set the blower and the temperature.
Setting the fan
Setting the fan
You can regulate the air volume with the switch (1) for:
A Recirculated air – air is sucked in from the driver's cab.
Change to fresh air often to ensure that oxygen is supplied.
B Fresh air – outer air is sucked in.
•
Turn the switch (1) to the desired level 1 to 4.
Recommended – level 2.
Setting the temperature
•
Turn the switch (2) to the desired position
A Colder
B Warmer
•
Press the switch (2) several times in succession at least once a month in
order to prevent malfunctions.
3 302 690 en
5.6 Heating and air-conditioning system
Driving
s
5 - 65
