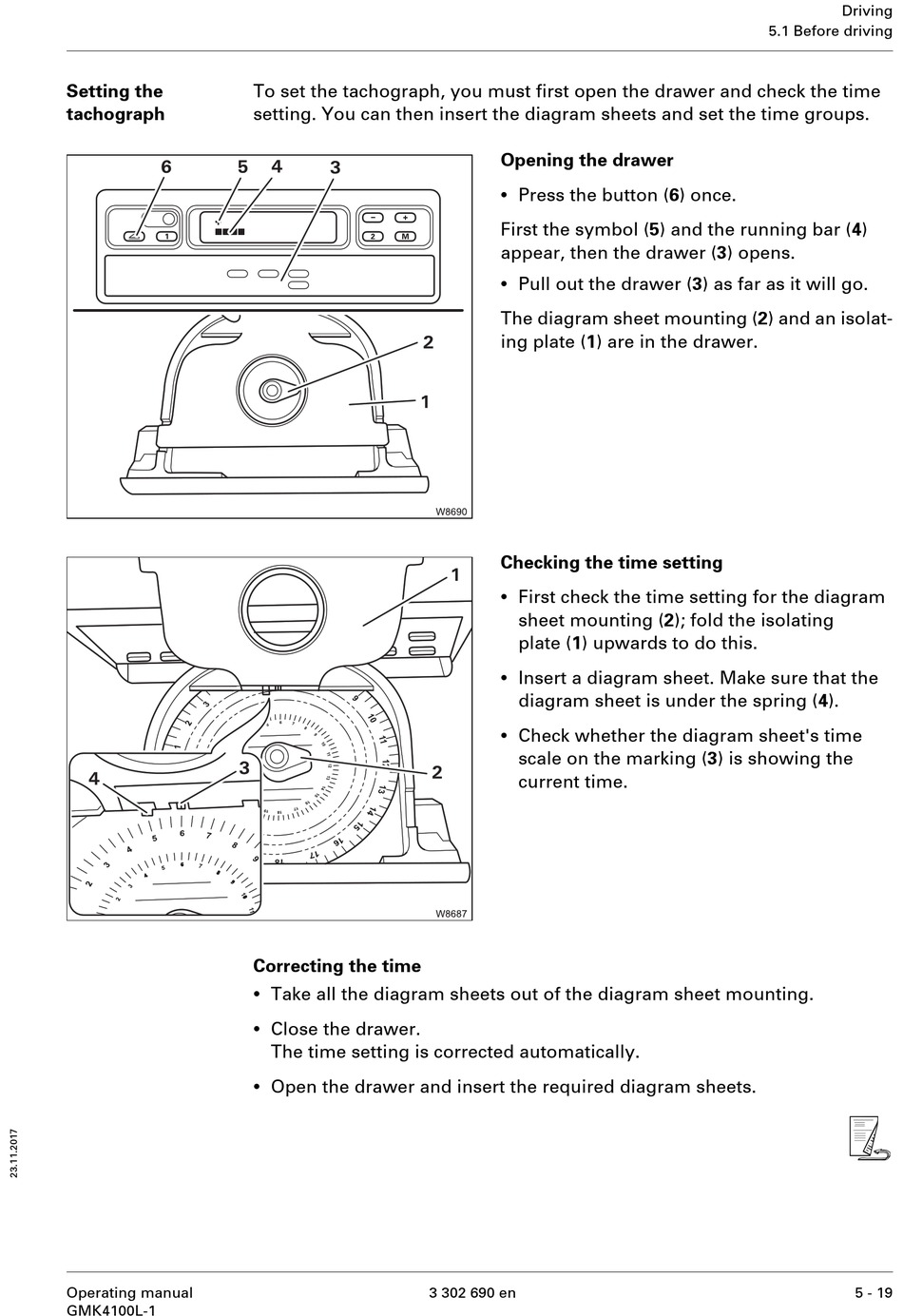

Manitowoc Grove GMK4100L-1 Operating Manual page 233

Setting the
tachograph
Operating manual
GMK4100L-1
To set the tachograph, you must first open the drawer and check the time
setting. You can then insert the diagram sheets and set the time groups.
Correcting the time
•
Take all the diagram sheets out of the diagram sheet mounting.
•
Close the drawer.
The time setting is corrected automatically.
•
Open the drawer and insert the required diagram sheets.
Opening the drawer
•
Press the button (6) once.
First the symbol (5) and the running bar (4)
appear, then the drawer (3) opens.
•
Pull out the drawer (3) as far as it will go.
The diagram sheet mounting (2) and an isolat-
ing plate (1) are in the drawer.
Checking the time setting
•
First check the time setting for the diagram
sheet mounting (2); fold the isolating
plate (1) upwards to do this.
•
Insert a diagram sheet. Make sure that the
diagram sheet is under the spring (4).
•
Check whether the diagram sheet's time
scale on the marking (3) is showing the
current time.
