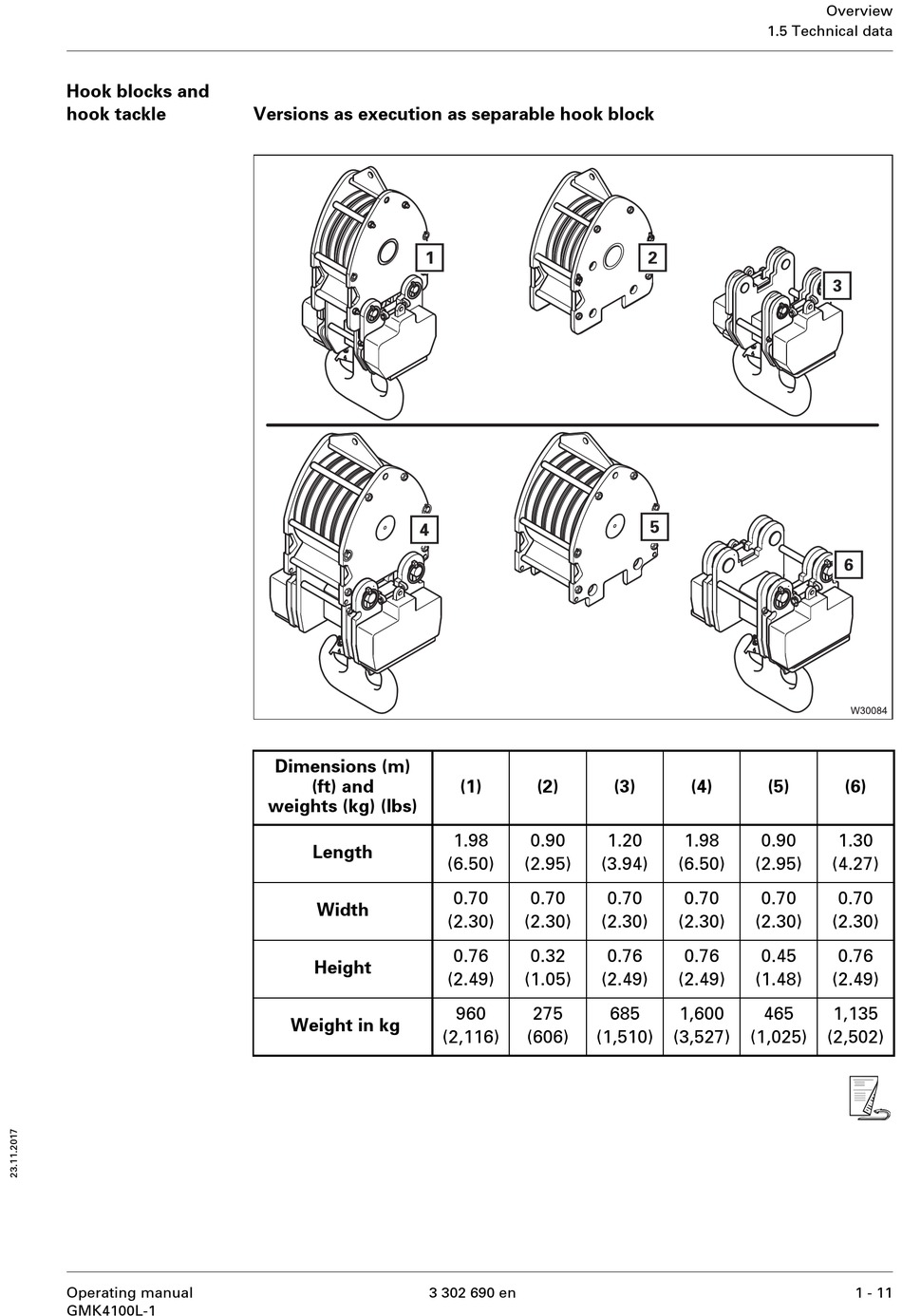

Manitowoc Grove GMK4100L-1 Operating Manual page 77

Hook blocks and
hook tackle
Operating manual
GMK4100L-1
Versions as execution as separable hook block
Dimensions (m)
(ft) and
weights (kg) (lbs)
Length
Width
Height
Weight in kg
(1) (2)
1.98 0.90
(6.50) (2.95)
0.70 0.70
(2.30) (2.30)
0.76 0.32
(2.49) (1.05)
960 275
(2,116) (606) (1,510)
3 302 690 en
1.5 Technical data
(3) (4) (5)
1.20 1.98 0.90
(3.94) (6.50) (2.95)
0.70 0.70 0.70
(2.30) (2.30) (2.30)
0.76 0.76 0.45
(2.49) (2.49) (1.48)
685 1,600 465
(3,527) (1,025)
Overview
(6)
1.30
(4.27)
0.70
(2.30)
0.76
(2.49)
1,135
(2,502)
s
1 - 11
