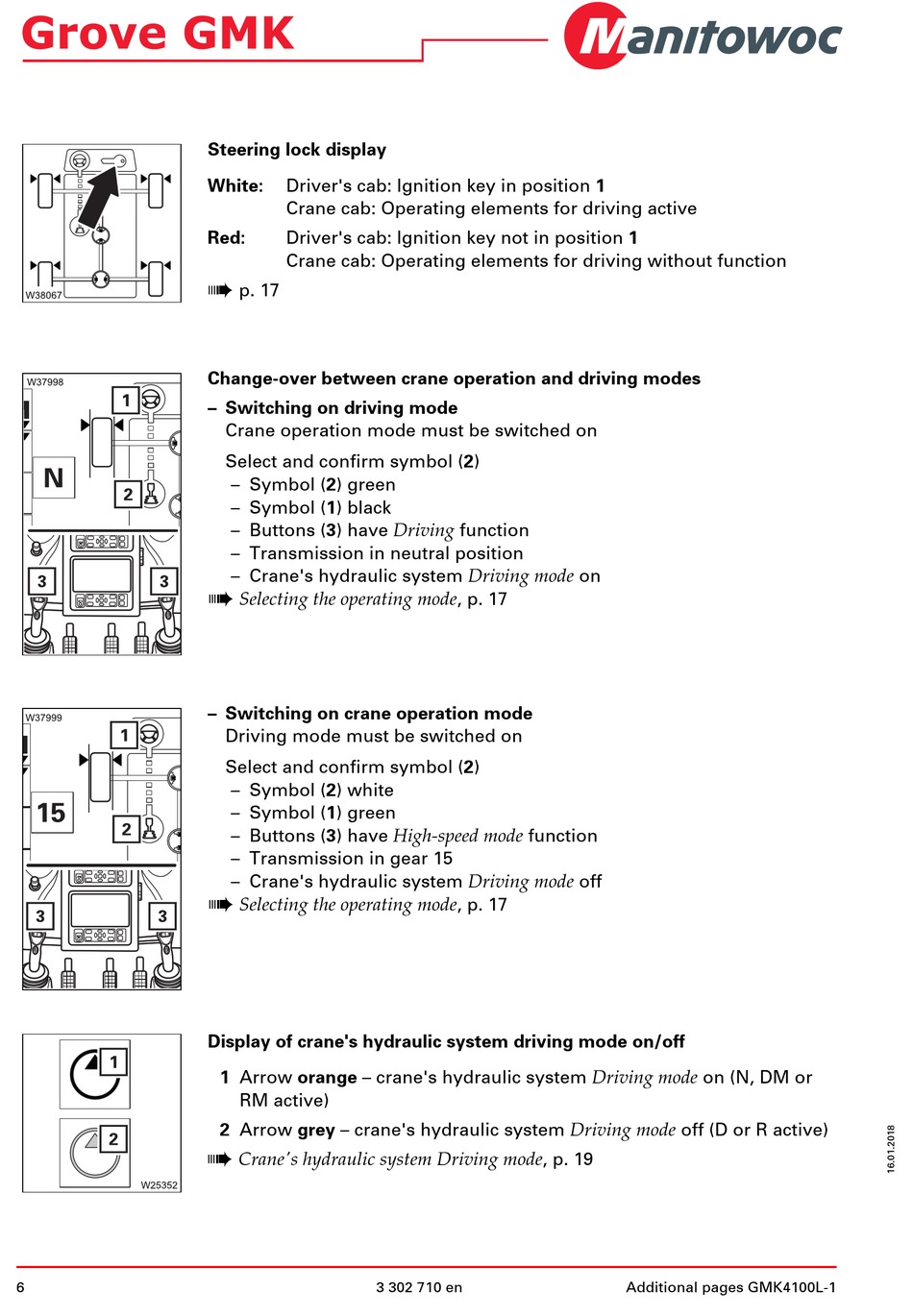

Steering lock display
White: Driver's cab: Ignition key in position 1
Crane cab: Operating elements for driving active
Red: Driver's cab: Ignition key not in position 1
Crane cab: Operating elements for driving without function
à
p. 17
Change-over between crane operation and driving modes
– Switching on driving mode
Crane operation mode must be switched on
Select and confirm symbol (2)
– Symbol (2) green
– Symbol (1) black
– Buttons (3) have Driving function
– Transmission in neutral position
– Crane's hydraulic system Driving mode on
à
Selecting the operating mode , p. 17
– Switching on crane operation mode
Driving mode must be switched on
Select and confirm symbol (2)
– Symbol (2) white
– Symbol (1) green
– Buttons (3) have High-speed mode function
– Transmission in gear 15
– Crane's hydraulic system Driving mode off
à
Selecting the operating mode , p. 17
Display of crane's hydraulic system driving mode on/off
1 Arrow orange – crane's hydraulic system Driving mode on (N, DM or
RM active)
2 Arrow grey – crane's hydraulic system Driving mode off (D or R active)
à
Crane's hydraulic system Driving mode , p. 19
