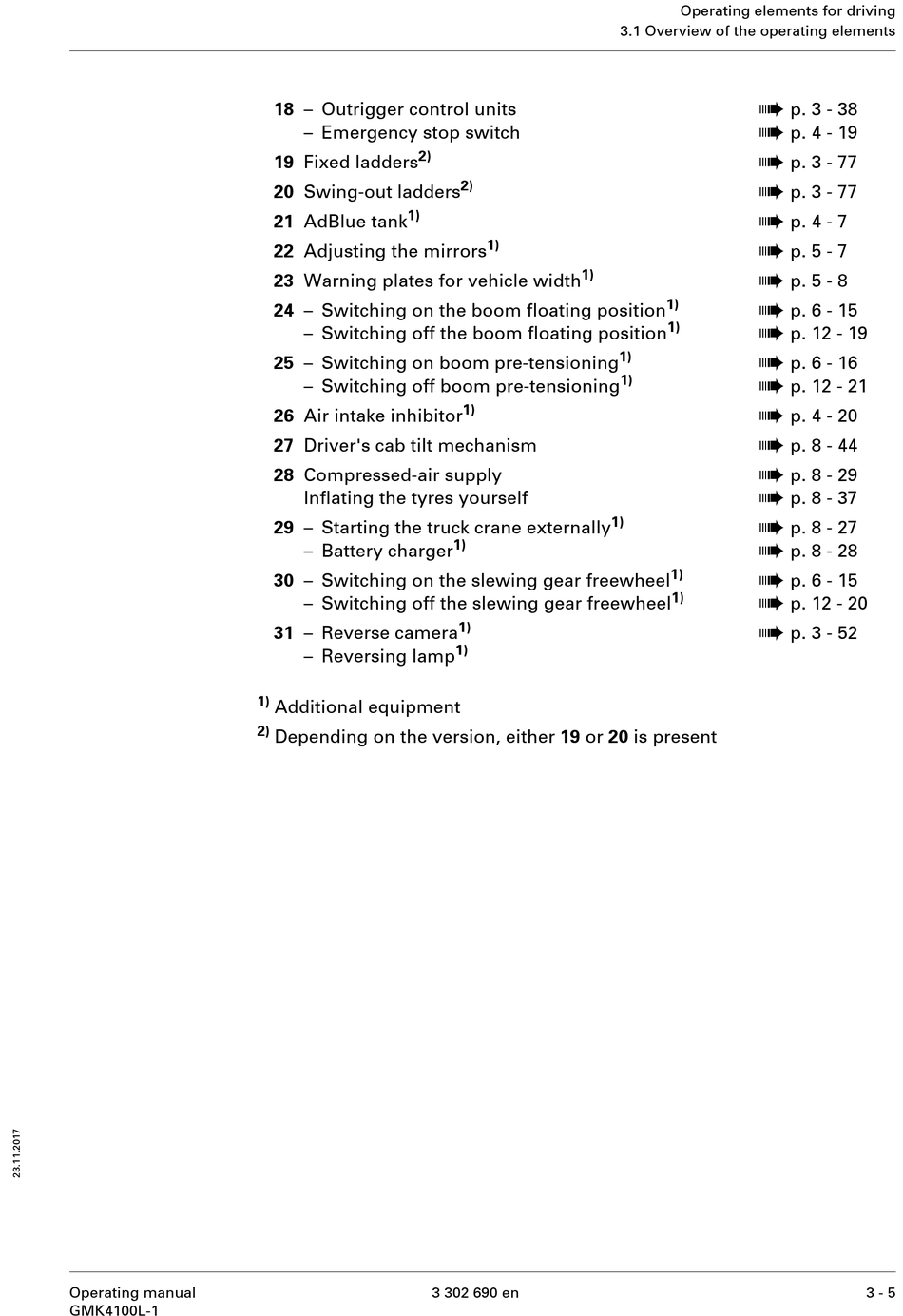

18 – Outrigger control units
– Emergency stop switch
2)
19 Fixed ladders
20 Swing-out ladders
1)
21 AdBlue tank
22 Adjusting the mirrors
23 Warning plates for vehicle width
24 – Switching on the boom floating position
– Switching off the boom floating position
25 – Switching on boom pre-tensioning
– Switching off boom pre-tensioning
26 Air intake inhibitor
27 Driver's cab tilt mechanism
28 Compressed-air supply
Inflating the tyres yourself
29 – Starting the truck crane externally
– Battery charger
30 – Switching on the slewing gear freewheel
– Switching off the slewing gear freewheel
31 – Reverse camera
– Reversing lamp
1)
Additional equipment
2)
Depending on the version, either 19 or 20 is present
2)
1)
1)
1)
1)
1)
1)
