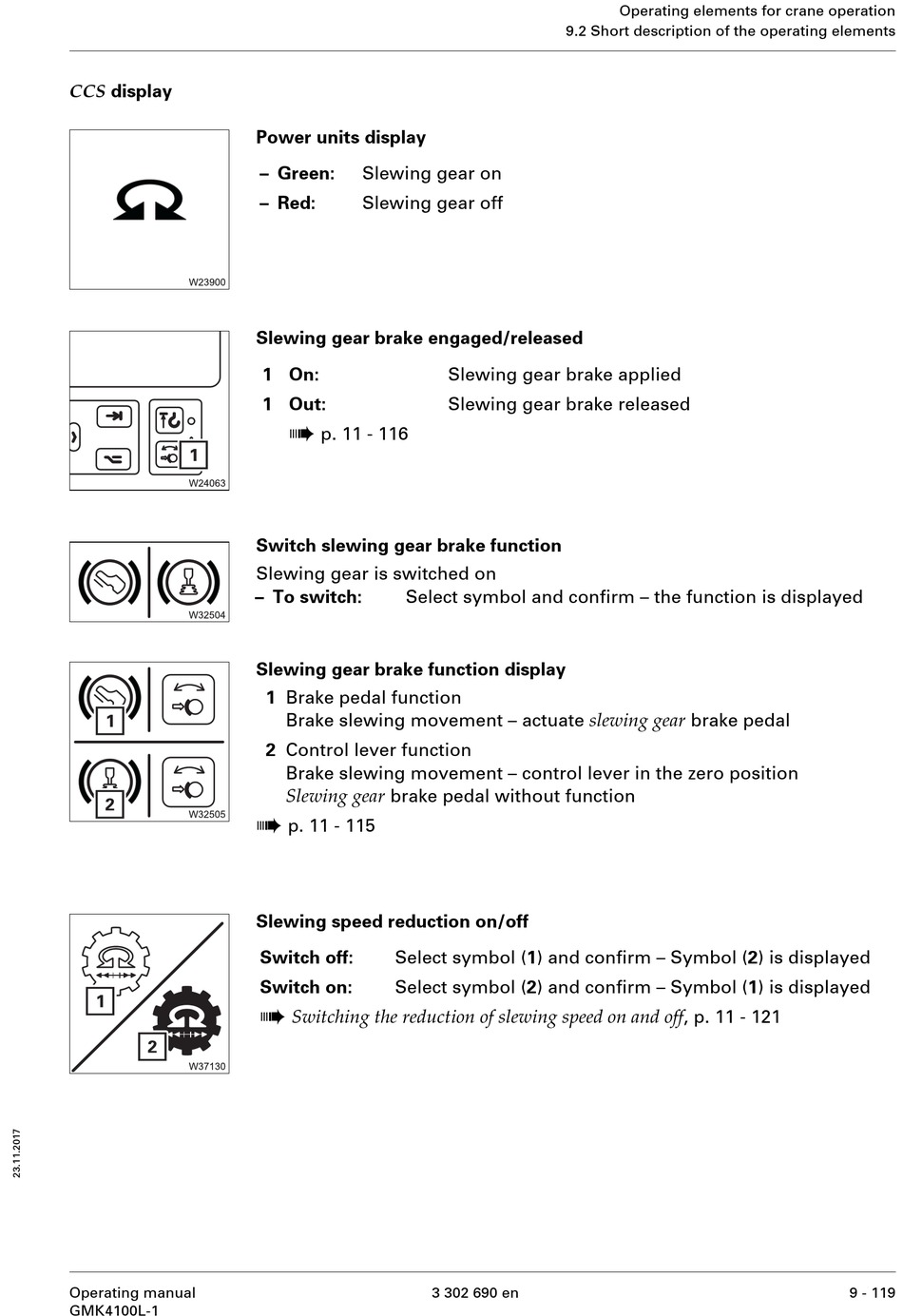

CCS display
Operating manual
GMK4100L-1
Power units display
– Green: Slewing gear on
– Red: Slewing gear off
Slewing gear brake engaged/released
1 On:
1 Out:
à
p. 11 - 116
Switch slewing gear brake function
Slewing gear is switched on
– To switch: Select symbol and confirm – the function is displayed
Slewing gear brake function display
1 Brake pedal function
Brake slewing movement – actuate slewing gear brake pedal
2 Control lever function
Brake slewing movement – control lever in the zero position
Slewing gear brake pedal without function
à
p. 11 - 115
Slewing speed reduction on/off
Switch off: Select symbol (1) and confirm – Symbol (2) is displayed
Switch on: Select symbol (2) and confirm – Symbol (1) is displayed
à
Switching the reduction of slewing speed on and off , p. 11 - 121
9.2 Short description of the operating elements
Slewing gear brake applied
Slewing gear brake released
