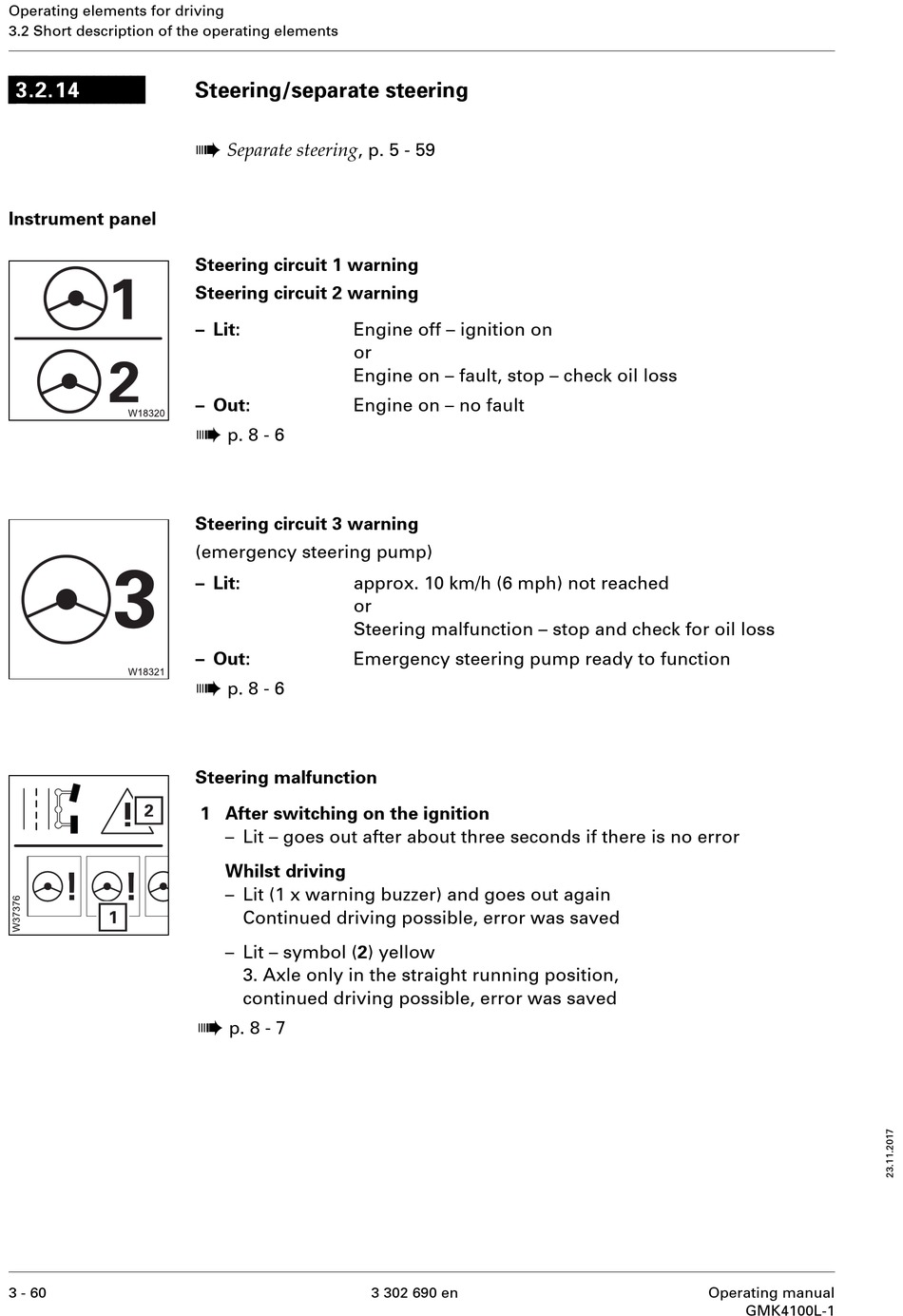

Steering/Separate Steering - Manitowoc Grove GMK4100L-1 Operating Manual

Operating elements for driving
3.2 Short description of the operating elements
3.2.14
Instrument panel
3 - 60

Steering/separate steering

à
Separate steering , p. 5 - 59
Steering circuit 1 warning
Steering circuit 2 warning
– Lit: Engine off – ignition on
or
Engine on – fault, stop – check oil loss
– Out: Engine on – no fault
à
p. 8 - 6
Steering circuit 3 warning
(emergency steering pump)
– Lit: approx. 10 km/h (6 mph) not reached
or
Steering malfunction – stop and check for oil loss
– Out: Emergency steering pump ready to function
à
p. 8 - 6
Steering malfunction
1 After switching on the ignition
– Lit – goes out after about three seconds if there is no error
Whilst driving
– Lit (1 x warning buzzer) and goes out again
Continued driving possible, error was saved
– Lit – symbol (2) yellow
3. Axle only in the straight running position,
continued driving possible, error was saved
à
p. 8 - 7
