Operating elements for driving

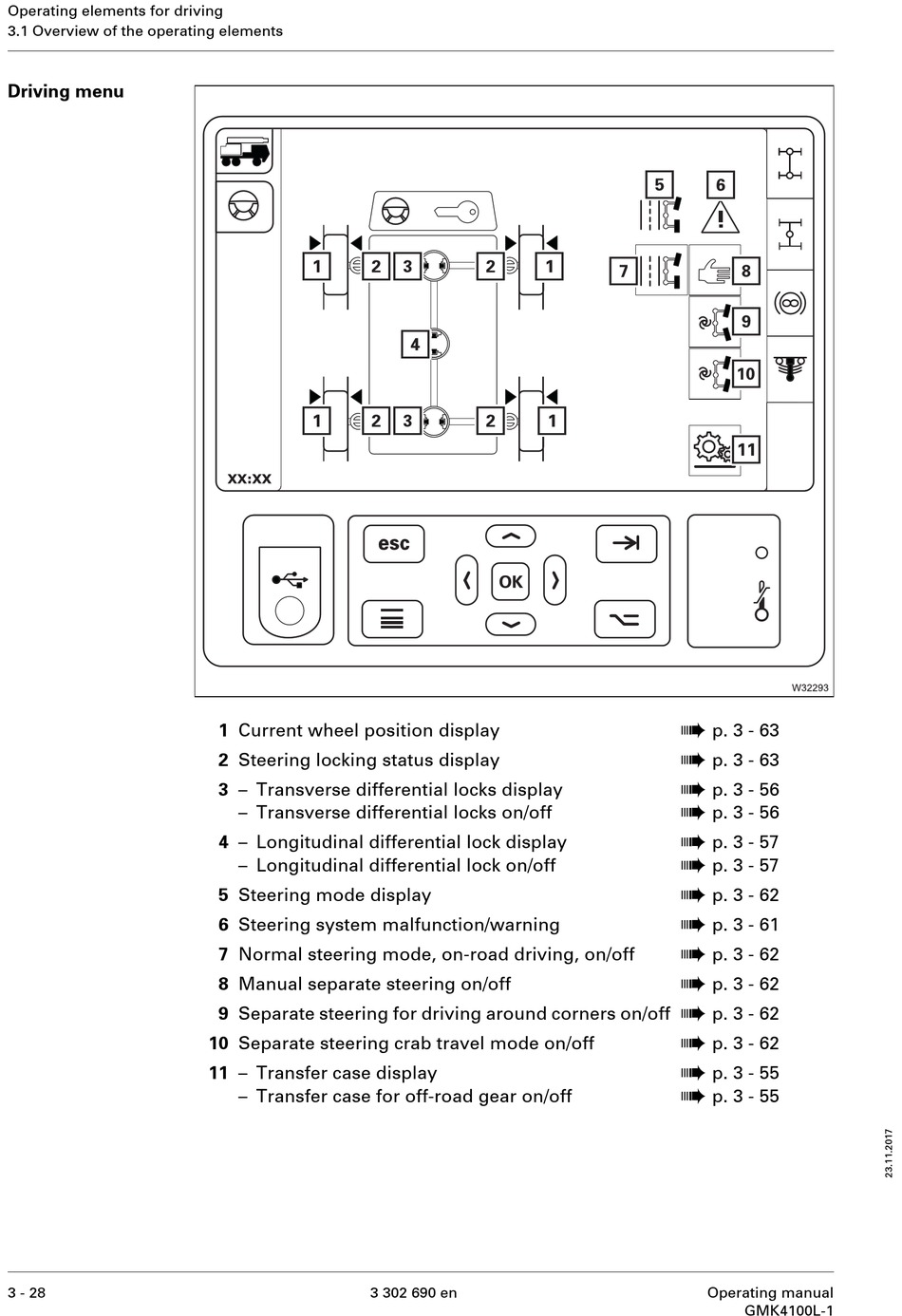

3.1 Overview of the operating elements
Driving menu
3 - 28
1 Current wheel position display
2 Steering locking status display
3 – Transverse differential locks display
– Transverse differential locks on/off
4 – Longitudinal differential lock display
– Longitudinal differential lock on/off
5 Steering mode display
6 Steering system malfunction/warning
7 Normal steering mode, on-road driving, on/off
8 Manual separate steering on/off
9 Separate steering for driving around corners on/off
10 Separate steering crab travel mode on/off
11 – Transfer case display
– Transfer case for off-road gear on/off
3 302 690 en
à
p. 3 - 63
à
p. 3 - 63
à
p. 3 - 56
à
p. 3 - 56
à
p. 3 - 57
à
p. 3 - 57
à
p. 3 - 62
à
p. 3 - 61
à
p. 3 - 62
à
p. 3 - 62
à
p. 3 - 62
à
p. 3 - 62
à
p. 3 - 55
à
p. 3 - 55
Operating manual
GMK4100L-1
