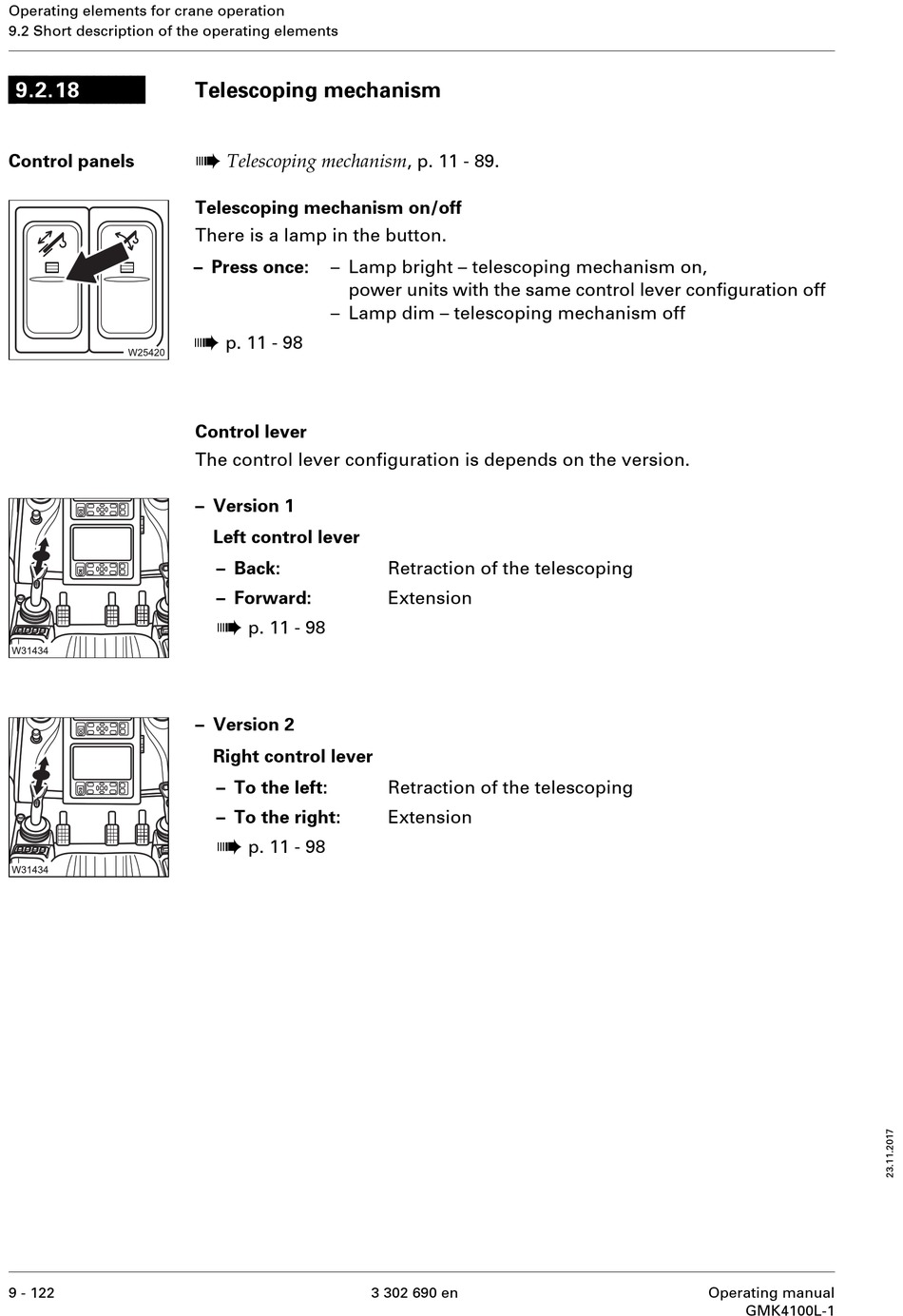

Telescoping Mechanism - Manitowoc Grove GMK4100L-1 Operating Manual

Operating elements for crane operation
9.2 Short description of the operating elements
9.2.18
Control panels
9 - 122

Telescoping mechanism

à
Telescoping mechanism , p. 11 - 89.
Telescoping mechanism on/off
There is a lamp in the button.
– Press once: – Lamp bright – telescoping mechanism on,
power units with the same control lever configuration off
– Lamp dim – telescoping mechanism off
à
p. 11 - 98
Control lever
The control lever configuration is depends on the version.
– Version 1
Left control lever
– Back:
– Forward:
à
p. 11 - 98
– Version 2
Right control lever
– To the left:
– To the right:
à
p. 11 - 98
Retraction of the telescoping
Extension
Retraction of the telescoping
Extension
3 302 690 en Operating manual
GMK4100L-1
