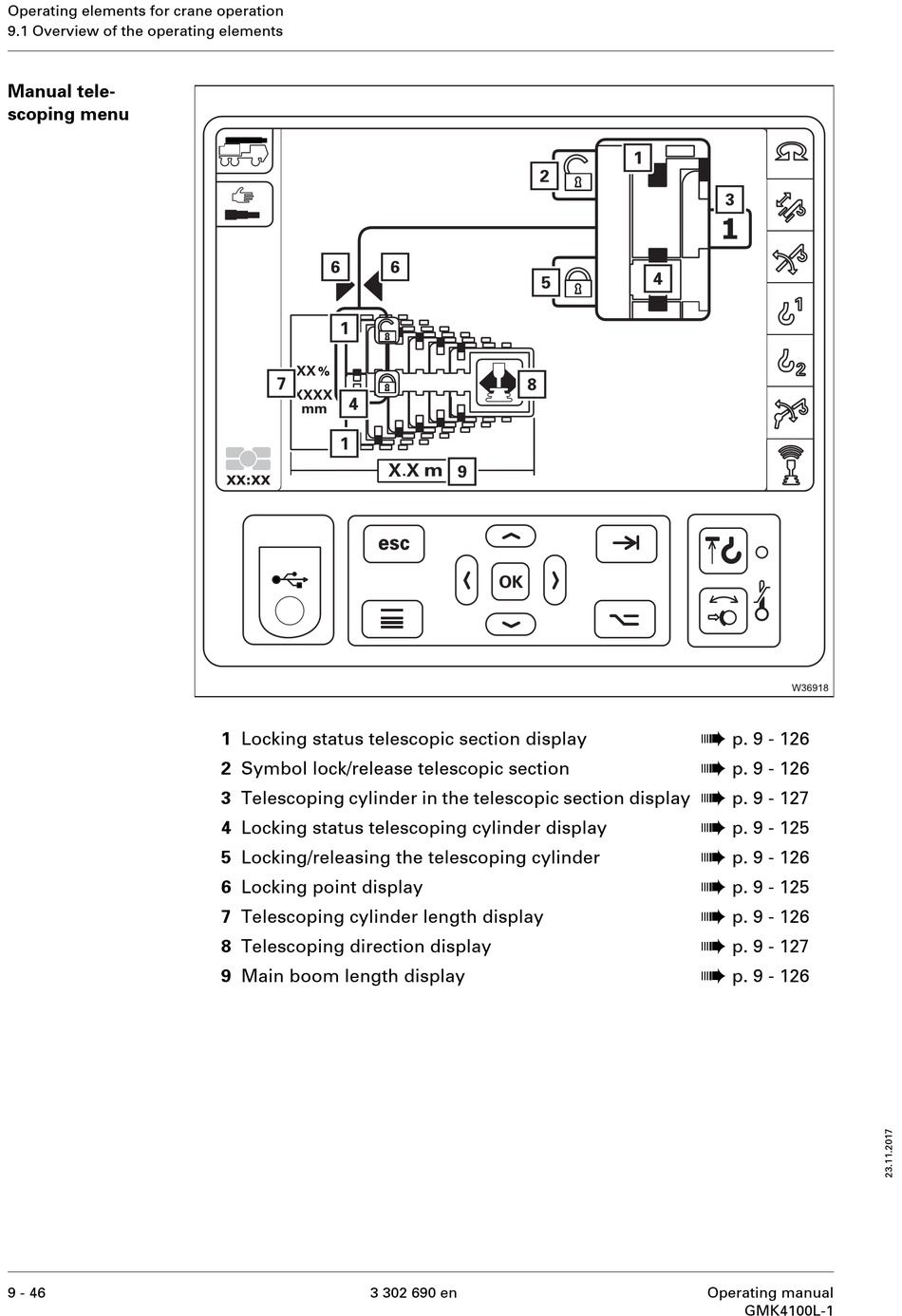

Operating elements for crane operation
9.1 Overview of the operating elements
Manual tele-
scoping menu
9 - 46
1 Locking status telescopic section display
2 Symbol lock/release telescopic section
3 Telescoping cylinder in the telescopic section display
4 Locking status telescoping cylinder display
5 Locking/releasing the telescoping cylinder
6 Locking point display
7 Telescoping cylinder length display
8 Telescoping direction display
9 Main boom length display
3 302 690 en
à
p. 9 - 126
à
p. 9 - 126
à
p. 9 - 127
à
p. 9 - 125
à
p. 9 - 126
à
p. 9 - 125
à
p. 9 - 126
à
p. 9 - 127
à
p. 9 - 126
