Crane operation
11.4 Operation of the rated capacity limiter
11.4.1
Switching on
G
11 - 30

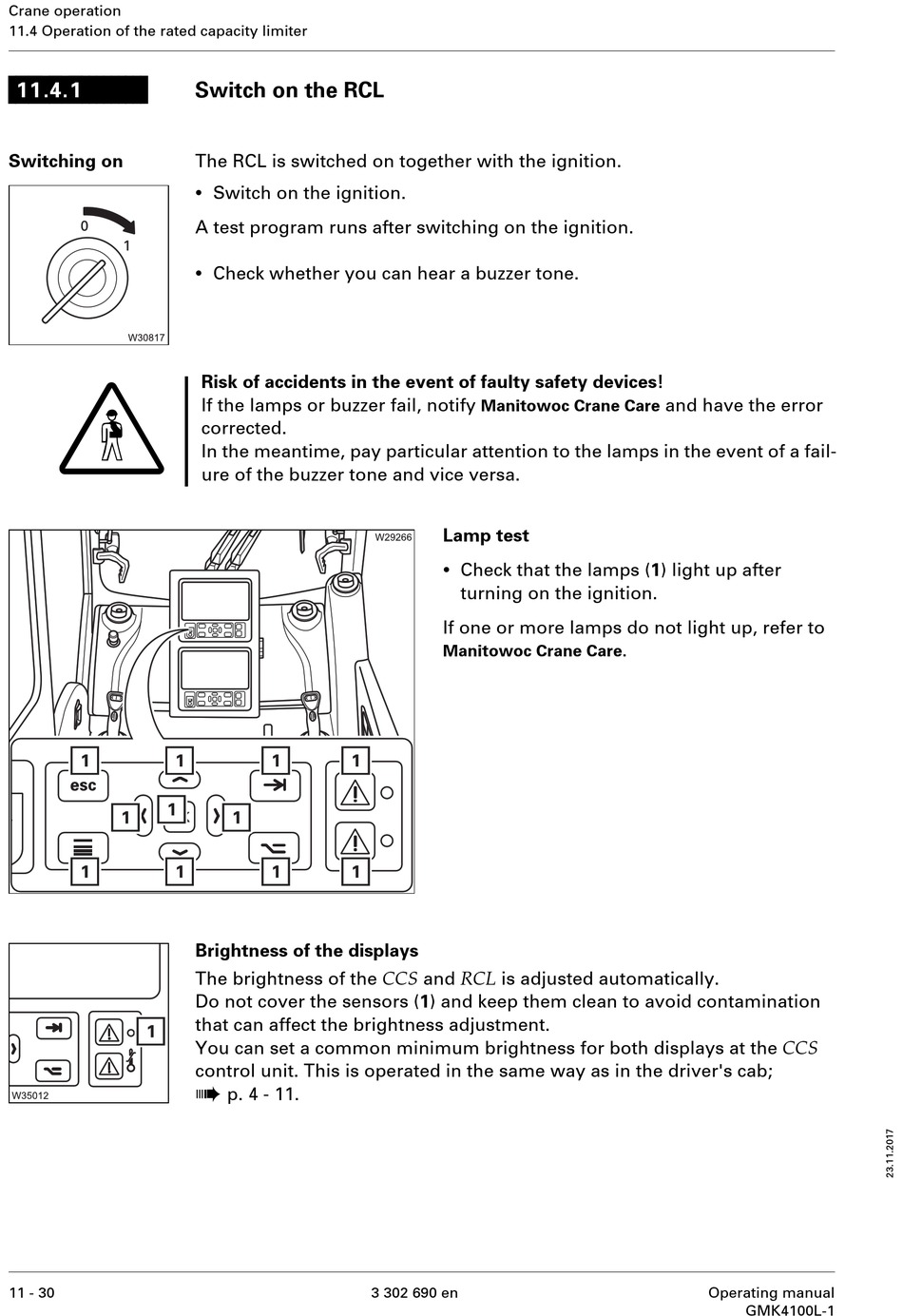

Switch on the RCL

The RCL is switched on together with the ignition.
•
Switch on the ignition.
A test program runs after switching on the ignition.
•
Check whether you can hear a buzzer tone.
Risk of accidents in the event of faulty safety devices!
If the lamps or buzzer fail, notify
corrected.
In the meantime, pay particular attention to the lamps in the event of a fail-
ure of the buzzer tone and vice versa.
Brightness of the displays
The brightness of the CCS and RCL is adjusted automatically.
Do not cover the sensors (1) and keep them clean to avoid contamination
that can affect the brightness adjustment.
You can set a common minimum brightness for both displays at the CCS
control unit. This is operated in the same way as in the driver's cab;
à
p. 4 - 11.
Manitowoc Crane Care
Lamp test
•
Check that the lamps (1) light up after
turning on the ignition.
If one or more lamps do not light up, refer to
Manitowoc Crane Care
3 302 690 en
and have the error
.
Operating manual
GMK4100L-1
