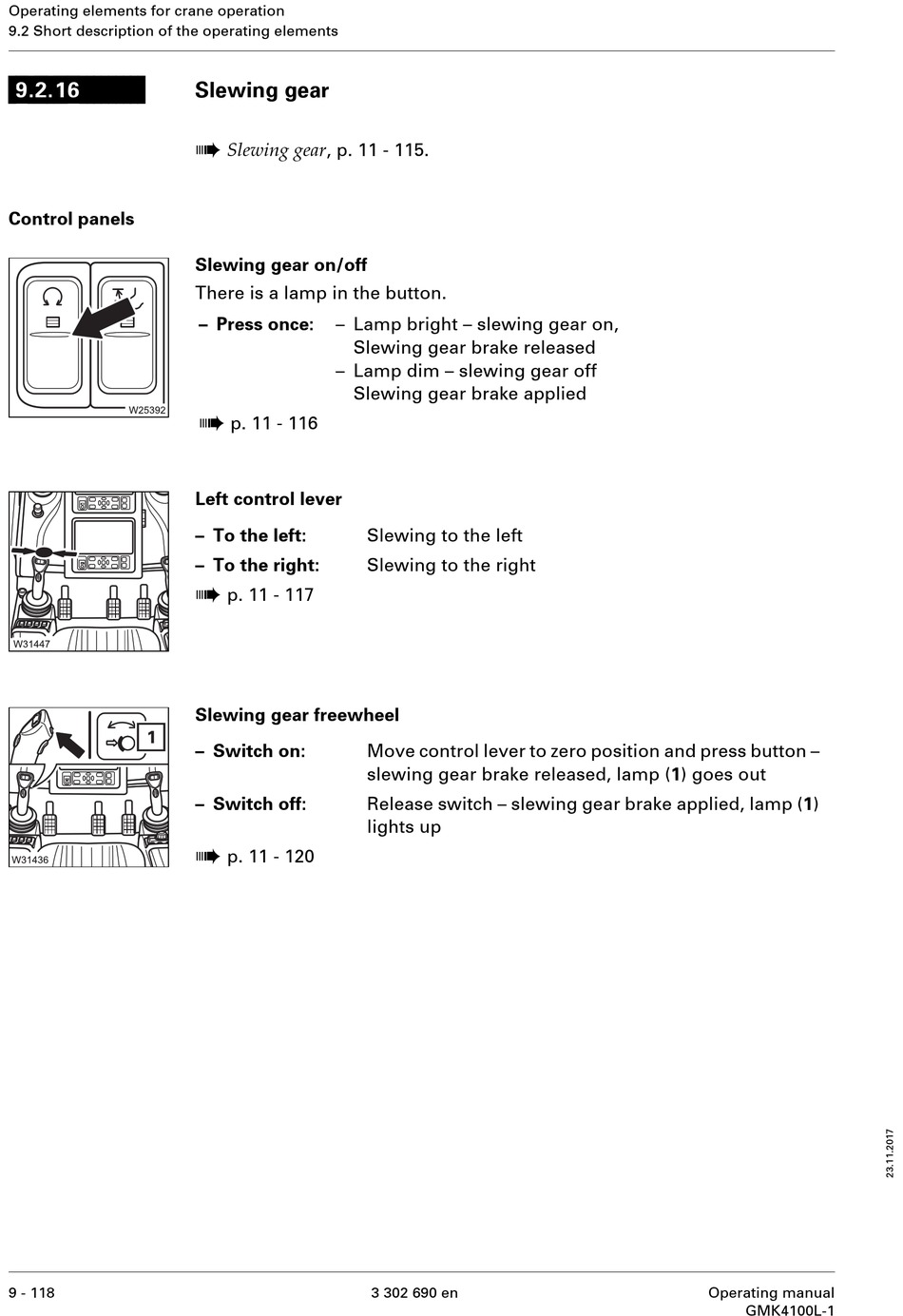

Slewing Gear - Manitowoc Grove GMK4100L-1 Operating Manual

Operating elements for crane operation
9.2 Short description of the operating elements
9.2.16
Control panels
9 - 118

Slewing gear

à
Slewing gear , p. 11 - 115.
Slewing gear on/off
There is a lamp in the button.
– Press once: – Lamp bright – slewing gear on,
Slewing gear brake released
– Lamp dim – slewing gear off
Slewing gear brake applied
à
p. 11 - 116
Left control lever
– To the left:
– To the right:
à
p. 11 - 117
Slewing gear freewheel
– Switch on:
– Switch off:
à
p. 11 - 120
Slewing to the left
Slewing to the right
Move control lever to zero position and press button –
slewing gear brake released, lamp (1) goes out
Release switch – slewing gear brake applied, lamp (1)
lights up
3 302 690 en Operating manual
GMK4100L-1
