Overview
1.5 Technical data
Steering
Tyres

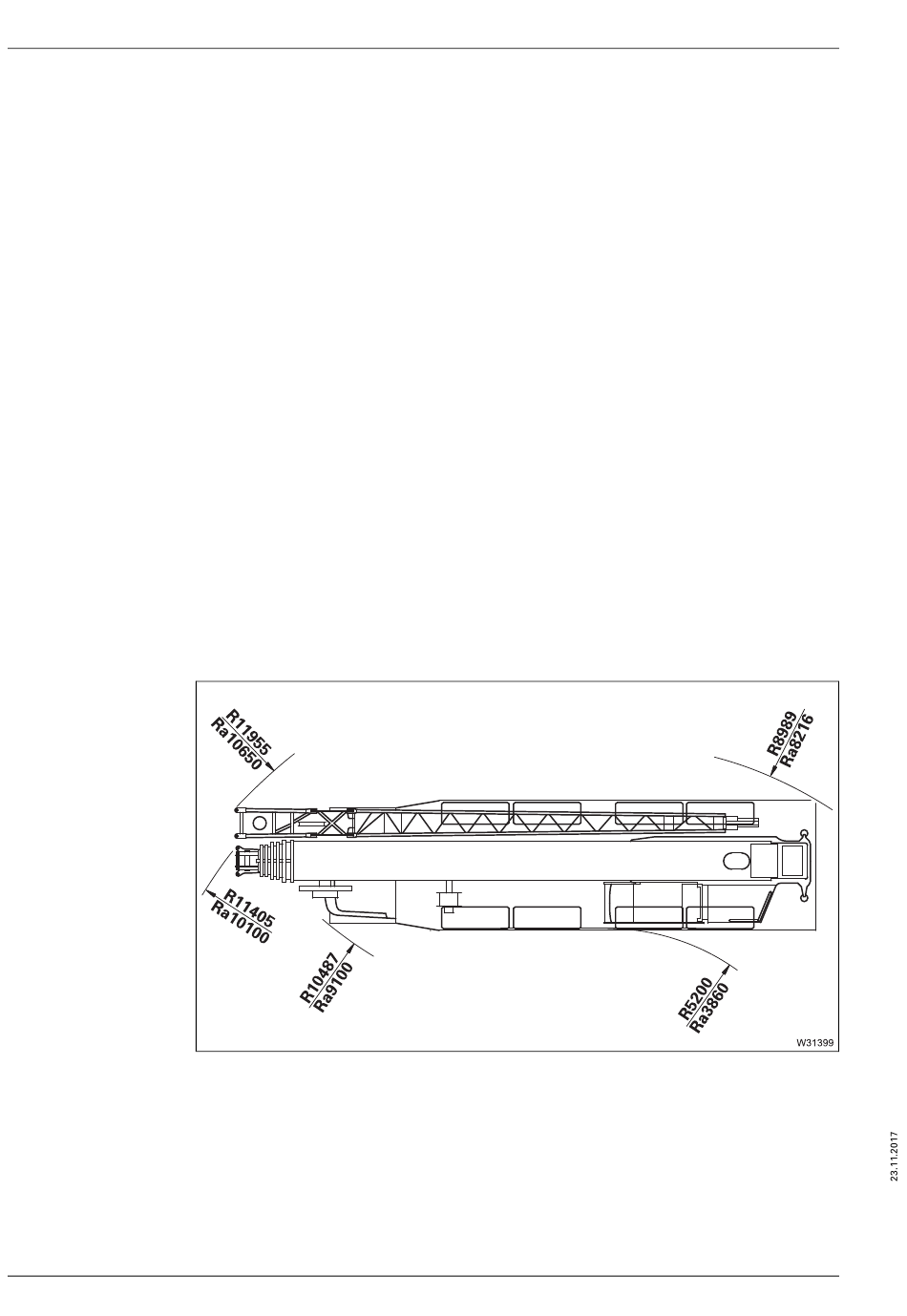

Turning turning
radii
1 - 16
Dual-circuit hydraulic steering with engine-independent emergency steer-
ing pump
8 x 385/95 R 25 on disc wheels 9.50-25/1.7
1)
8 x 445/95 R 25 on disc wheels 11.00-25/1.7
1)
8 x 525/80 R 25 on disc wheels 17.00-25/1.7
1)
Additional equipment
Torque for wheel nuts: 650 Nm (480 lbf ft).
Tyre pressure with cold tyres for axle loads up to max. 12 t
385/95 R25:
445/95 R25:
525/80 R25:
All dimensions in the illustration are in mm.
R = values for normal steering mode
Ra = values for all-wheel steering
10 bar (145 psi)
9 bar (131 psi)
7 bar (102 psi)
