Operating manual
GMK4100L-1
If the symbols (5) are yellow:
Steer using the buttons (1) or (2) until the symbols (5) turn red.
If the error symbol is displayed, contact

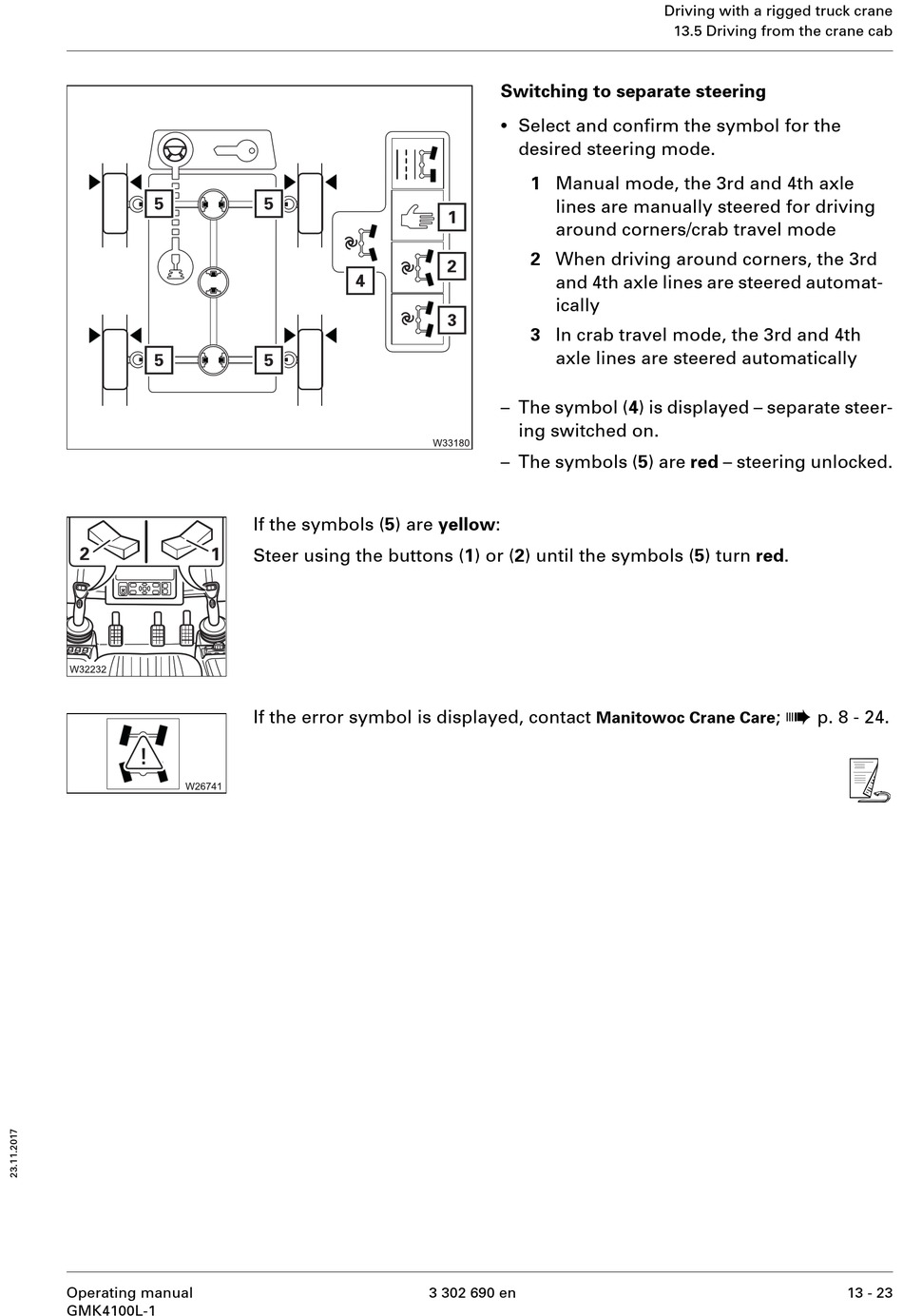

Switching to separate steering
•
Select and confirm the symbol for the
desired steering mode.
1 Manual mode, the 3rd and 4th axle
lines are manually steered for driving
around corners/crab travel mode
2 When driving around corners, the 3rd
and 4th axle lines are steered automat-
ically
3 In crab travel mode, the 3rd and 4th
axle lines are steered automatically
– The symbol (4) is displayed – separate steer-
ing switched on.
– The symbols (5) are red – steering unlocked.
Manitowoc Crane Care
3 302 690 en
Driving with a rigged truck crane
13.5 Driving from the crane cab
à
; p. 8 - 24.
s
13 - 23
