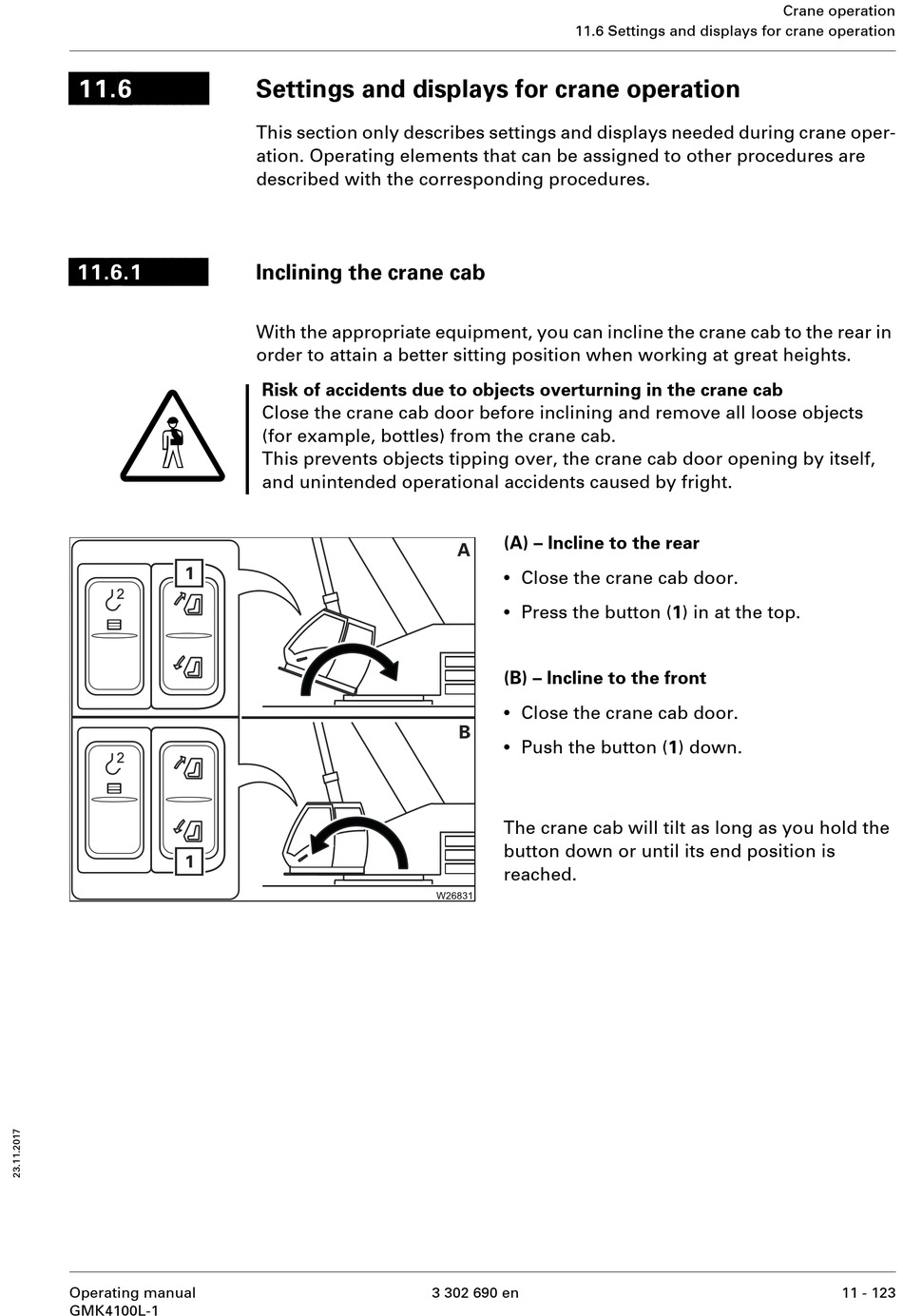

Settings and displays for crane operation

This section only describes settings and displays needed during crane oper-
ation. Operating elements that can be assigned to other procedures are
described with the corresponding procedures.

Inclining the crane cab

With the appropriate equipment, you can incline the crane cab to the rear in
order to attain a better sitting position when working at great heights.
Risk of accidents due to objects overturning in the crane cab
Close the crane cab door before inclining and remove all loose objects
(for example, bottles) from the crane cab.
This prevents objects tipping over, the crane cab door opening by itself,
and unintended operational accidents caused by fright.
11.6 Settings and displays for crane operation
(A) – Incline to the rear
•
Close the crane cab door.
•
Press the button (1) in at the top.
(B) – Incline to the front
•
Close the crane cab door.
•
Push the button (1) down.
The crane cab will tilt as long as you hold the
button down or until its end position is
reached.
