11.7.6
G
Operating manual
GMK4100L-1

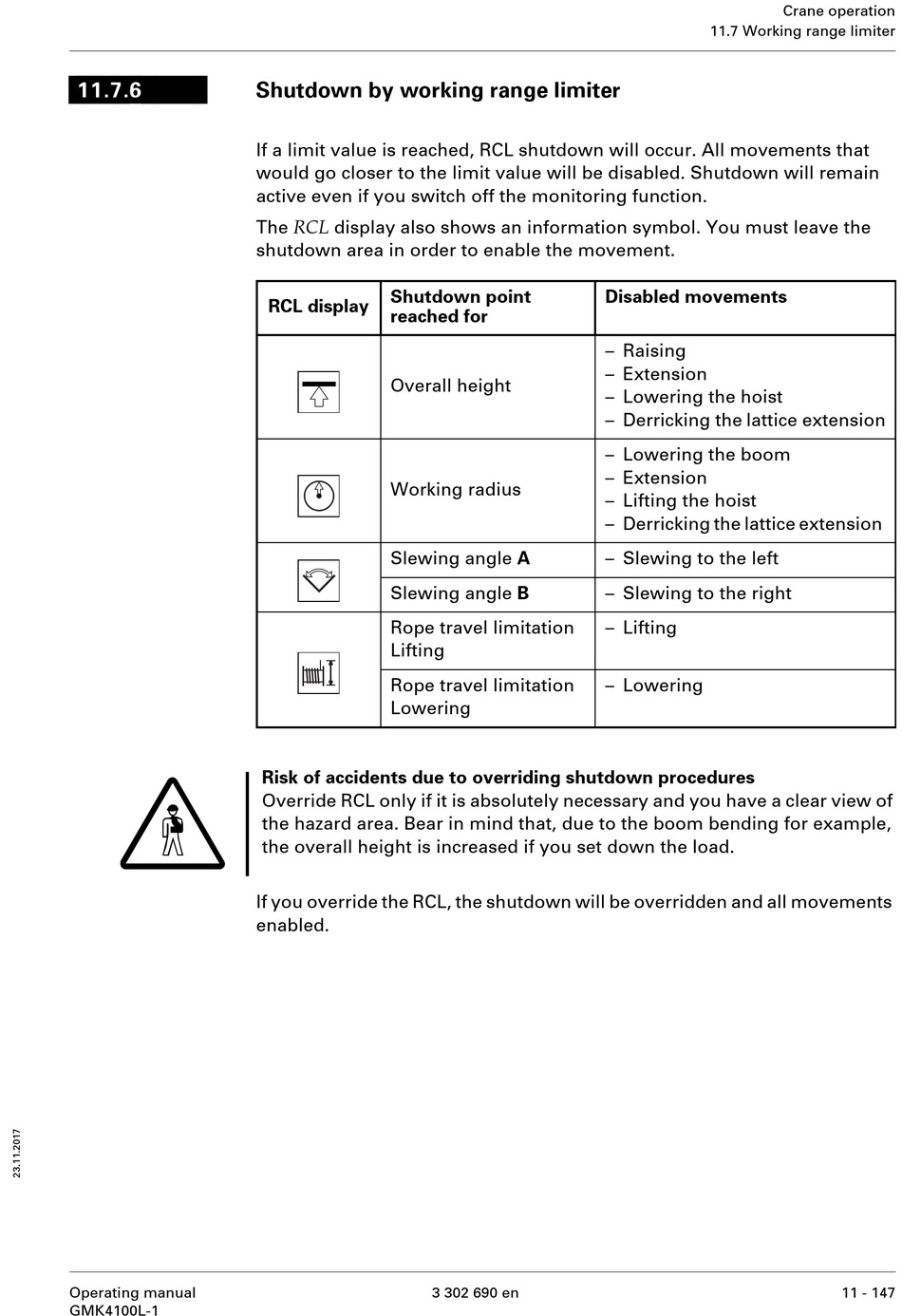

Shutdown by working range limiter

If a limit value is reached, RCL shutdown will occur. All movements that
would go closer to the limit value will be disabled. Shutdown will remain
active even if you switch off the monitoring function.
The RCL display also shows an information symbol. You must leave the
shutdown area in order to enable the movement.
Shutdown point
RCL display
reached for
Overall height
Working radius
Slewing angle A
Slewing angle B
Rope travel limitation
Lifting
Rope travel limitation
Lowering
Risk of accidents due to overriding shutdown procedures
Override RCL only if it is absolutely necessary and you have a clear view of
the hazard area. Bear in mind that, due to the boom bending for example,
the overall height is increased if you set down the load.
If you override the RCL, the shutdown will be overridden and all movements
enabled.
3 302 690 en
11.7 Working range limiter
Disabled movements
– Raising
– Extension
– Lowering the hoist
– Derricking the lattice extension
– Lowering the boom
– Extension
– Lifting the hoist
– Derricking the lattice extension
– Slewing to the left
– Slewing to the right
– Lifting
– Lowering
Crane operation
11 - 147
