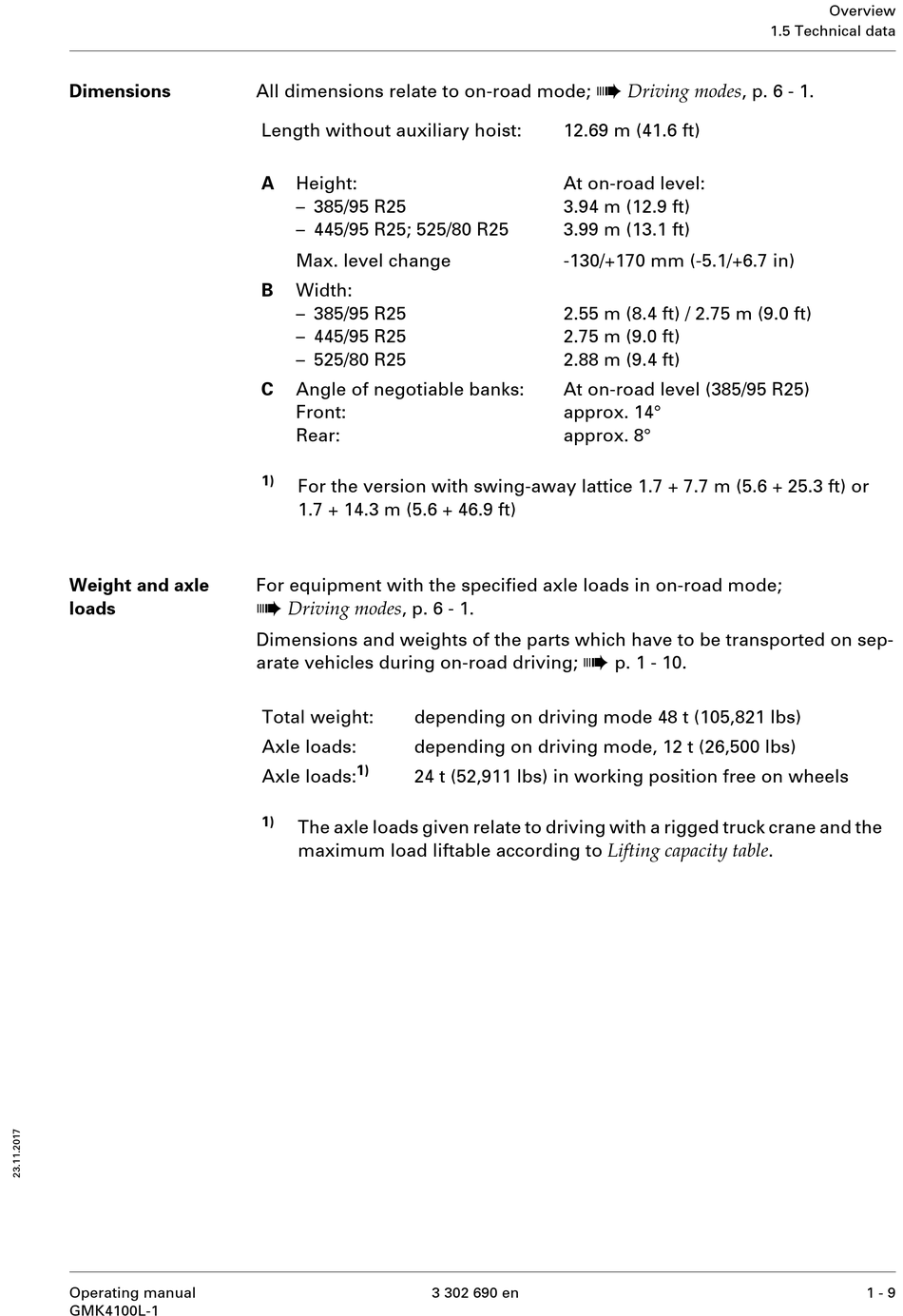

Dimensions
Weight and axle
loads
Operating manual
GMK4100L-1
All dimensions relate to on-road mode;
Length without auxiliary hoist:
A Height:
– 385/95 R25
– 445/95 R25; 525/80 R25
Max. level change
B Width:
– 385/95 R25
– 445/95 R25
– 525/80 R25
C Angle of negotiable banks:
Front:
Rear:
1)
For the version with swing-away lattice 1.7 + 7.7 m (5.6 + 25.3 ft) or
1.7 + 14.3 m (5.6 + 46.9 ft)
For equipment with the specified axle loads in on-road mode;
à
Driving modes , p. 6 - 1.
Dimensions and weights of the parts which have to be transported on sep-
arate vehicles during on-road driving;
Total weight: depending on driving mode 48 t (105,821 lbs)
Axle loads: depending on driving mode, 12 t (26,500 lbs)
1)
Axle loads: 24 t (52,911 lbs) in working position free on wheels
1)
The axle loads given relate to driving with a rigged truck crane and the
maximum load liftable according to Lifting capacity table .
à
12.69 m (41.6 ft)
At on-road level:
3.94 m (12.9 ft)
3.99 m (13.1 ft)
-130/+170 mm (-5.1/+6.7 in)
2.55 m (8.4 ft) / 2.75 m (9.0 ft)
2.75 m (9.0 ft)
2.88 m (9.4 ft)
At on-road level (385/95 R25)
approx. 14°
approx. 8°
à
3 302 690 en
1.5 Technical data
Driving modes , p. 6 - 1.
p. 1 - 10.
Overview
1 - 9
