Driving
5.4 Off-road driving
Setting the
on-road level
Pre-selecting
suspension struts
5 - 54
For on-road driving, you must always set the on-road level in order to
adhere to the specified overall height.
•
Park the truck crane on a level surface.
•
Straighten the steering.
You can pre-select the suspension struts for five different level changes.
•

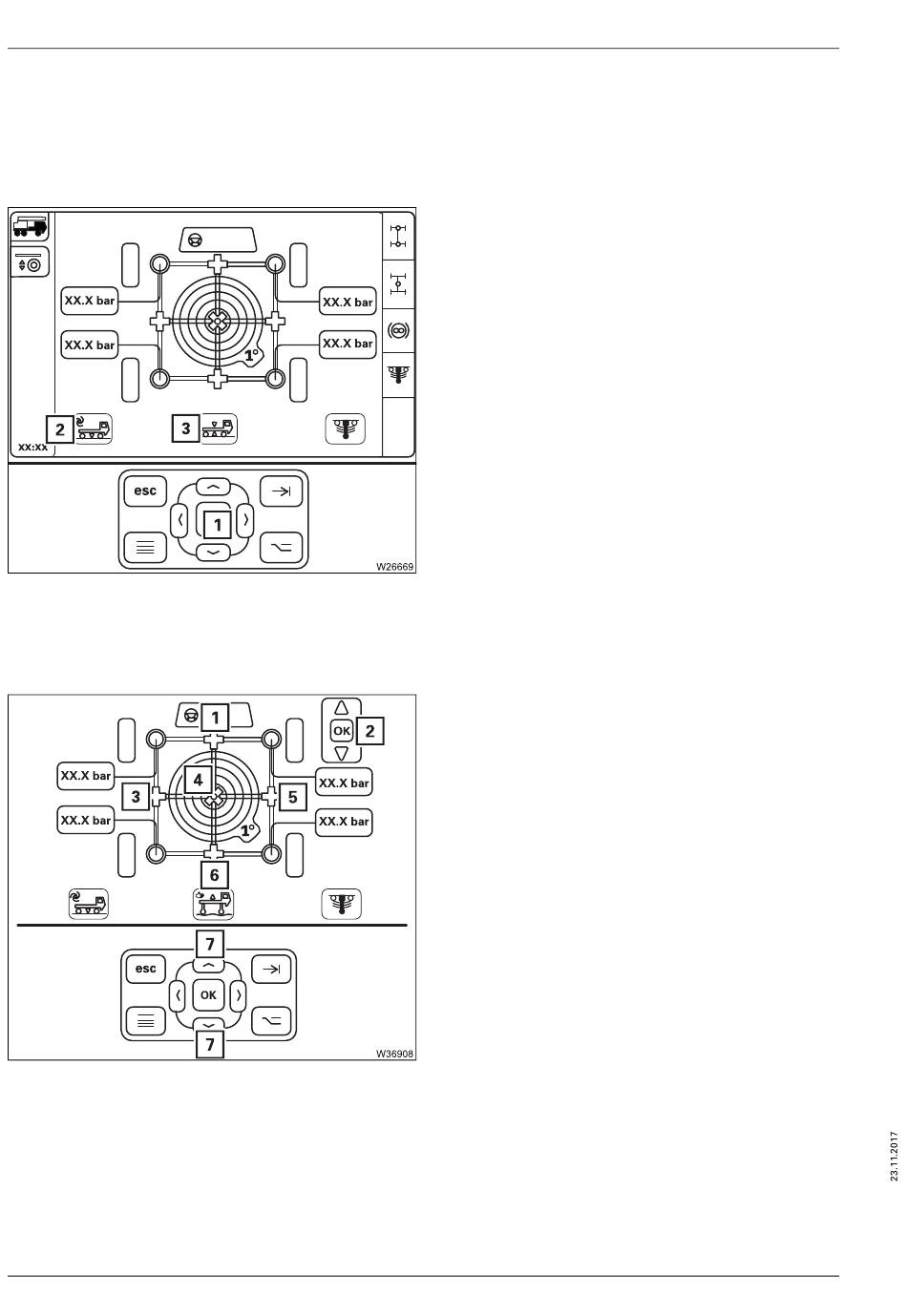

Select the symbol (2) – symbol is orange.
•
Press the button (1) until the symbol (3) is
displayed – on-road level has been reached.
– For a uniform level change
4 Overall level – all suspension struts
– For inclination
1 Front level – suspension strut for the
1st and 2nd axle lines
3 Left level – all suspension struts on the
left
5 Right level – all suspension struts on
the right
6 Rear level – suspension struts for the
3rd and 4th axle lines
•
Select and confirm the desired symbol – the
symbol turns orange and the symbol (2) is
also displayed.
Now the vehicle level can be changed with
the (7) button.
