Driving with a rigged truck crane

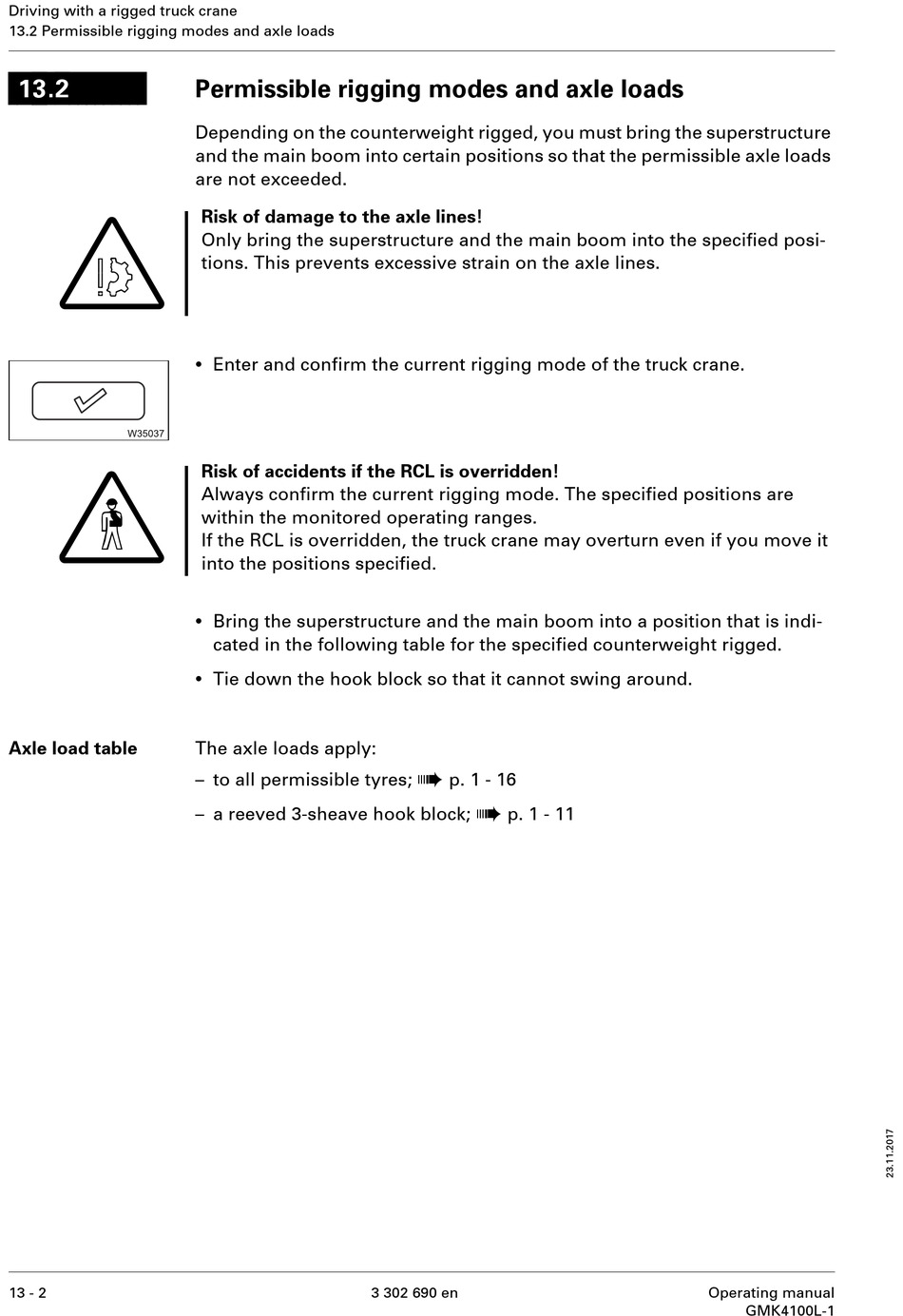

13.2 Permissible rigging modes and axle loads

13.2
S
G
Axle load table
13 - 2
Permissible rigging modes and axle loads
Depending on the counterweight rigged, you must bring the superstructure
and the main boom into certain positions so that the permissible axle loads
are not exceeded.
Risk of damage to the axle lines!
Only bring the superstructure and the main boom into the specified posi-
tions. This prevents excessive strain on the axle lines.
•
Enter and confirm the current rigging mode of the truck crane.
Risk of accidents if the RCL is overridden!
Always confirm the current rigging mode. The specified positions are
within the monitored operating ranges.
If the RCL is overridden, the truck crane may overturn even if you move it
into the positions specified.
•
Bring the superstructure and the main boom into a position that is indi-
cated in the following table for the specified counterweight rigged.
•
Tie down the hook block so that it cannot swing around.
The axle loads apply:
– to all permissible tyres;
– a reeved 3-sheave hook block;
à
p. 1 - 16
à
p. 1 - 11
3 302 690 en Operating manual
GMK4100L-1
