6.4.7
Operating manual
GMK4100L-1

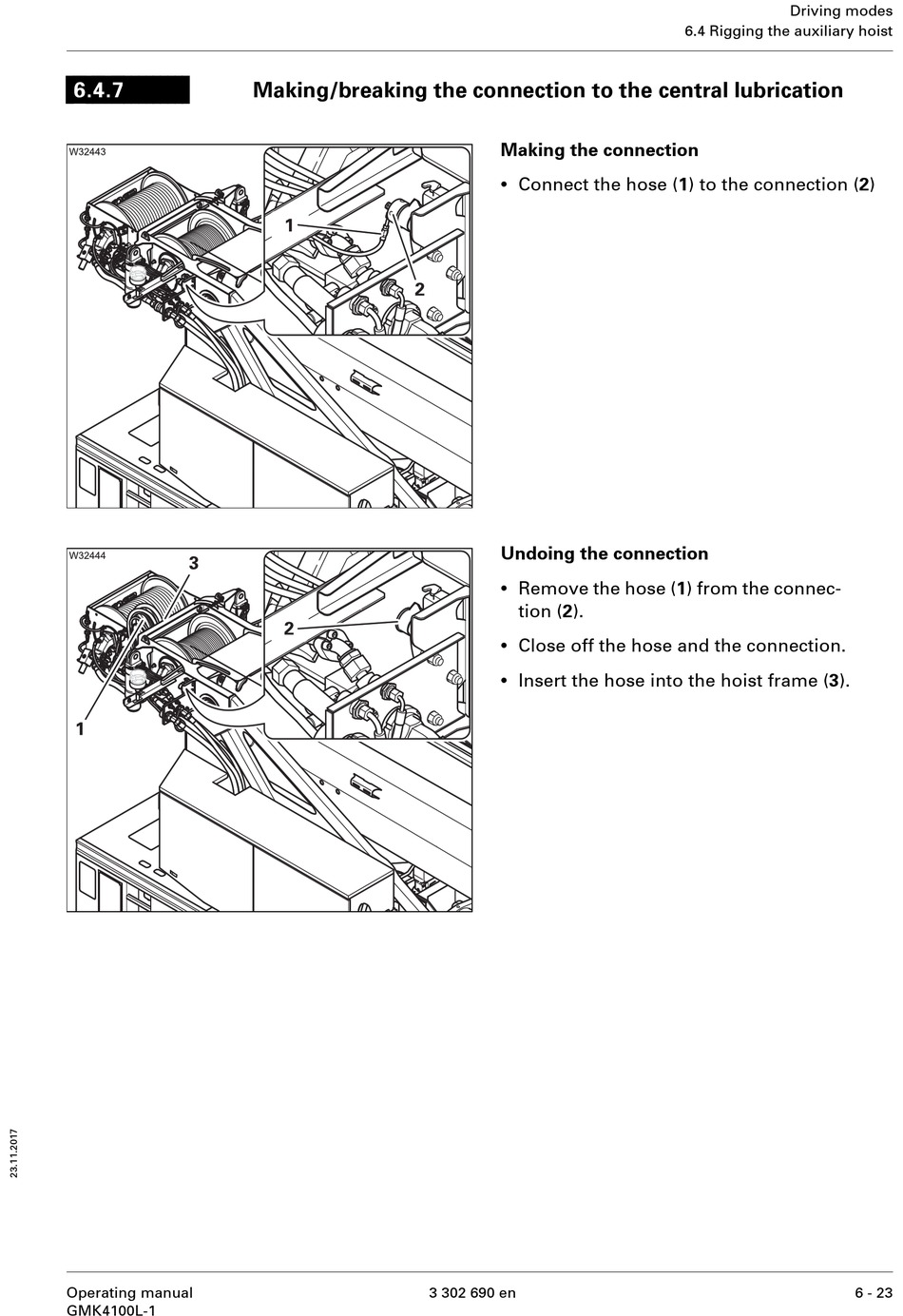

Making/breaking the connection to the central lubrication

Making the connection
•
Connect the hose (1) to the connection (2)
Undoing the connection
•
Remove the hose (1) from the connec-
tion (2).
•
Close off the hose and the connection.
•
Insert the hose into the hoist frame (3).
3 302 690 en
Driving modes
6.4 Rigging the auxiliary hoist
6 - 23
