Operating elements for crane operation

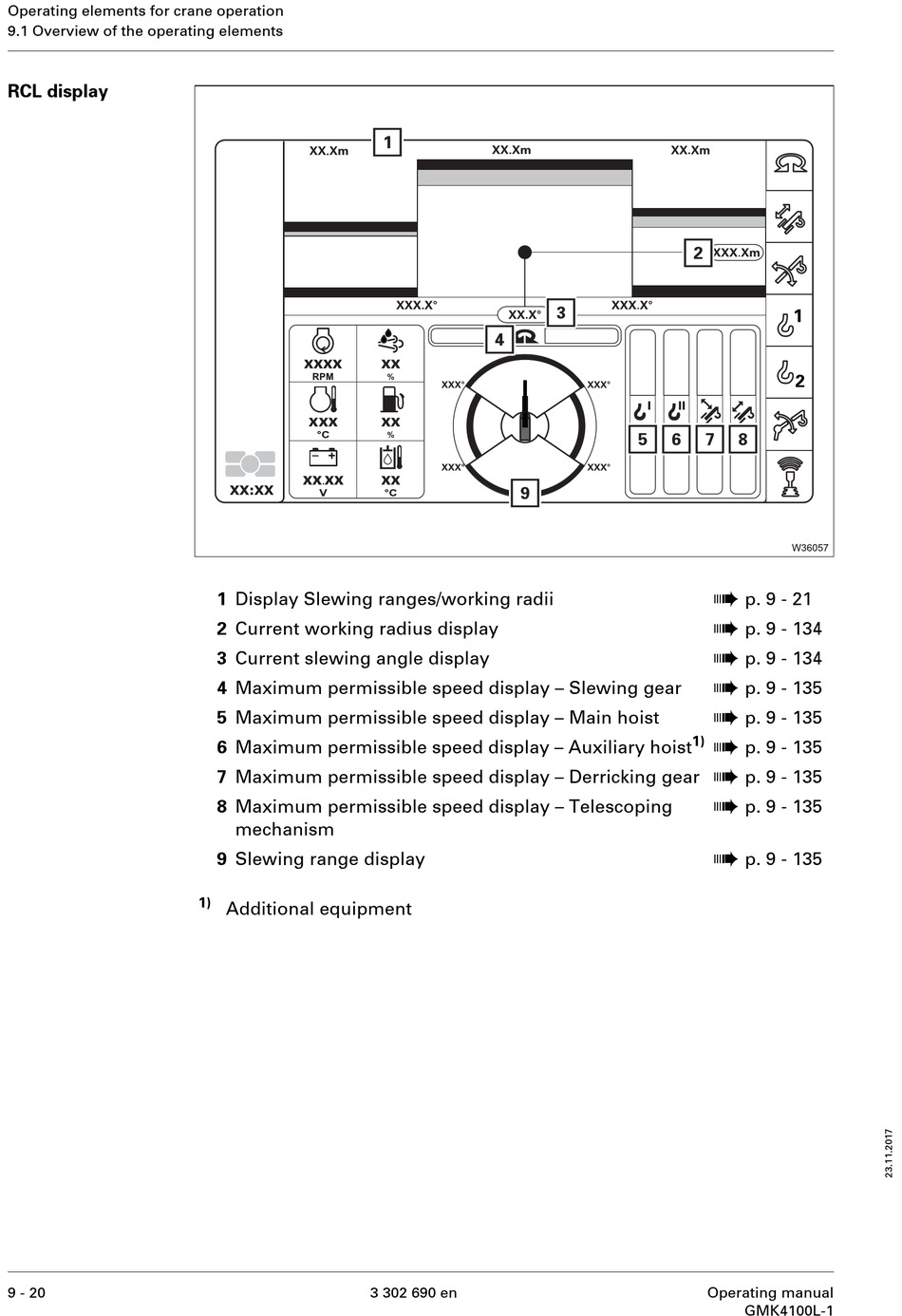

9.1 Overview of the operating elements
RCL display
9 - 20
1 Display Slewing ranges/working radii
2 Current working radius display
3 Current slewing angle display
4 Maximum permissible speed display – Slewing gear
5 Maximum permissible speed display – Main hoist
6 Maximum permissible speed display – Auxiliary hoist
7 Maximum permissible speed display – Derricking gear
8 Maximum permissible speed display – Telescoping
mechanism
9 Slewing range display
1)
Additional equipment
3 302 690 en
à
p. 9 - 21
à
p. 9 - 134
à
p. 9 - 134
à
p. 9 - 135
à
p. 9 - 135
à
1)
p. 9 - 135
à
p. 9 - 135
à
p. 9 - 135
à
p. 9 - 135
Operating manual
GMK4100L-1
