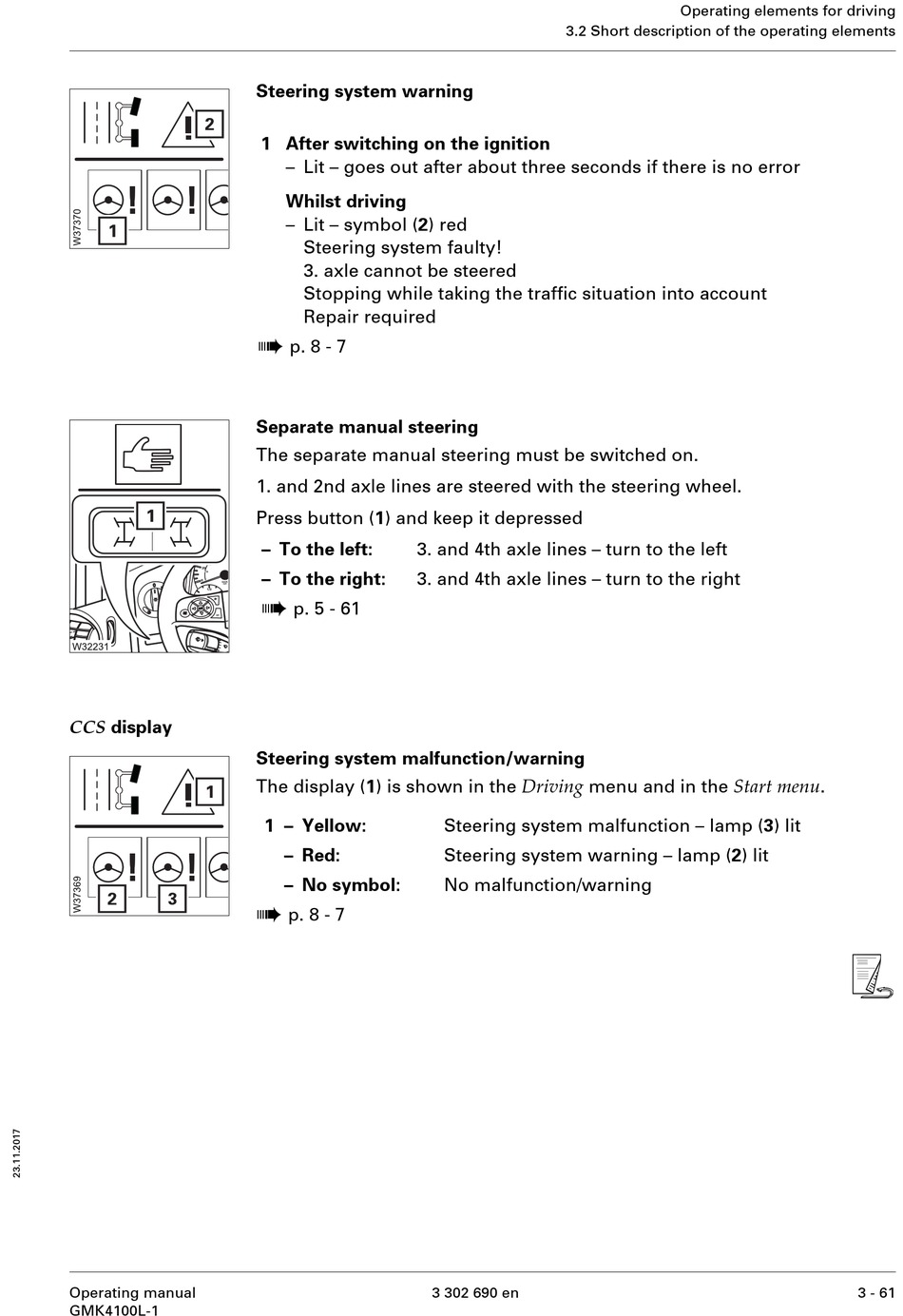

CCS display
Operating manual
GMK4100L-1
Steering system warning
1 After switching on the ignition
– Lit – goes out after about three seconds if there is no error
Whilst driving
– Lit – symbol (2) red
Steering system faulty!
3. axle cannot be steered
Stopping while taking the traffic situation into account
Repair required
à
p. 8 - 7
Separate manual steering
The separate manual steering must be switched on.
1. and 2nd axle lines are steered with the steering wheel.
Press button (1) and keep it depressed
– To the left: 3. and 4th axle lines – turn to the left
– To the right: 3. and 4th axle lines – turn to the right
à
p. 5 - 61
Steering system malfunction/warning
The display (1) is shown in the Driving menu and in the Start menu .
1 – Yellow:
– Red:
– No symbol:
à
p. 8 - 7
3.2 Short description of the operating elements
Steering system malfunction – lamp (3) lit
Steering system warning – lamp (2) lit
No malfunction/warning
