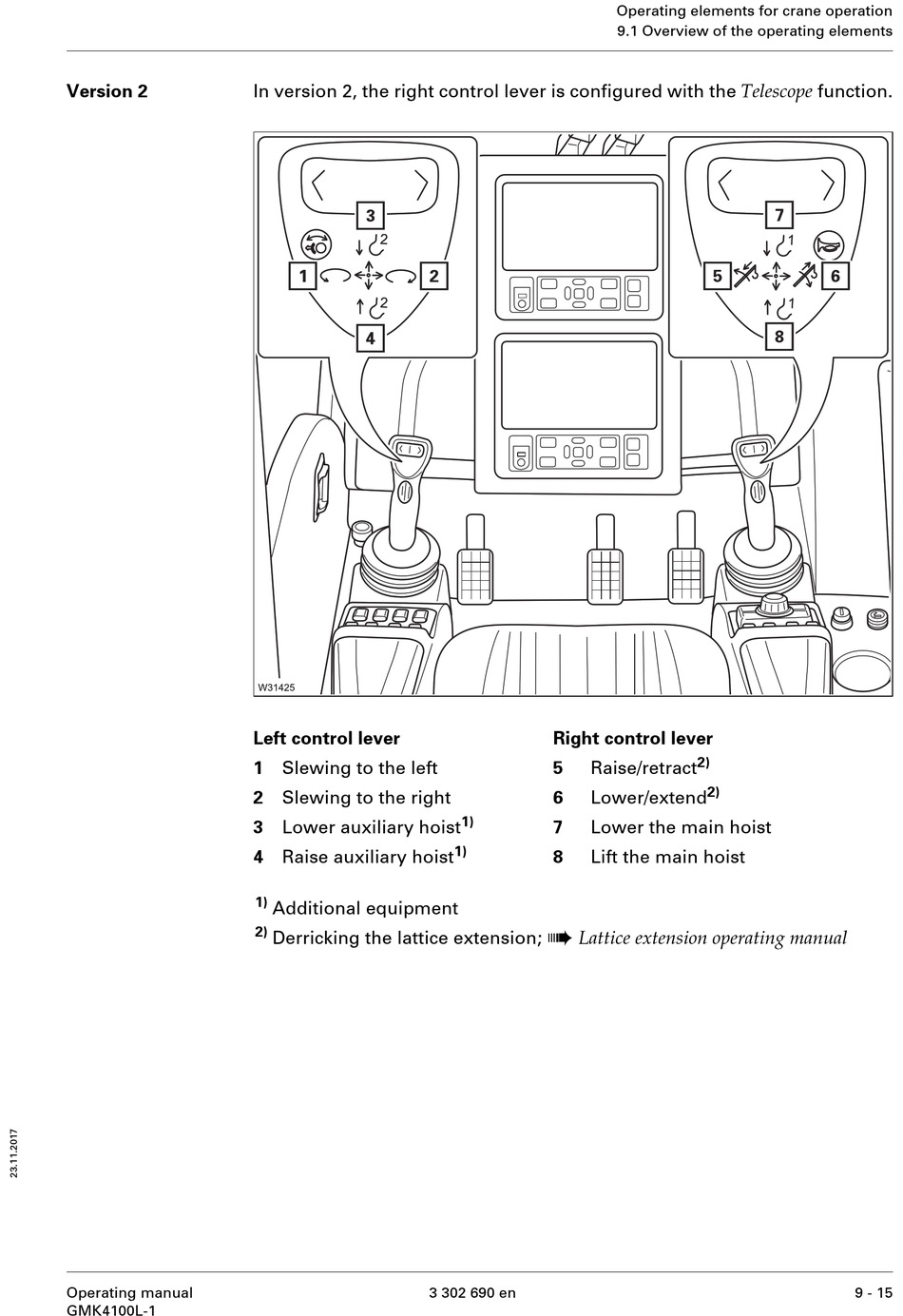

Manitowoc Grove GMK4100L-1 Operating Manual page 425

Version 2
Operating manual
GMK4100L-1
In version 2, the right control lever is configured with the Telescope function.
Left control lever
1 Slewing to the left
2 Slewing to the right
3 Lower auxiliary hoist
4 Raise auxiliary hoist
1)
Additional equipment
2)
Derricking the lattice extension;
Right control lever
5 Raise/retract
6 Lower/extend
1)
7 Lower the main hoist
1)
8 Lift the main hoist
à
Lattice extension operating manual
3 302 690 en
Operating elements for crane operation
9.1 Overview of the operating elements
2)
2)
