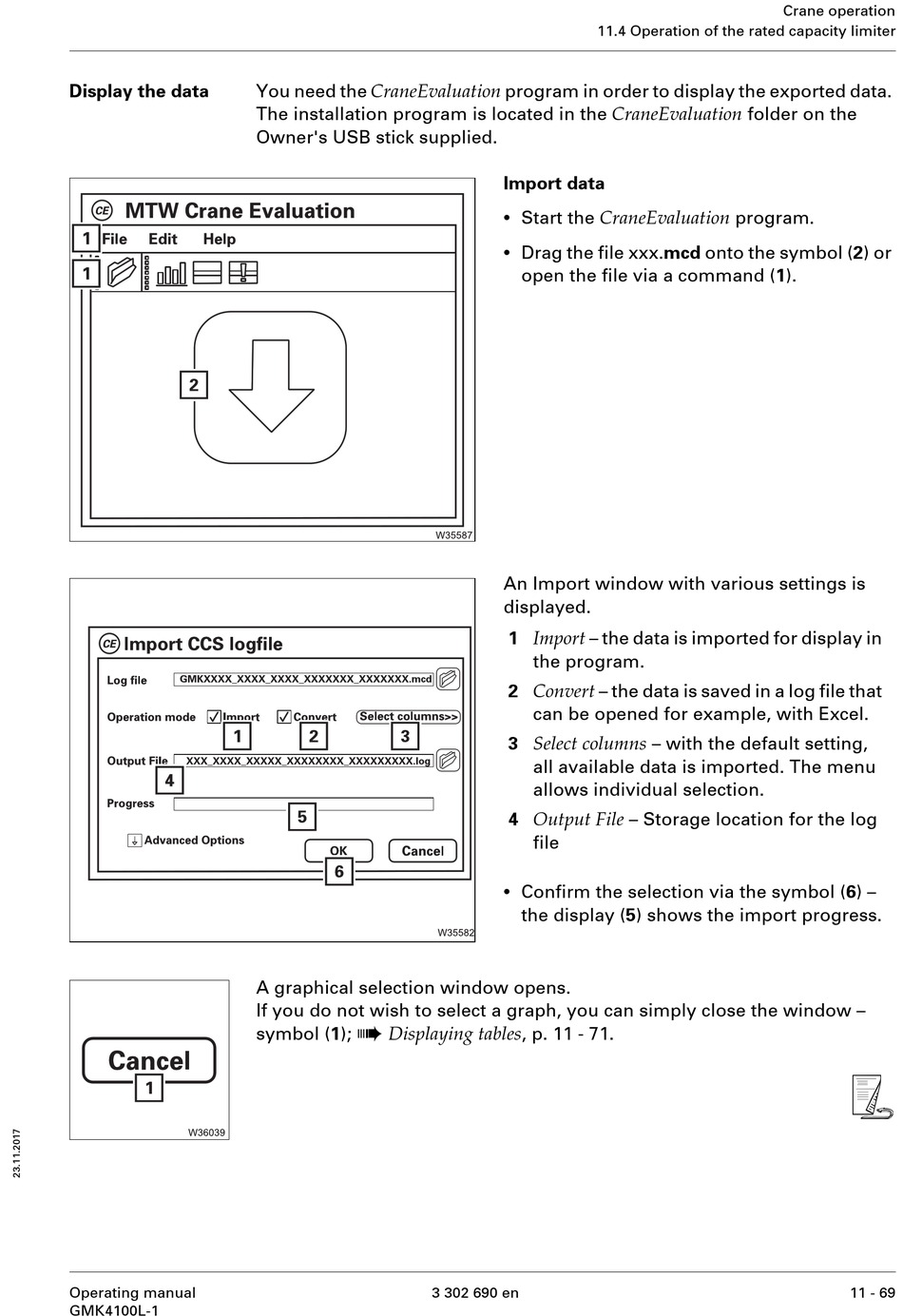

Display the data
GMKXXXX_XXXX_XXXX_XXXXXXX_XXXXXXX.mcd
XXX_XXXX_XXXXX_XXXXXXXX_XXXXXXXXX.log
Operating manual
GMK4100L-1
You need the CraneEvaluation program in order to display the exported data.
The installation program is located in the CraneEvaluation folder on the
Owner's USB stick supplied.
A graphical selection window opens.
If you do not wish to select a graph, you can simply close the window –
à
symbol (1); Displaying tables , p. 11 - 71.
11.4 Operation of the rated capacity limiter
Import data
•
Start the CraneEvaluation program.
•
Drag the file xxx.mcd onto the symbol (2) or
open the file via a command (1).
An Import window with various settings is
displayed.
1 Import – the data is imported for display in
the program.
2 Convert – the data is saved in a log file that
can be opened for example, with Excel.
3 Select columns – with the default setting,
all available data is imported. The menu
allows individual selection.
4 Output File – Storage location for the log
file
•
Confirm the selection via the symbol (6) –
the display (5) shows the import progress.
