8.5.5
S
Connecting
the filling hose
Operating manual
GMK4100L-1

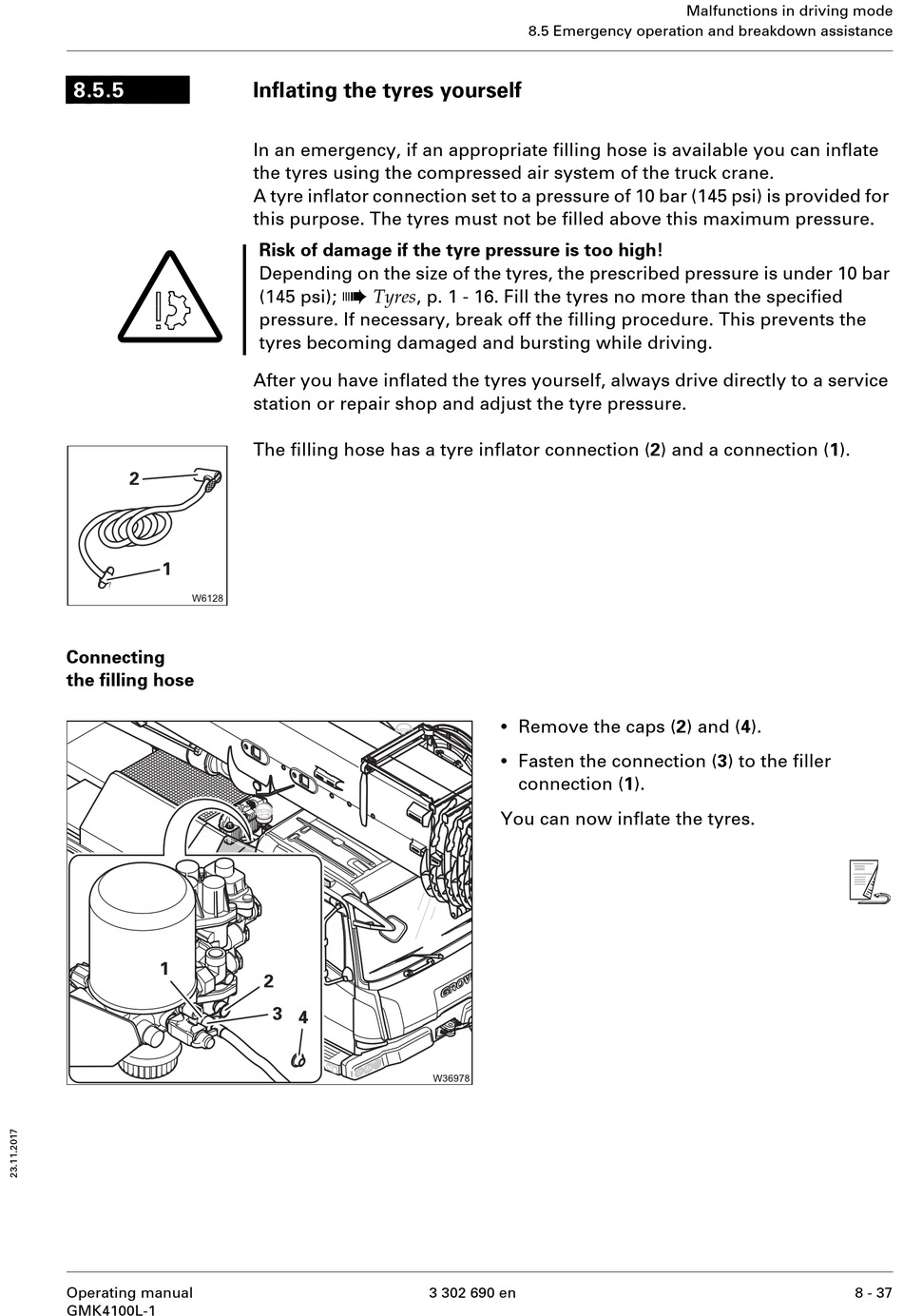

Inflating the tyres yourself

In an emergency, if an appropriate filling hose is available you can inflate
the tyres using the compressed air system of the truck crane.
A tyre inflator connection set to a pressure of 10 bar (145 psi) is provided for
this purpose. The tyres must not be filled above this maximum pressure.
Risk of damage if the tyre pressure is too high!
Depending on the size of the tyres, the prescribed pressure is under 10 bar
à
Tyres , p. 1 - 16. Fill the tyres no more than the specified
(145 psi);
pressure. If necessary, break off the filling procedure. This prevents the
tyres becoming damaged and bursting while driving.
After you have inflated the tyres yourself, always drive directly to a service
station or repair shop and adjust the tyre pressure.
The filling hose has a tyre inflator connection (2) and a connection (1).
8.5 Emergency operation and breakdown assistance
•
Remove the caps (2) and (4).
•
Fasten the connection (3) to the filler
connection (1).
You can now inflate the tyres.
3 302 690 en
Malfunctions in driving mode
s
8 - 37
