9.1.7
Operating manual
GMK4100L-1

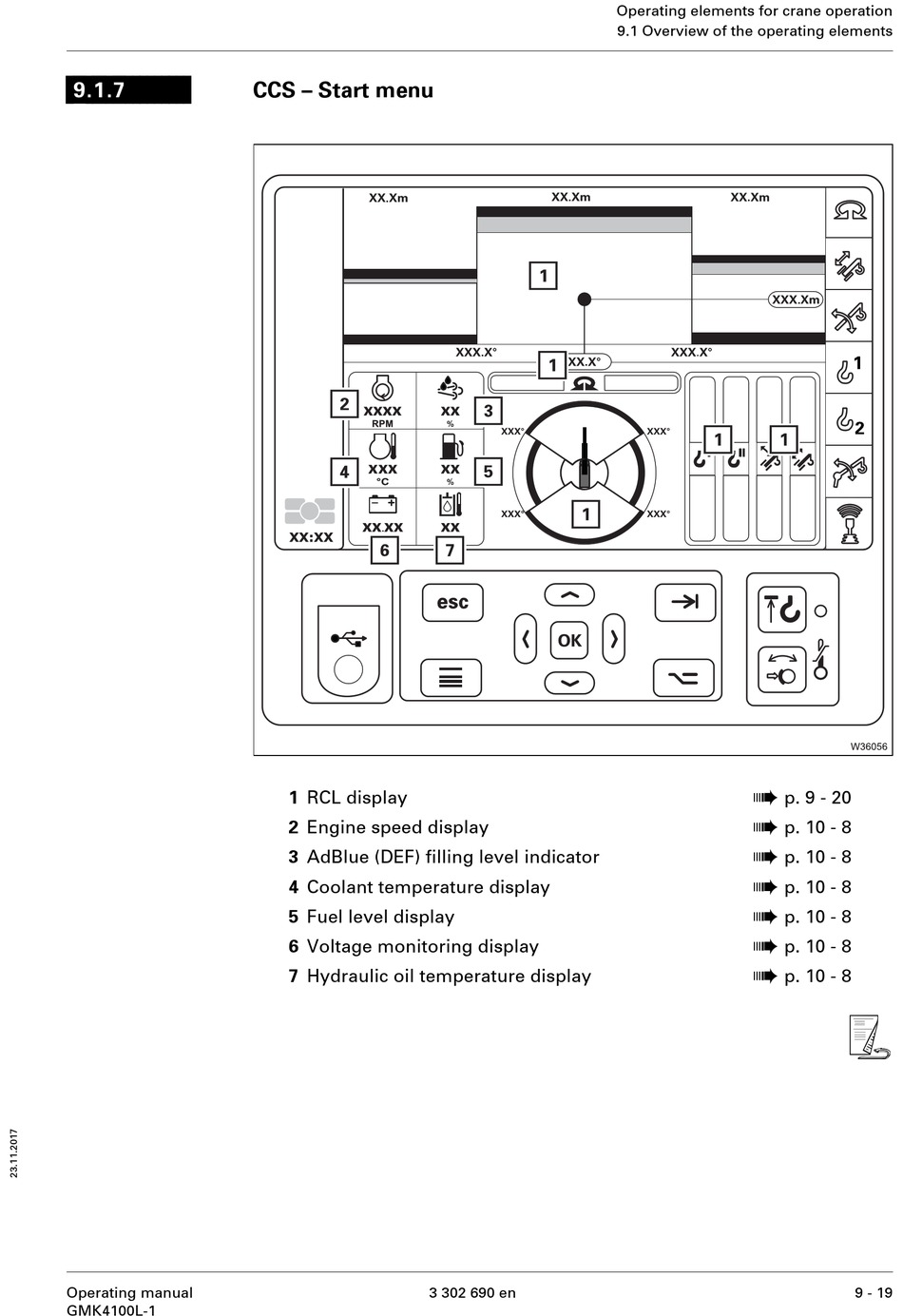

CCS – Start menu
1 RCL display
2 Engine speed display
3 AdBlue (DEF) filling level indicator
4 Coolant temperature display
5 Fuel level display
6 Voltage monitoring display
7 Hydraulic oil temperature display
3 302 690 en
Operating elements for crane operation
9.1 Overview of the operating elements
à
p. 9 - 20
à
p. 10 - 8
à
p. 10 - 8
à
p. 10 - 8
à
p. 10 - 8
à
p. 10 - 8
à
p. 10 - 8
s
9 - 19
