Overview
1.7 Notes on the operating manual
1.7.4
1 - 30

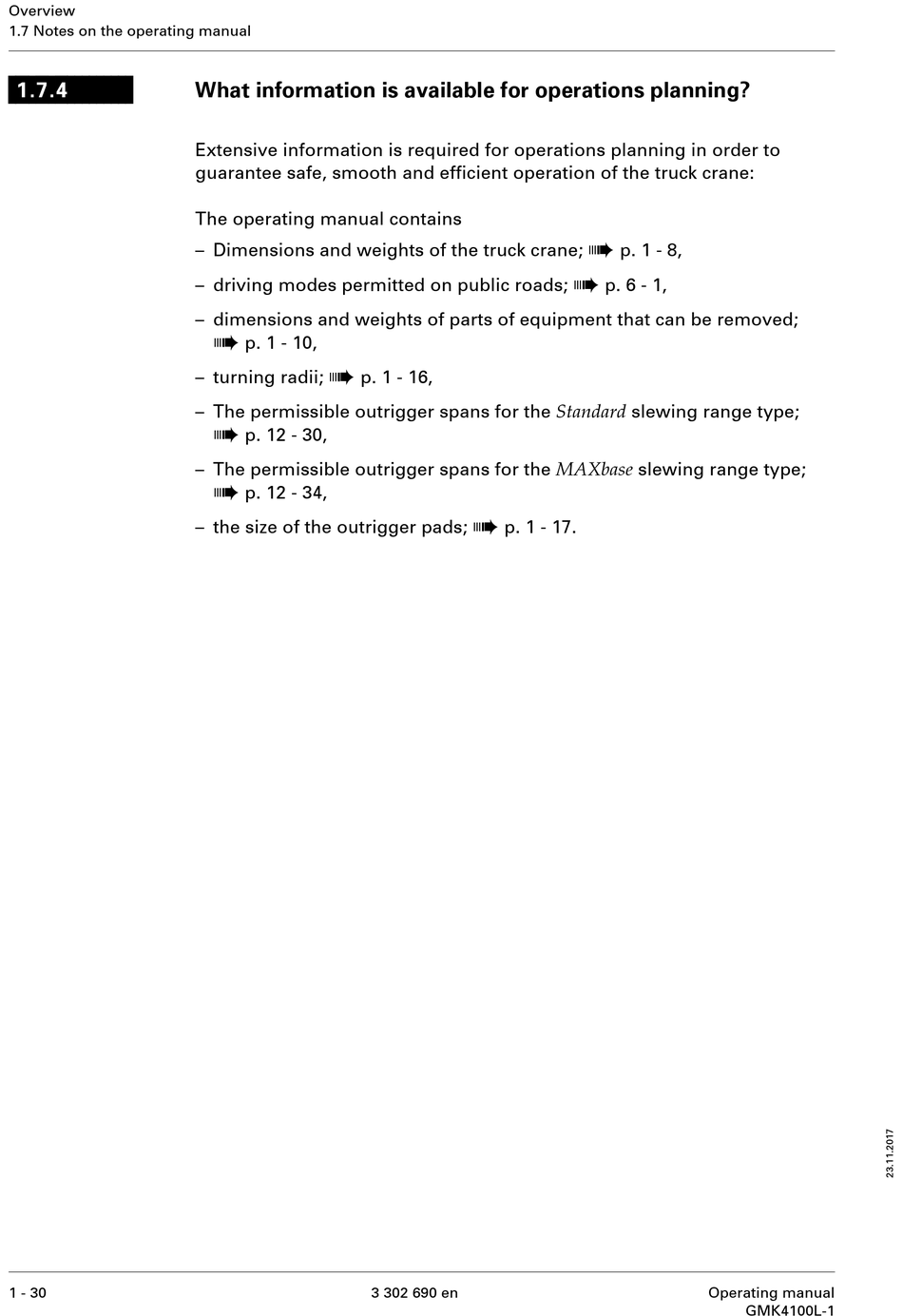

What information is available for operations planning?

Extensive information is required for operations planning in order to
guarantee safe, smooth and efficient operation of the truck crane:
The operating manual contains
– Dimensions and weights of the truck crane;
– driving modes permitted on public roads;
– dimensions and weights of parts of equipment that can be removed;
à
p. 1 - 10,
à
– turning radii; p. 1 - 16,
– The permissible outrigger spans for the Standard slewing range type;
à
p. 12 - 30,
– The permissible outrigger spans for the MAXbase slewing range type;
à
p. 12 - 34,
– the size of the outrigger pads;
à
p. 1 - 17.
3 302 690 en
à
p. 1 - 8,
à
p. 6 - 1,
Operating manual
GMK4100L-1
