Driving modes

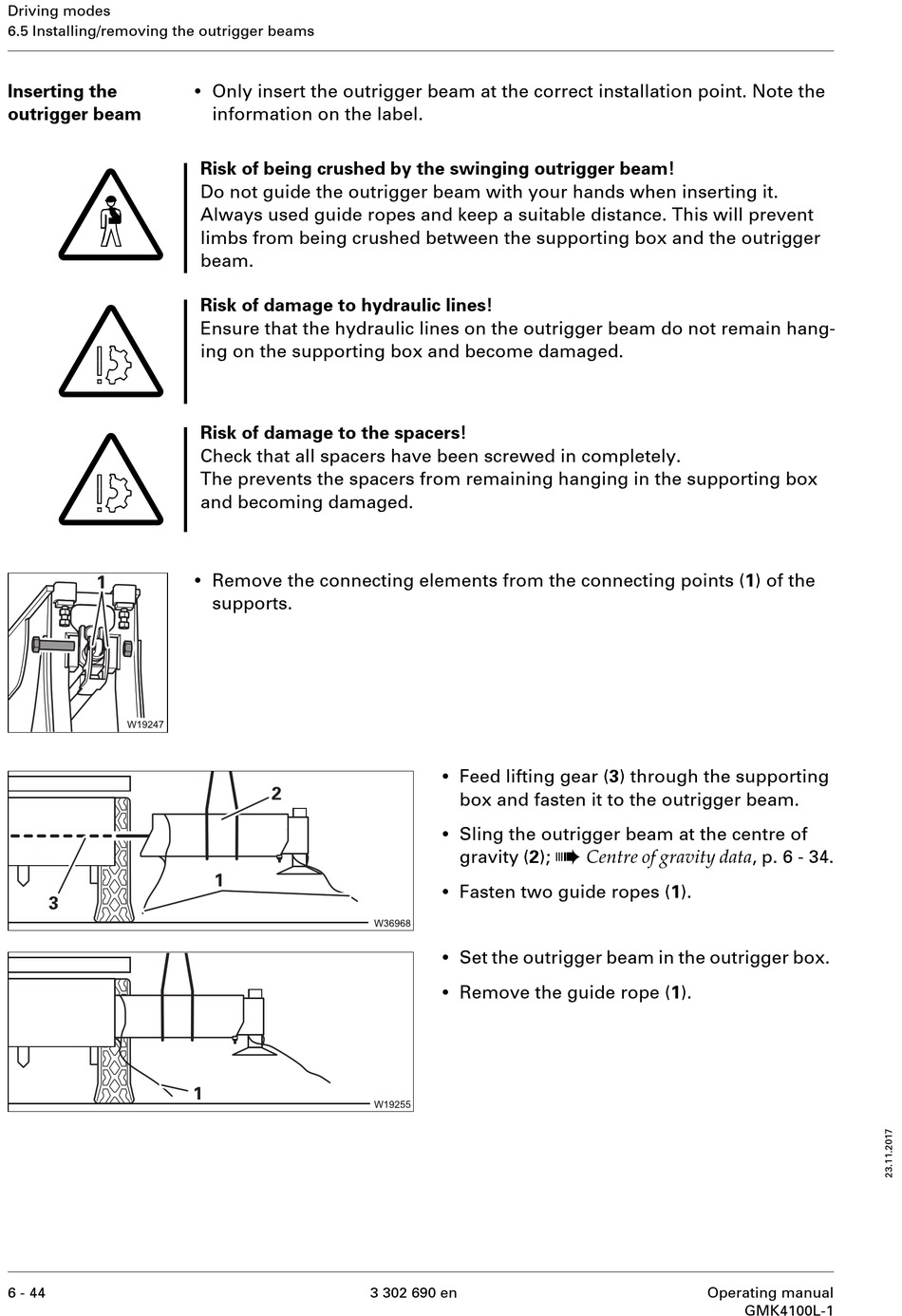

6.5 Installing/removing the outrigger beams
Inserting the
outrigger beam
G
S
S
6 - 44
•
Only insert the outrigger beam at the correct installation point. Note the
information on the label.
Risk of being crushed by the swinging outrigger beam!
Do not guide the outrigger beam with your hands when inserting it.
Always used guide ropes and keep a suitable distance. This will prevent
limbs from being crushed between the supporting box and the outrigger
beam.
Risk of damage to hydraulic lines!
Ensure that the hydraulic lines on the outrigger beam do not remain hang-
ing on the supporting box and become damaged.
Risk of damage to the spacers!
Check that all spacers have been screwed in completely.
The prevents the spacers from remaining hanging in the supporting box
and becoming damaged.
•
Remove the connecting elements from the connecting points (1) of the
supports.
•
Feed lifting gear (3) through the supporting
box and fasten it to the outrigger beam.
•
Sling the outrigger beam at the centre of
gravity (2);
•
Fasten two guide ropes (1).
•
Set the outrigger beam in the outrigger box.
•
Remove the guide rope (1).
3 302 690 en
à
Centre of gravity data , p. 6 - 34.
