S
Longitudinal/trans-
verse differential
locks
28

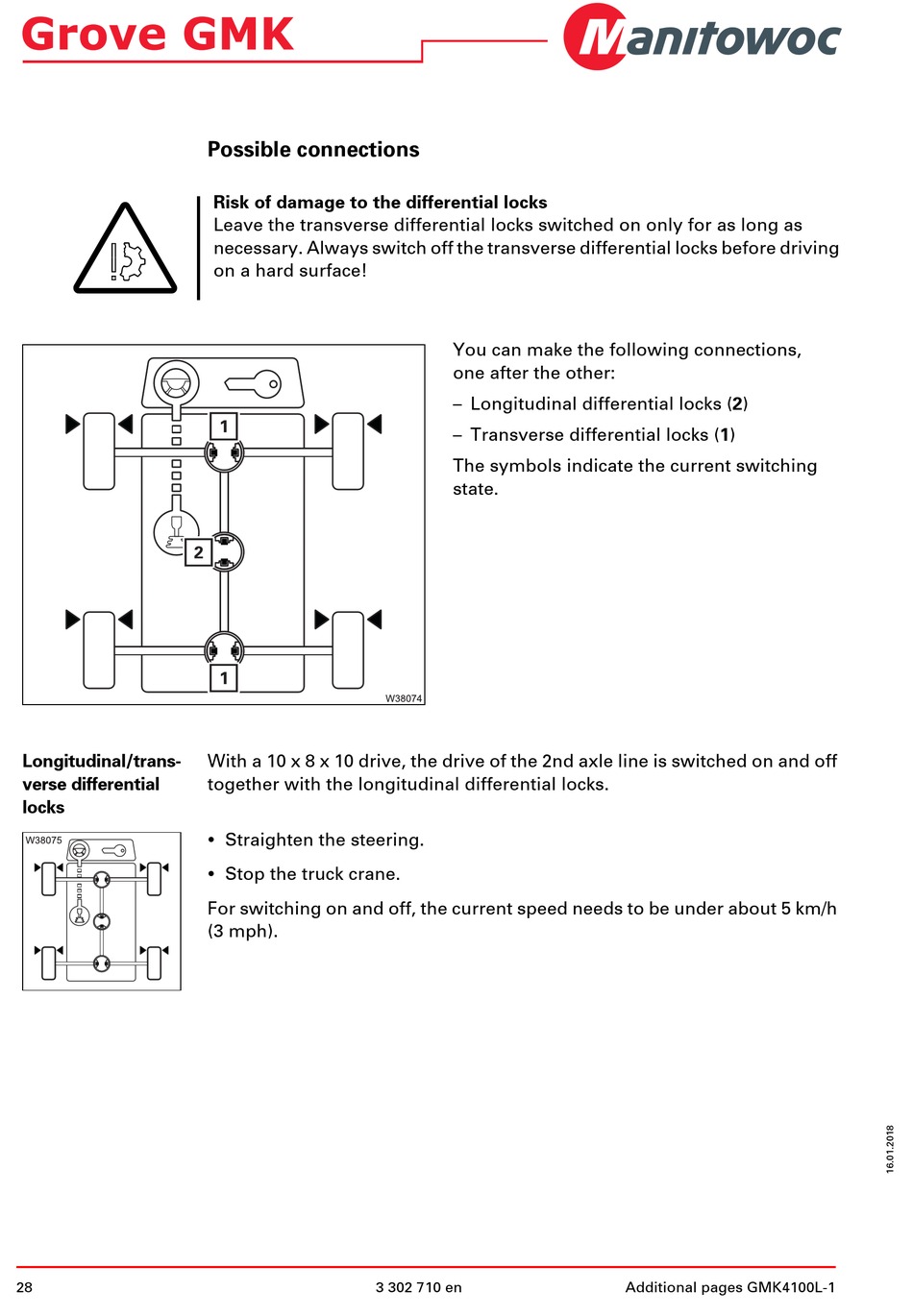

Possible connections
Risk of damage to the differential locks
Leave the transverse differential locks switched on only for as long as
necessary. Always switch off the transverse differential locks before driving
on a hard surface!
With a 10 x 8 x 10 drive, the drive of the 2nd axle line is switched on and off
together with the longitudinal differential locks.
Straighten the steering.
Stop the truck crane.
For switching on and off, the current speed needs to be under about 5 km/h
(3 mph).
3 302 710 en
You can make the following connections,
one after the other:
– Longitudinal differential locks (2)
– Transverse differential locks (1)
The symbols indicate the current switching
state.
Additional pages GMK4100L-1
