Display During The Crane Operation - Manitowoc Grove GMK4100L-1 Operating Manual

11.4.6
On the RCL
display
Operating manual
GMK4100L-1

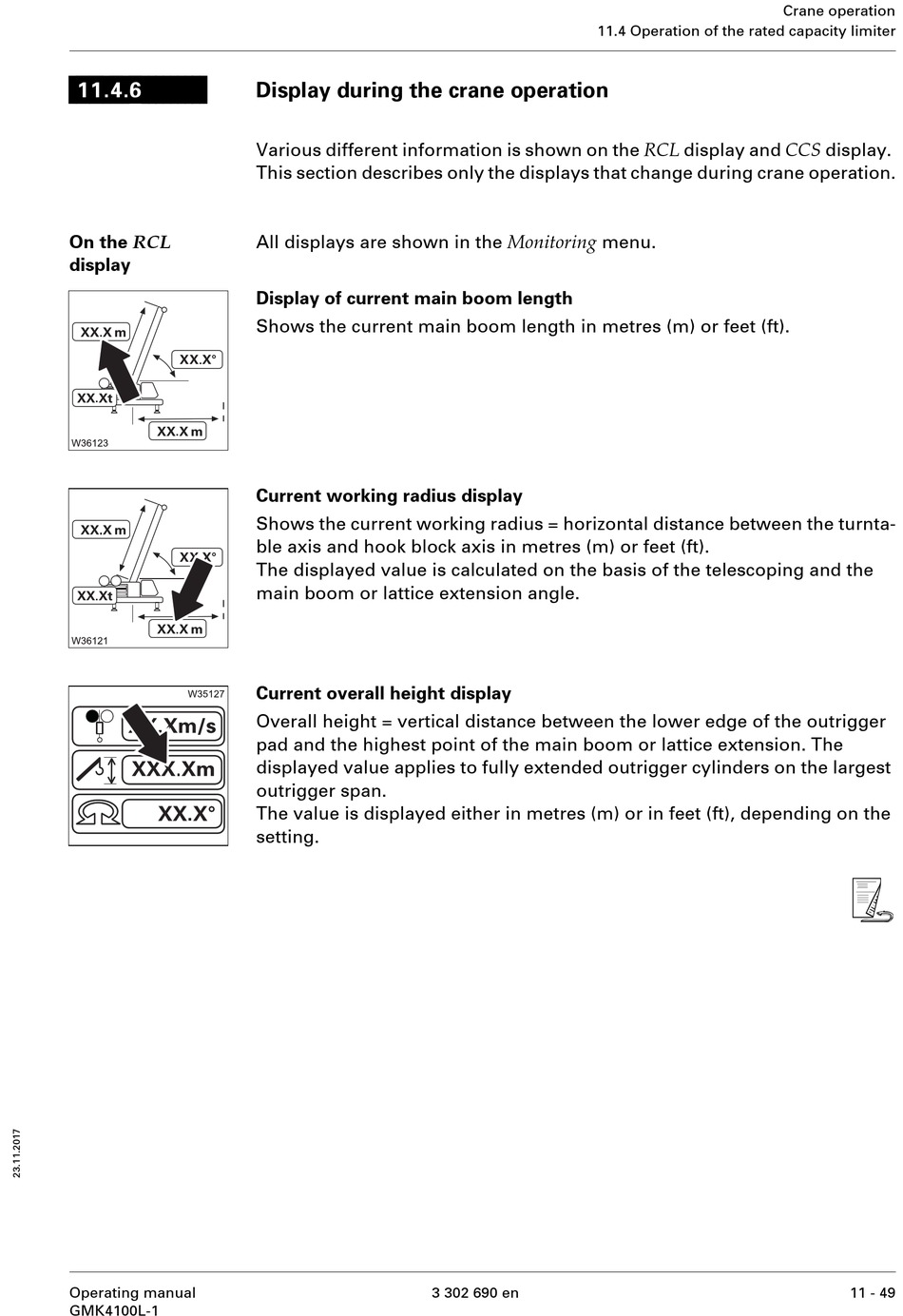

Display during the crane operation

Various different information is shown on the RCL display and CCS display.
This section describes only the displays that change during crane operation.
All displays are shown in the Monitoring menu.
Display of current main boom length
Shows the current main boom length in metres (m) or feet (ft).
Current working radius display
Shows the current working radius = horizontal distance between the turnta-
ble axis and hook block axis in metres (m) or feet (ft).
The displayed value is calculated on the basis of the telescoping and the
main boom or lattice extension angle.
Current overall height display
Overall height = vertical distance between the lower edge of the outrigger
pad and the highest point of the main boom or lattice extension. The
displayed value applies to fully extended outrigger cylinders on the largest
outrigger span.
The value is displayed either in metres (m) or in feet (ft), depending on the
setting.
11.4 Operation of the rated capacity limiter
3 302 690 en
Crane operation
s
11 - 49
