Crane operation
11.7 Working range limiter
11 - 138

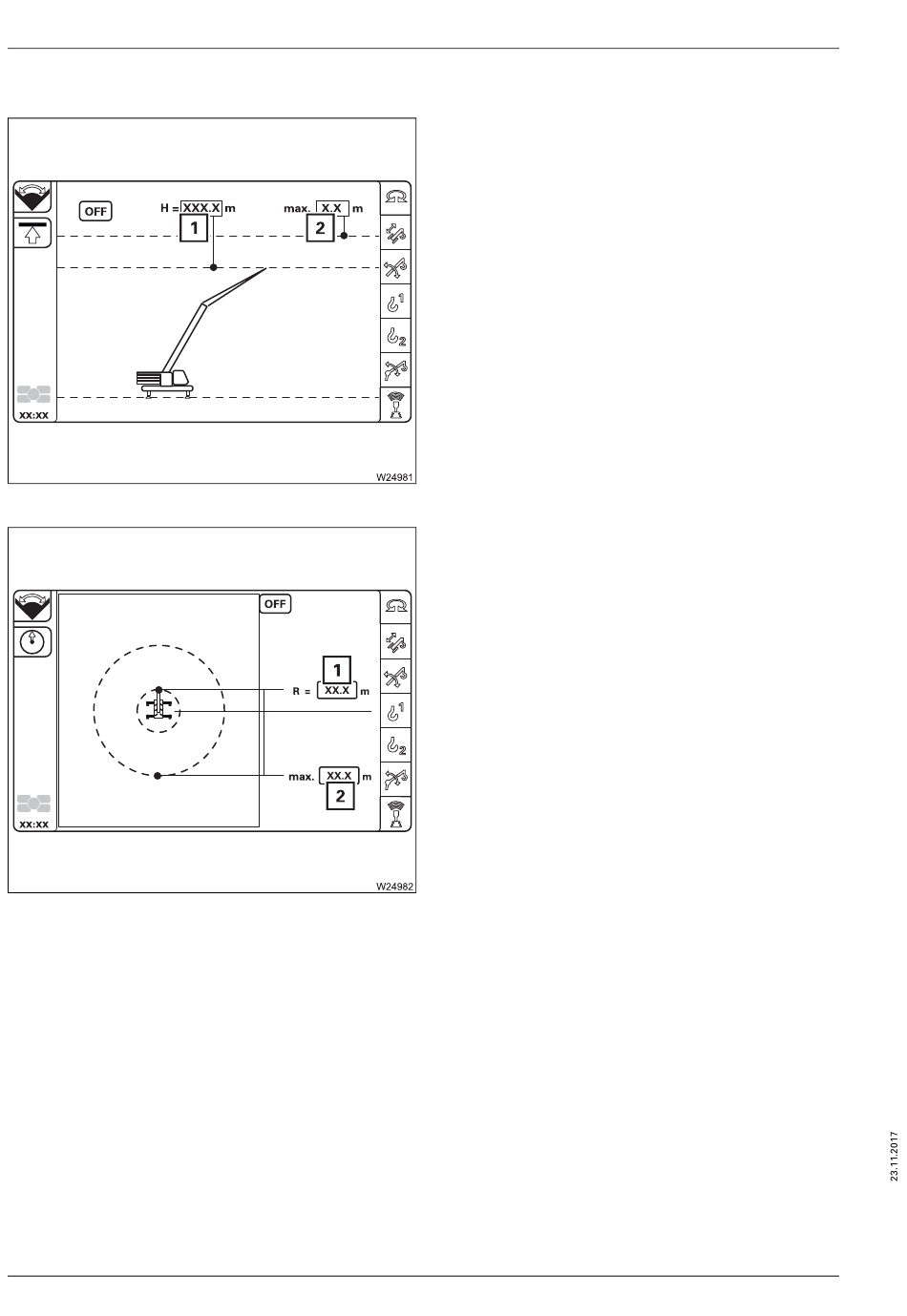

The working range limiter values are displayed graphically and numerically.
Limit values/current values for height
The symbols show values for:
1 Current overall height
2 permissible overall height
Limit values/current values for working radius
The symbols show values for
1 current working radius
2 permissible working radius
3 302 690 en
Operating manual
GMK4100L-1
