Rigging for crane
operation
Operating manual
GMK4100L-1
•

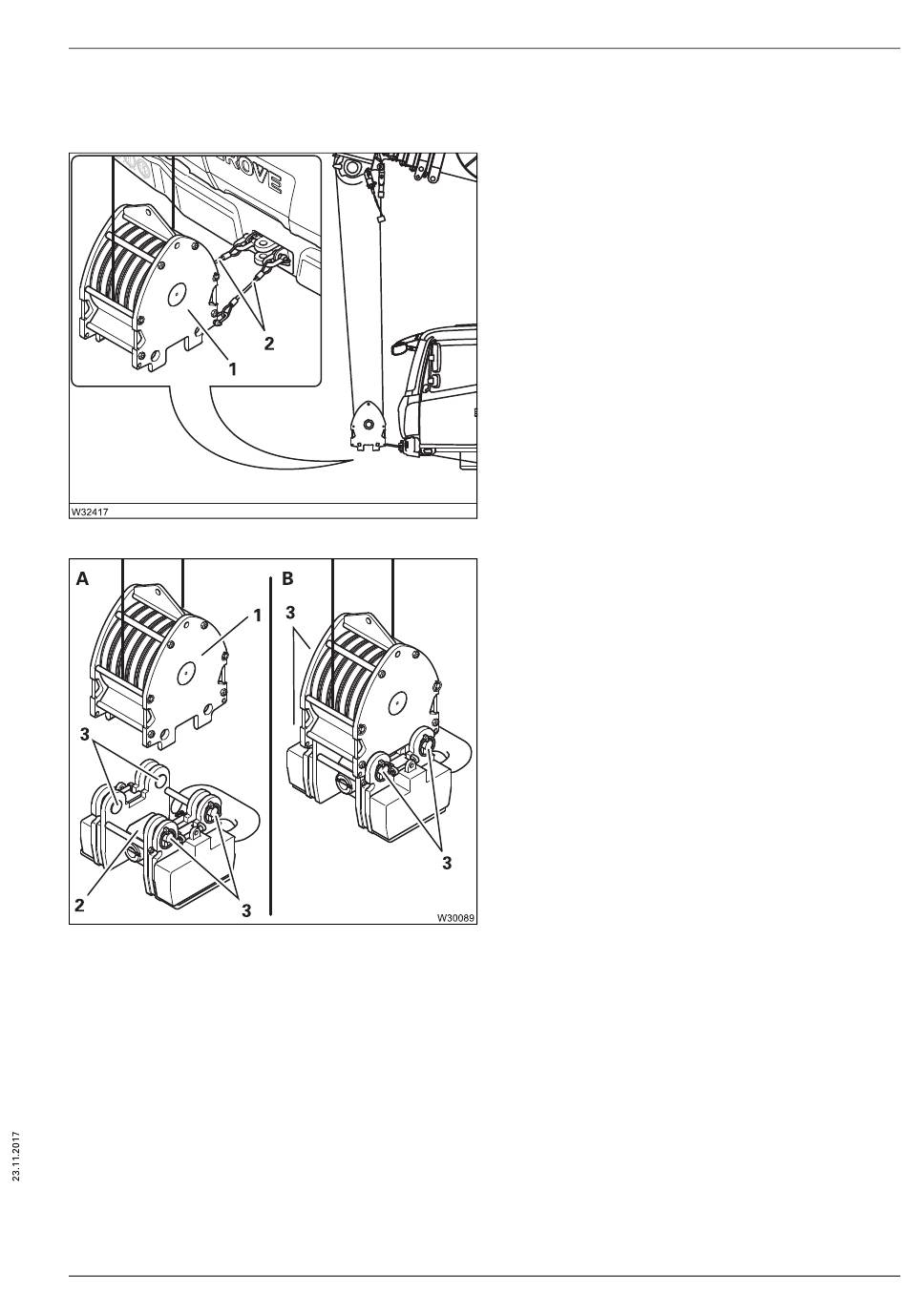

Slacken the hoist rope and raise the main
boom simultaneously.
•
Raise the main boom until the boom head
is in a vertical position above the block
hook (1).
•
Detach the block hook from the retaining
ropes (2).
•
(A) – Pull the pin (3) out.
•
(B) – Raise the hook block (1) above the
hook (2) until the connecting points are
aligned.
•
Insert the pins (3) and secure them with the
retaining pins.
