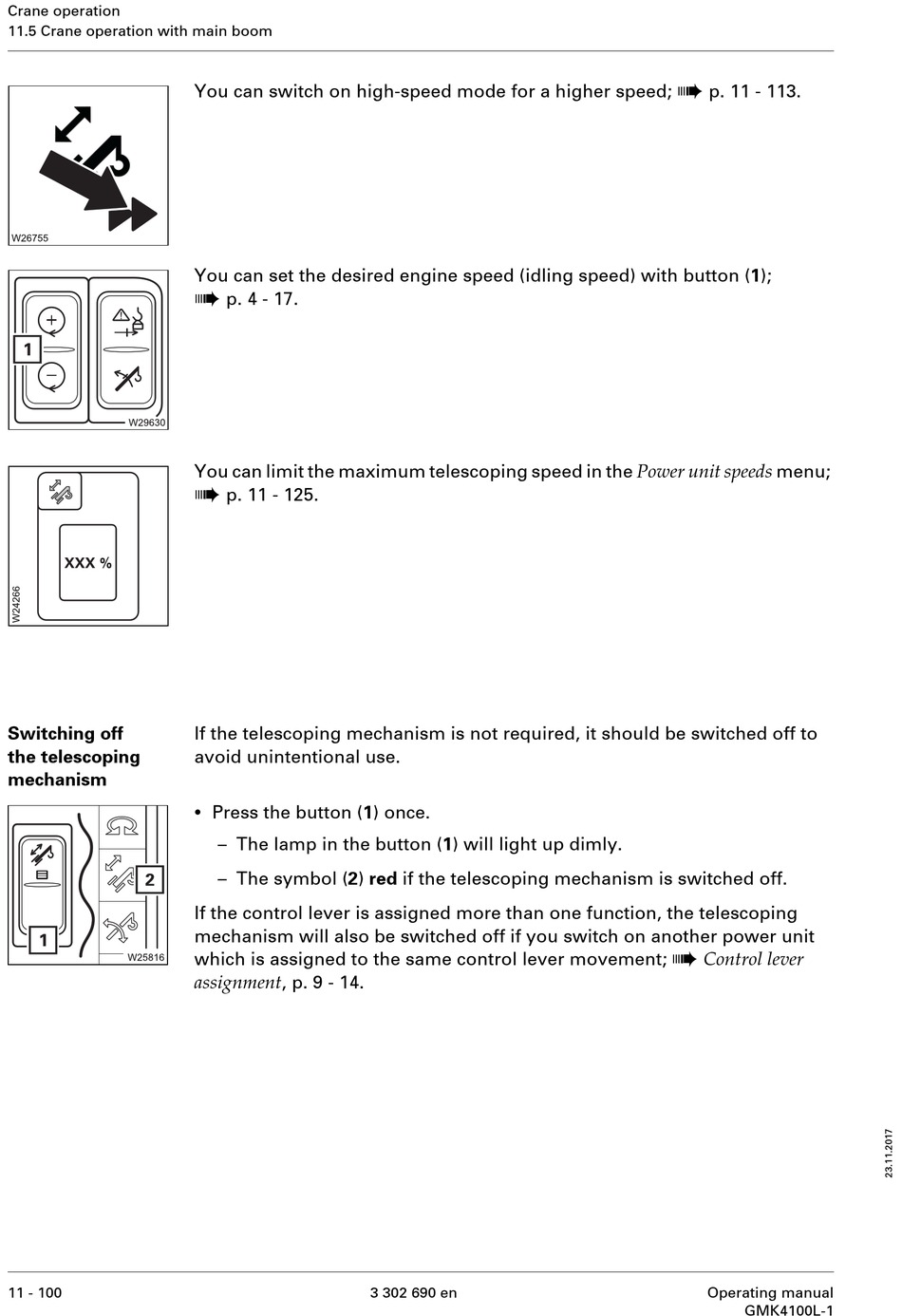

Manitowoc Grove GMK4100L-1 Operating Manual page 688

Crane operation
11.5 Crane operation with main boom
Switching off
the telescoping
mechanism
11 - 100
You can switch on high-speed mode for a higher speed;
You can set the desired engine speed (idling speed) with button (1);
à
p. 4 - 17.
You can limit the maximum telescoping speed in the Power unit speeds menu;
à
p. 11 - 125.
If the telescoping mechanism is not required, it should be switched off to
avoid unintentional use.
•
Press the button (1) once.
– The lamp in the button (1) will light up dimly.
– The symbol (2) red if the telescoping mechanism is switched off.
If the control lever is assigned more than one function, the telescoping
mechanism will also be switched off if you switch on another power unit
which is assigned to the same control lever movement;
assignment , p. 9 - 14.
3 302 690 en
à
p. 11 - 113.
à
Control lever
Operating manual
GMK4100L-1
