Crane operation

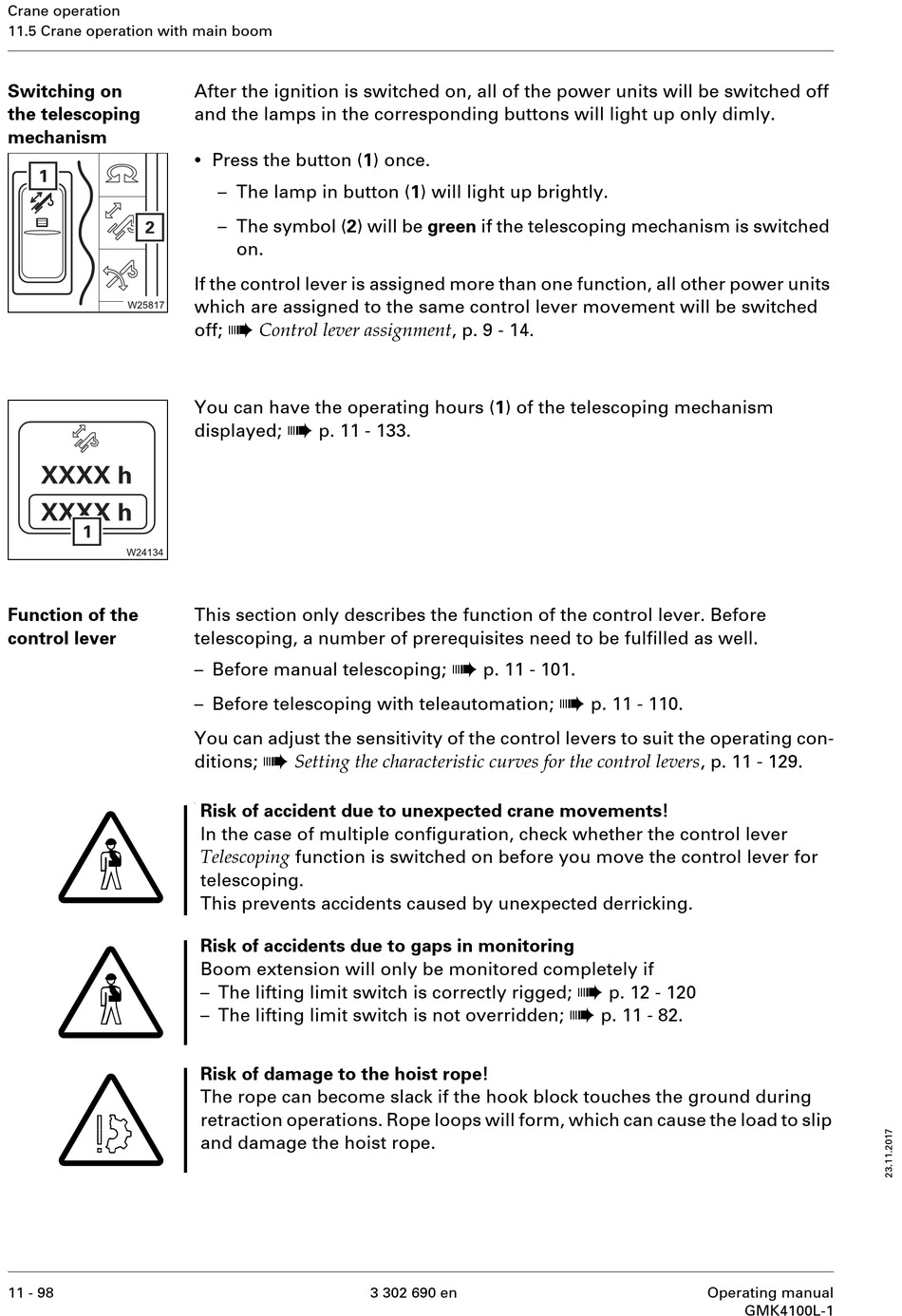

11.5 Crane operation with main boom
Switching on
the telescoping
mechanism
Function of the
control lever
G
G
S
11 - 98
After the ignition is switched on, all of the power units will be switched off
and the lamps in the corresponding buttons will light up only dimly.
•
Press the button (1) once.
– The lamp in button (1) will light up brightly.
– The symbol (2) will be green if the telescoping mechanism is switched
on.
If the control lever is assigned more than one function, all other power units
which are assigned to the same control lever movement will be switched
à
Control lever assignment , p. 9 - 14.
off;
You can have the operating hours (1) of the telescoping mechanism
à
displayed; p. 11 - 133.
This section only describes the function of the control lever. Before
telescoping, a number of prerequisites need to be fulfilled as well.
– Before manual telescoping;
– Before telescoping with teleautomation;
You can adjust the sensitivity of the control levers to suit the operating con-
à
Setting the characteristic curves for the control levers , p. 11 - 129.
ditions;
.
Risk of accident due to unexpected crane movements!
In the case of multiple configuration, check whether the control lever
Telescoping function is switched on before you move the control lever for
telescoping.
This prevents accidents caused by unexpected derricking.
Risk of accidents due to gaps in monitoring
Boom extension will only be monitored completely if
– The lifting limit switch is correctly rigged;
– The lifting limit switch is not overridden;
Risk of damage to the hoist rope!
The rope can become slack if the hook block touches the ground during
retraction operations. Rope loops will form, which can cause the load to slip
and damage the hoist rope.
à
p. 11 - 101.
3 302 690 en
à
p. 11 - 110.
à
p. 12 - 120
à
p. 11 - 82.
