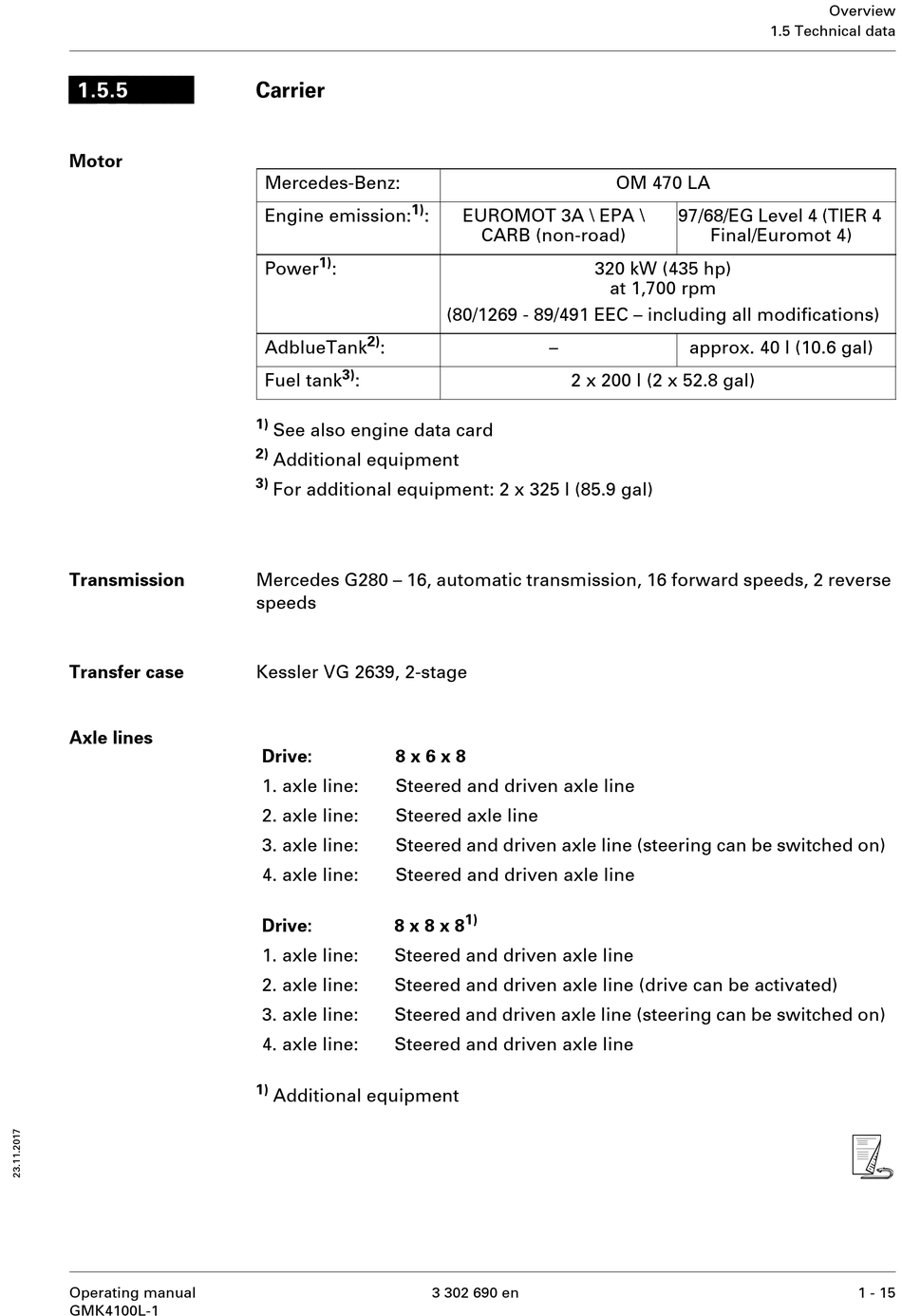

1.5.5
Motor
Transmission
Transfer case
Axle lines
Operating manual
GMK4100L-1

Carrier

Mercedes-Benz:
1)
Engine emission: :
1)
Power :
2)
AdblueTank :
3)
Fuel tank :
1)
See also engine data card
2)
Additional equipment
3)
For additional equipment: 2 x 325 l (85.9 gal)
Mercedes G280 – 16, automatic transmission, 16 forward speeds, 2 reverse
speeds
Kessler VG 2639, 2-stage
Drive: 8 x 6 x 8
1. axle line: Steered and driven axle line
2. axle line: Steered axle line
3. axle line: Steered and driven axle line (steering can be switched on)
4. axle line: Steered and driven axle line
Drive: 8 x 8 x 8
1. axle line: Steered and driven axle line
2. axle line: Steered and driven axle line (drive can be activated)
3. axle line: Steered and driven axle line (steering can be switched on)
4. axle line: Steered and driven axle line
1)
Additional equipment
EUROMOT 3A \ EPA \
CARB (non-road)
320 kW (435 hp)
(80/1269 - 89/491 EEC – including all modifications)
–
2 x 200 l (2 x 52.8 gal)
1)
3 302 690 en
1.5 Technical data
OM 470 LA
97/68/EG Level 4 (TIER 4
Final/Euromot 4)
at 1,700 rpm
approx. 40 l (10.6 gal)
Overview
s
1 - 15
