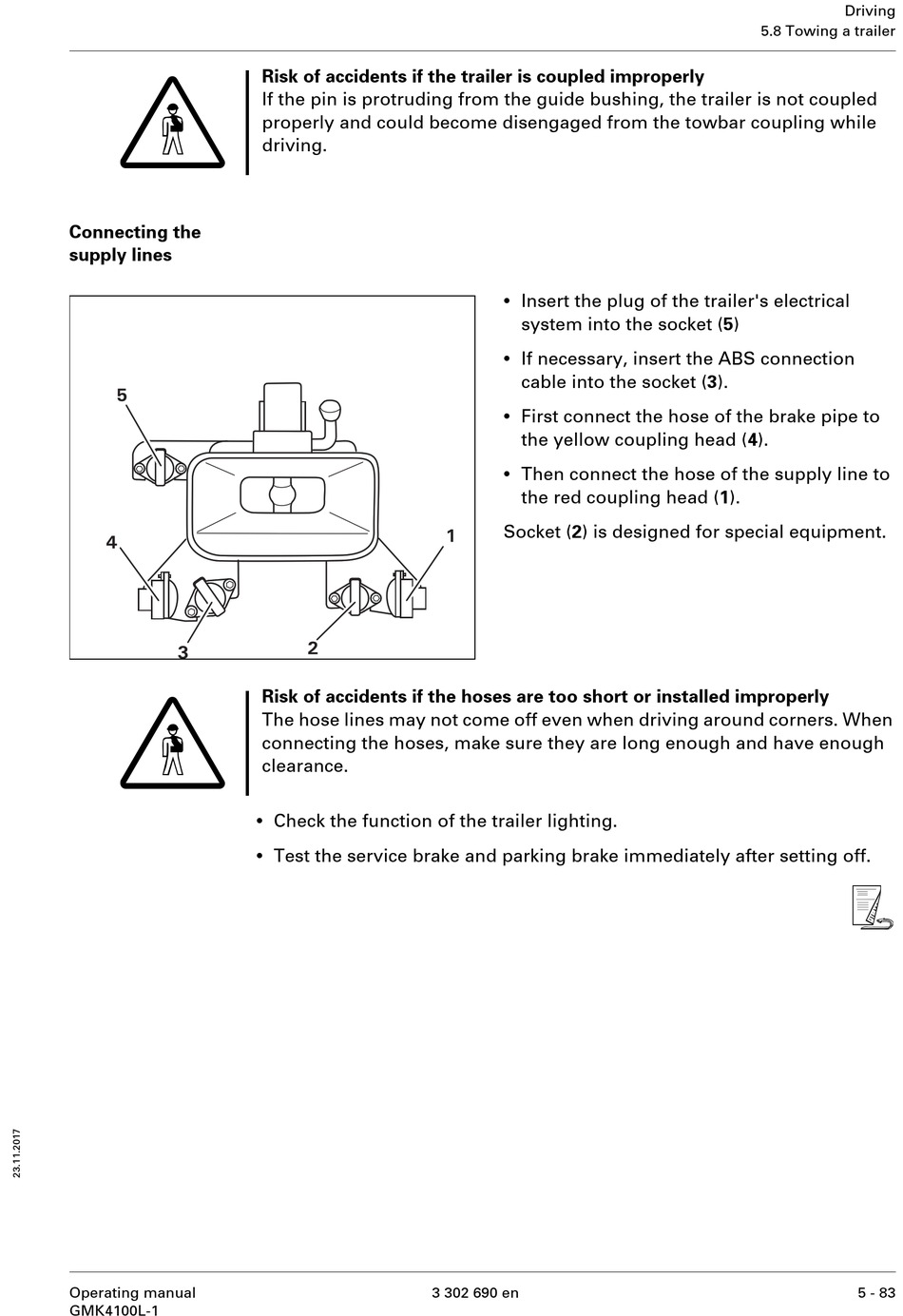

Connecting the
supply lines
G
Operating manual
GMK4100L-1
Risk of accidents if the trailer is coupled improperly
If the pin is protruding from the guide bushing, the trailer is not coupled
properly and could become disengaged from the towbar coupling while
driving.
Risk of accidents if the hoses are too short or installed improperly
The hose lines may not come off even when driving around corners. When
connecting the hoses, make sure they are long enough and have enough
clearance.
•
Check the function of the trailer lighting.
•
Test the service brake and parking brake immediately after setting off.
•
Insert the plug of the trailer's electrical
system into the socket (5)
•
If necessary, insert the ABS connection
cable into the socket (3).
•
First connect the hose of the brake pipe to
the yellow coupling head (4).
•
Then connect the hose of the supply line to
the red coupling head (1).
Socket (2) is designed for special equipment.
