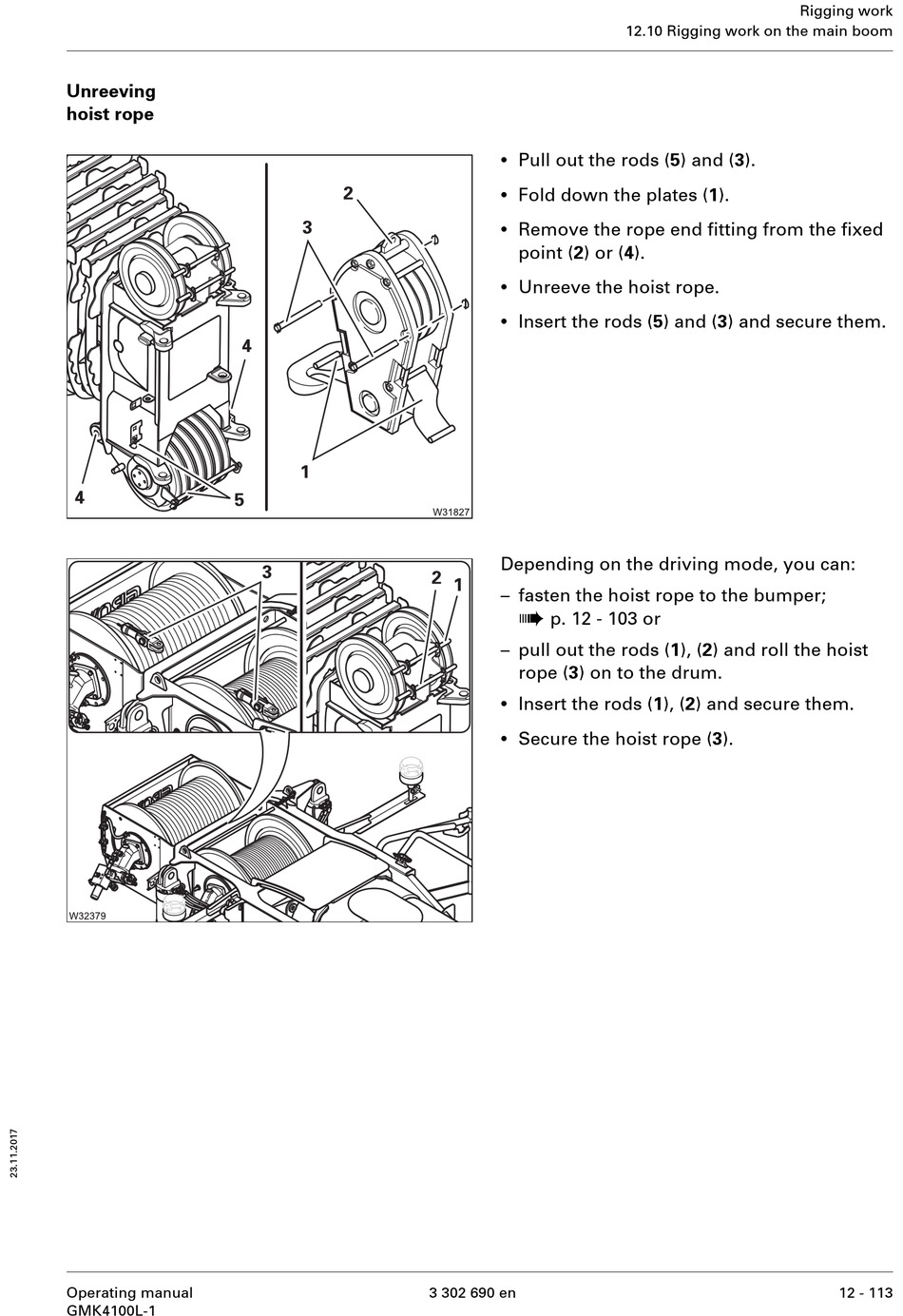

Unreeving
hoist rope
Operating manual
GMK4100L-1
•
Pull out the rods (5) and (3).
•
Fold down the plates (1).
•
Remove the rope end fitting from the fixed
point (2) or (4).
•
Unreeve the hoist rope.
•
Insert the rods (5) and (3) and secure them.
Depending on the driving mode, you can:
– fasten the hoist rope to the bumper;
à
p. 12 - 103 or
– pull out the rods (1), (2) and roll the hoist
rope (3) on to the drum.
•
Insert the rods (1), (2) and secure them.
•
Secure the hoist rope (3).
3 302 690 en
12.10 Rigging work on the main boom
Rigging work
12 - 113
