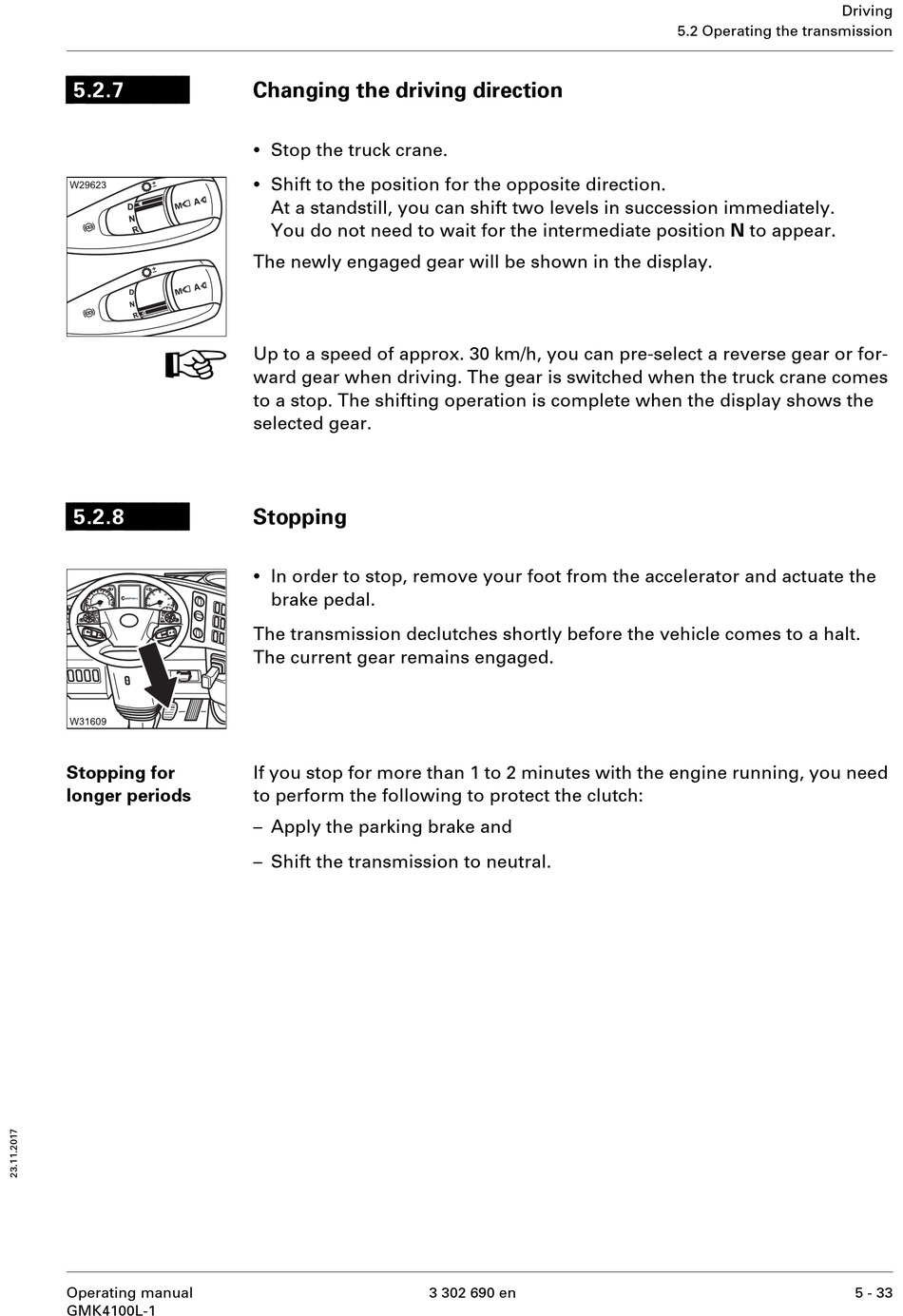

Changing The Driving Direction; Stopping - Manitowoc Grove GMK4100L-1 Operating Manual

5.2.7
H
5.2.8
Stopping for
longer periods
Operating manual
GMK4100L-1

Changing the driving direction

•
Stop the truck crane.
•
Shift to the position for the opposite direction.
At a standstill, you can shift two levels in succession immediately.
You do not need to wait for the intermediate position N to appear.
The newly engaged gear will be shown in the display.
Up to a speed of approx. 30 km/h, you can pre-select a reverse gear or for-
ward gear when driving. The gear is switched when the truck crane comes
to a stop. The shifting operation is complete when the display shows the
selected gear.

Stopping

•
In order to stop, remove your foot from the accelerator and actuate the
brake pedal.
The transmission declutches shortly before the vehicle comes to a halt.
The current gear remains engaged.
If you stop for more than 1 to 2 minutes with the engine running, you need
to perform the following to protect the clutch:
– Apply the parking brake and
– Shift the transmission to neutral.
3 302 690 en
Driving
5.2 Operating the transmission
5 - 33
