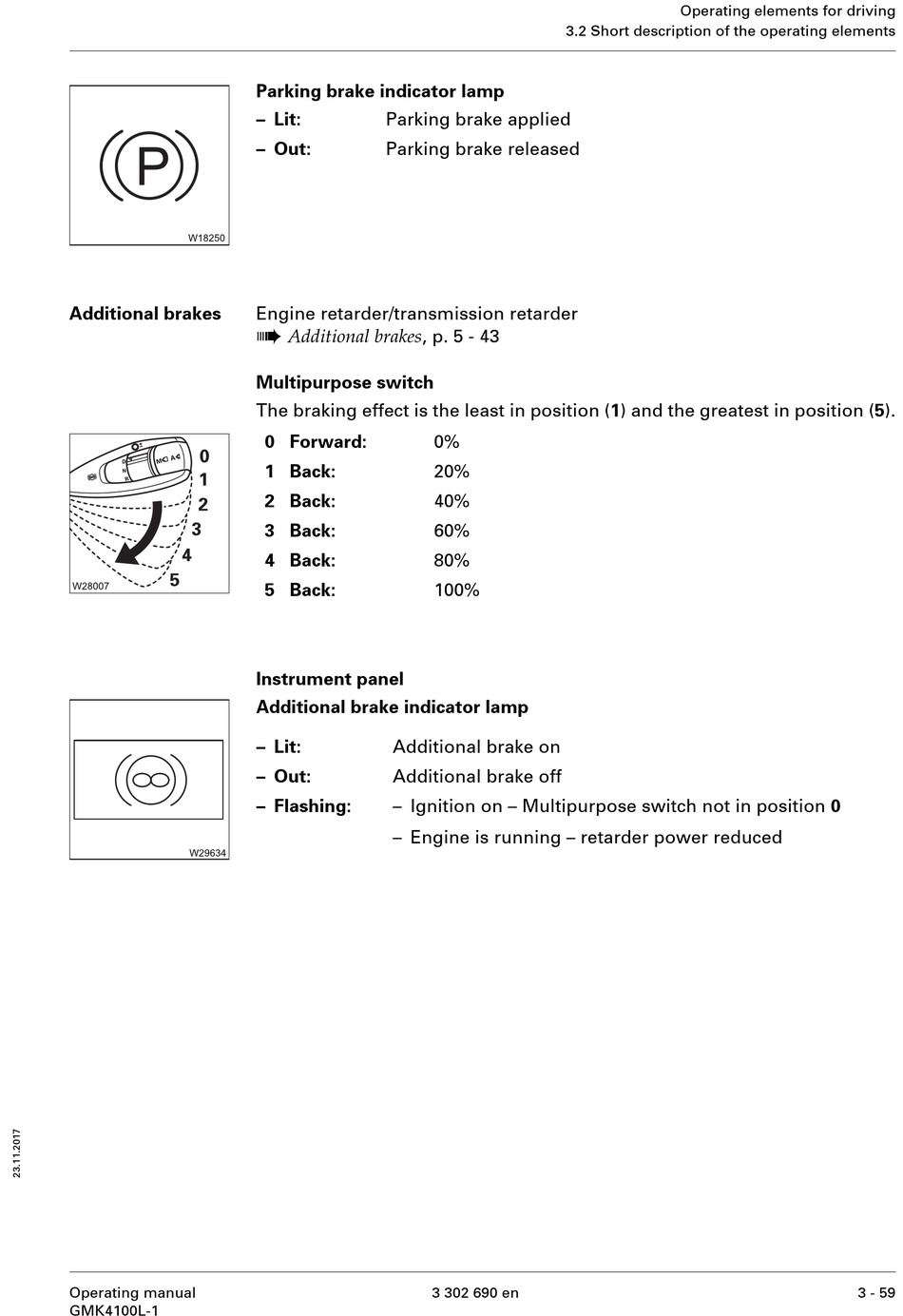

Manitowoc Grove GMK4100L-1 Operating Manual page 173

Additional brakes
Operating manual
GMK4100L-1
Parking brake indicator lamp
– Lit: Parking brake applied
– Out: Parking brake released
Engine retarder/transmission retarder
à
Additional brakes , p. 5 - 43
Multipurpose switch
The braking effect is the least in position (1) and the greatest in position (5).
0 Forward:
1 Back:
2 Back:
3 Back:
4 Back:
5 Back:
Instrument panel
Additional brake indicator lamp
– Lit: Additional brake on
– Out: Additional brake off
– Flashing: – Ignition on – Multipurpose switch not in position 0
– Engine is running – retarder power reduced
3.2 Short description of the operating elements
0%
20%
40%
60%
80%
100%
3 302 690 en
Operating elements for driving
3 - 59
