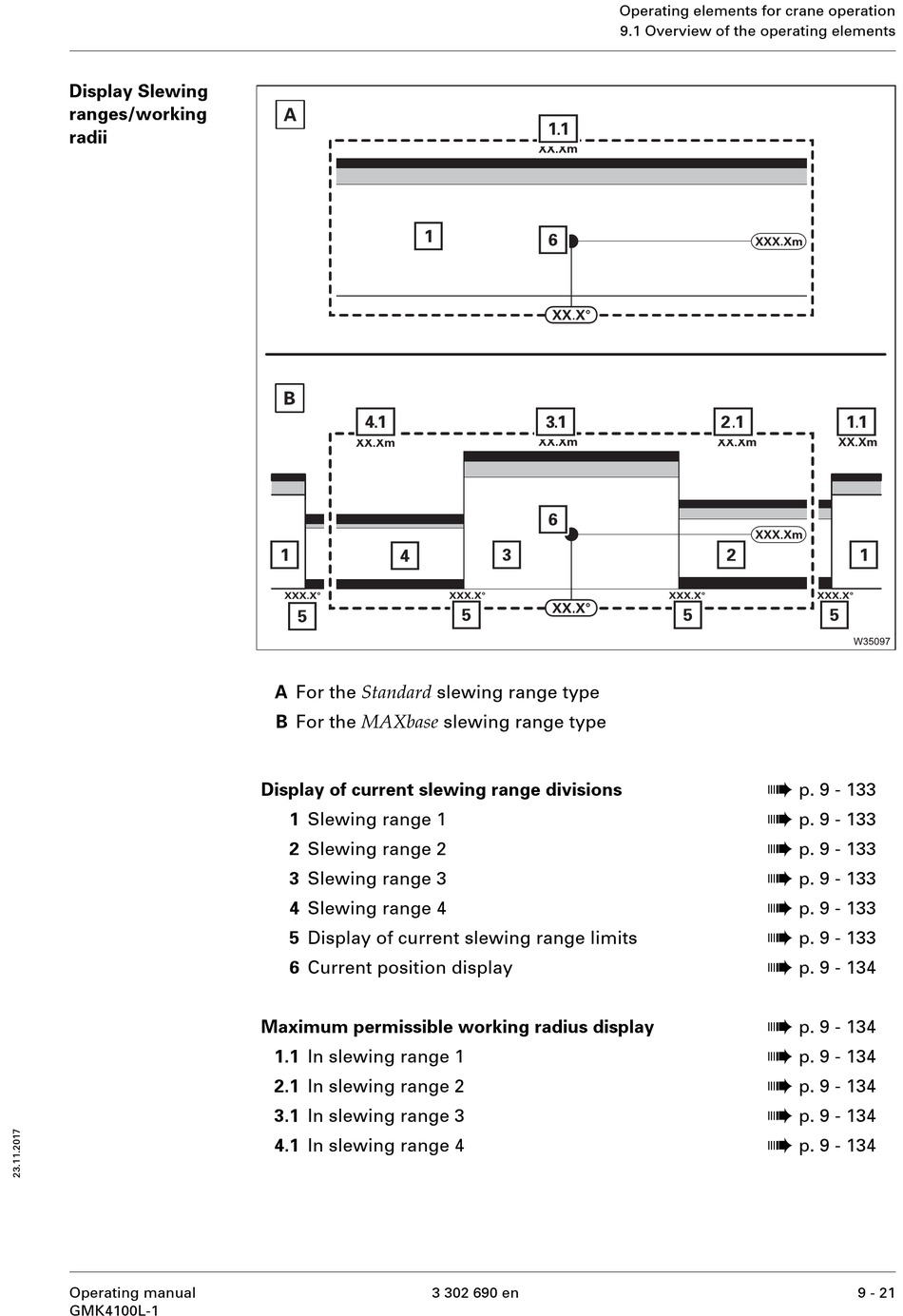

Display Slewing
ranges/working
radii
Operating manual
GMK4100L-1
A For the Standard slewing range type
B For the MAXbase slewing range type
Display of current slewing range divisions
1 Slewing range 1
2 Slewing range 2
3 Slewing range 3
4 Slewing range 4
5 Display of current slewing range limits
6 Current position display
Maximum permissible working radius display
1.1 In slewing range 1
2.1 In slewing range 2
3.1 In slewing range 3
4.1 In slewing range 4
3 302 690 en
Operating elements for crane operation
9.1 Overview of the operating elements
à
à
à
à
à
à
à
à
à
à
à
à
p. 9 - 133
p. 9 - 133
p. 9 - 133
p. 9 - 133
p. 9 - 133
p. 9 - 133
p. 9 - 134
p. 9 - 134
p. 9 - 134
p. 9 - 134
p. 9 - 134
p. 9 - 134
9 - 21
