CCS display
Operating manual
GMK4100L-1

Rated capacity limiter (RCL)

In the Start menu

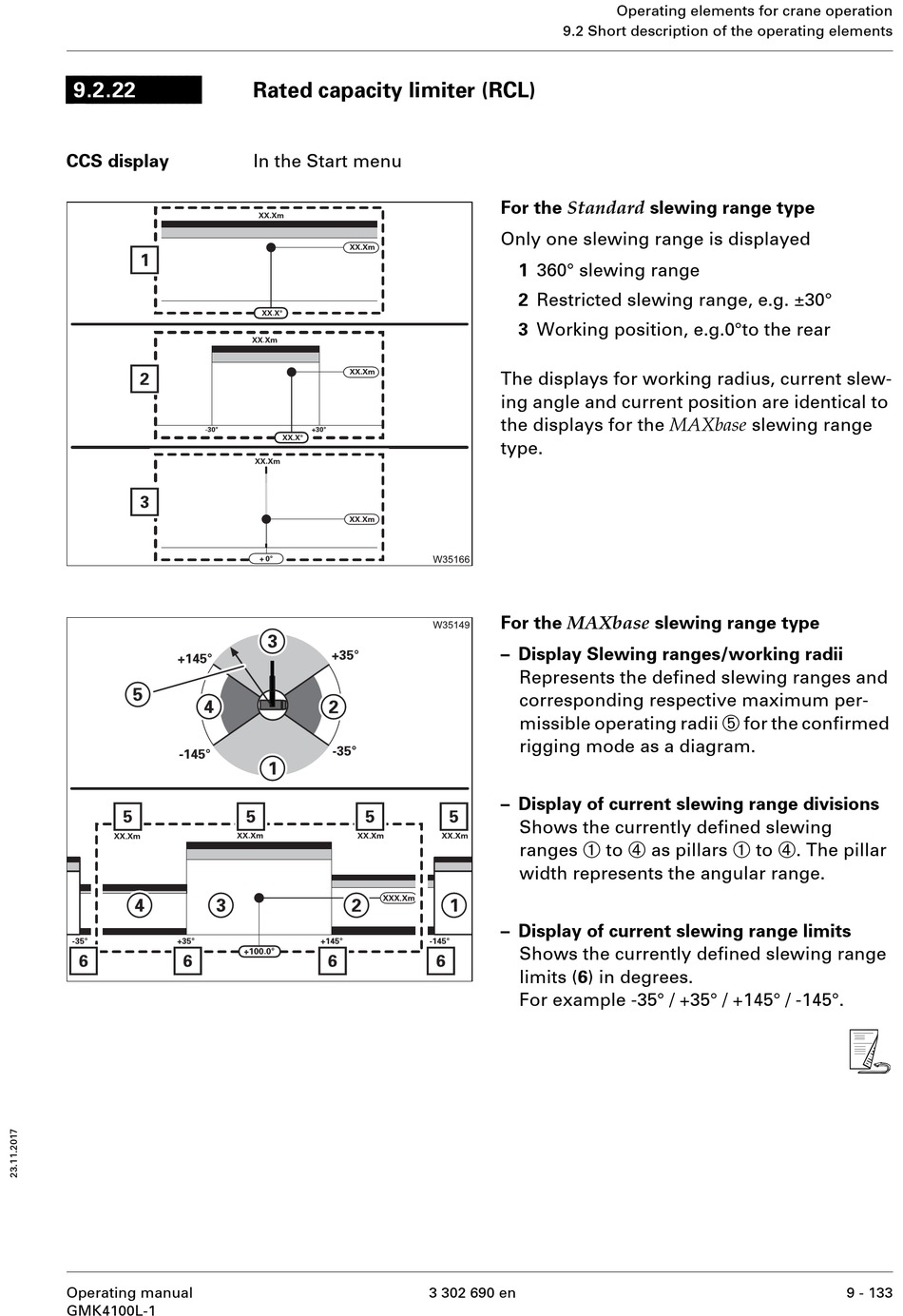

9.2 Short description of the operating elements
For the Standard slewing range type
Only one slewing range is displayed
1 360° slewing range
2 Restricted slewing range, e.g. ±30°
3 Working position, e.g.0°to the rear
The displays for working radius, current slew-
ing angle and current position are identical to
the displays for the MAXbase slewing range
type.
For the MAXbase slewing range type
– Display Slewing ranges/working radii
Represents the defined slewing ranges and
corresponding respective maximum per-
missible operating radii
rigging mode as a diagram.
– Display of current slewing range divisions
Shows the currently defined slewing
1
ranges
width represents the angular range.
– Display of current slewing range limits
Shows the currently defined slewing range
limits (6) in degrees.
For example -35° / +35° / +145° / -145°.
3 302 690 en
Operating elements for crane operation
5
for the confirmed
4 1
to as pillars to
4
. The pillar
s
