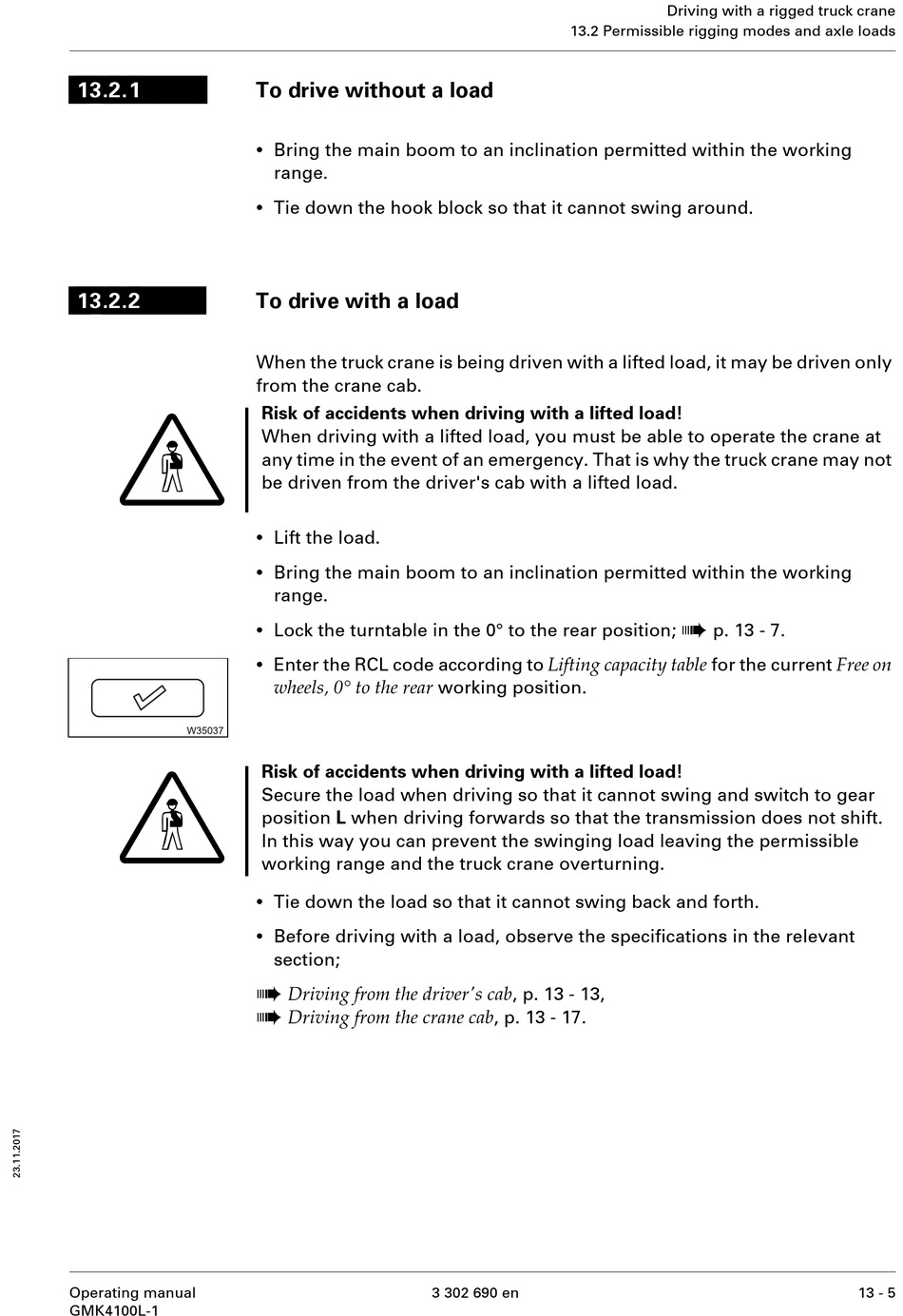

To drive without a load

Bring the main boom to an inclination permitted within the working
range.
Tie down the hook block so that it cannot swing around.

To drive with a load

When the truck crane is being driven with a lifted load, it may be driven only
from the crane cab.
Risk of accidents when driving with a lifted load!
When driving with a lifted load, you must be able to operate the crane at
any time in the event of an emergency. That is why the truck crane may not
be driven from the driver's cab with a lifted load.
Lift the load.
Bring the main boom to an inclination permitted within the working
range.
Lock the turntable in the 0° to the rear position;
Enter the RCL code according to Lifting capacity table for the current Free on
wheels, 0° to the rear working position.
Risk of accidents when driving with a lifted load!
Secure the load when driving so that it cannot swing and switch to gear
position L when driving forwards so that the transmission does not shift.
In this way you can prevent the swinging load leaving the permissible
working range and the truck crane overturning.
Tie down the load so that it cannot swing back and forth.
Before driving with a load, observe the specifications in the relevant
section;
à
Driving from the driver's cab , p. 13 - 13,
à
Driving from the crane cab , p. 13 - 17.
13.2 Permissible rigging modes and axle loads
3 302 690 en
Driving with a rigged truck crane
à
p. 13 - 7.
13 - 5
