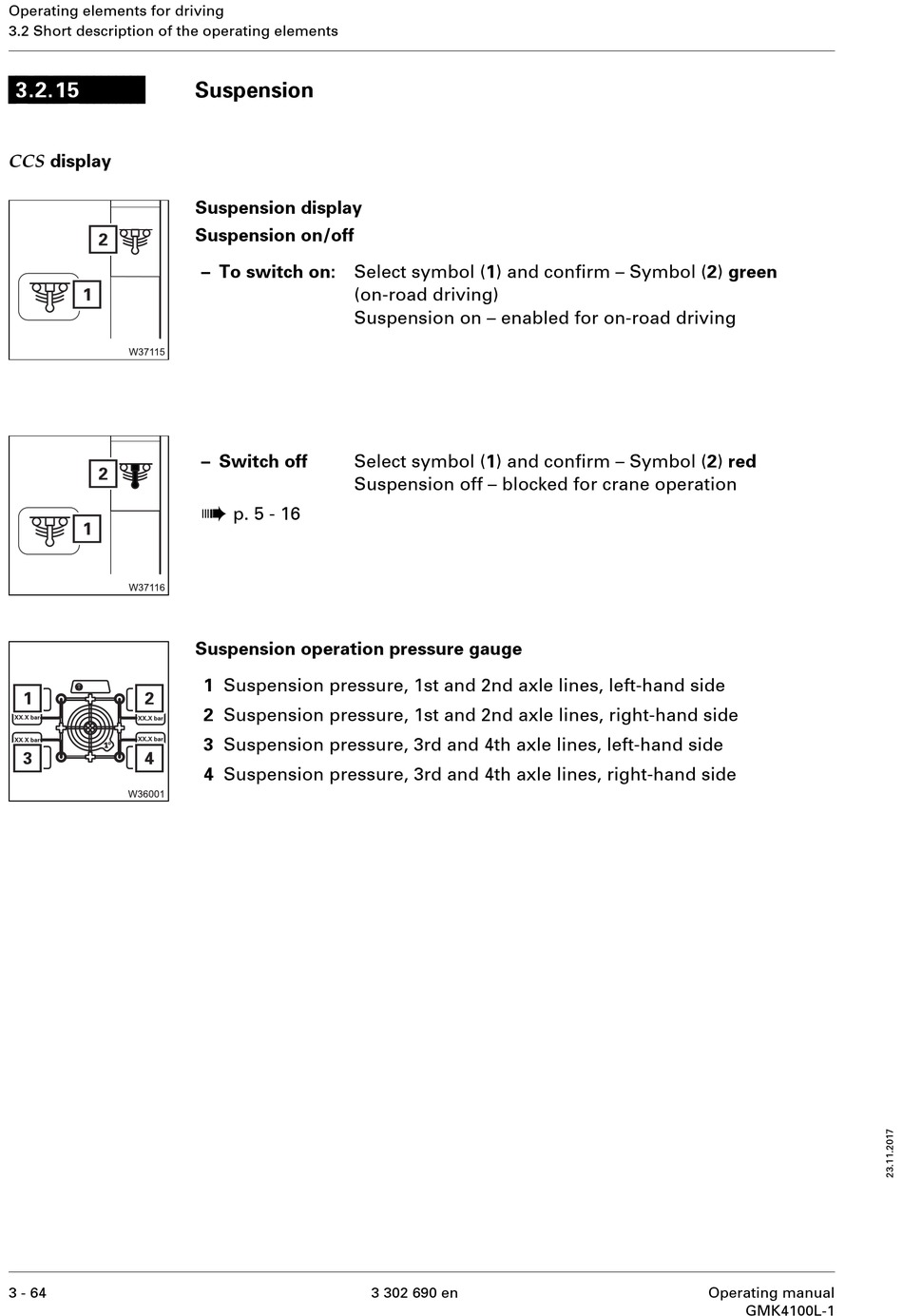

Operating elements for driving
3.2 Short description of the operating elements
3.2.15
CCS display
3 - 64

Suspension

Suspension display
Suspension on/off
– To switch on: Select symbol (1) and confirm – Symbol (2) green
(on-road driving)
Suspension on – enabled for on-road driving
– Switch off
Select symbol (1) and confirm – Symbol (2) red
Suspension off – blocked for crane operation
à
p. 5 - 16
Suspension operation pressure gauge
1 Suspension pressure, 1st and 2nd axle lines, left-hand side
2 Suspension pressure, 1st and 2nd axle lines, right-hand side
3 Suspension pressure, 3rd and 4th axle lines, left-hand side
4 Suspension pressure, 3rd and 4th axle lines, right-hand side
3 302 690 en
Operating manual
GMK4100L-1
