Operating manual
GMK4100L-1

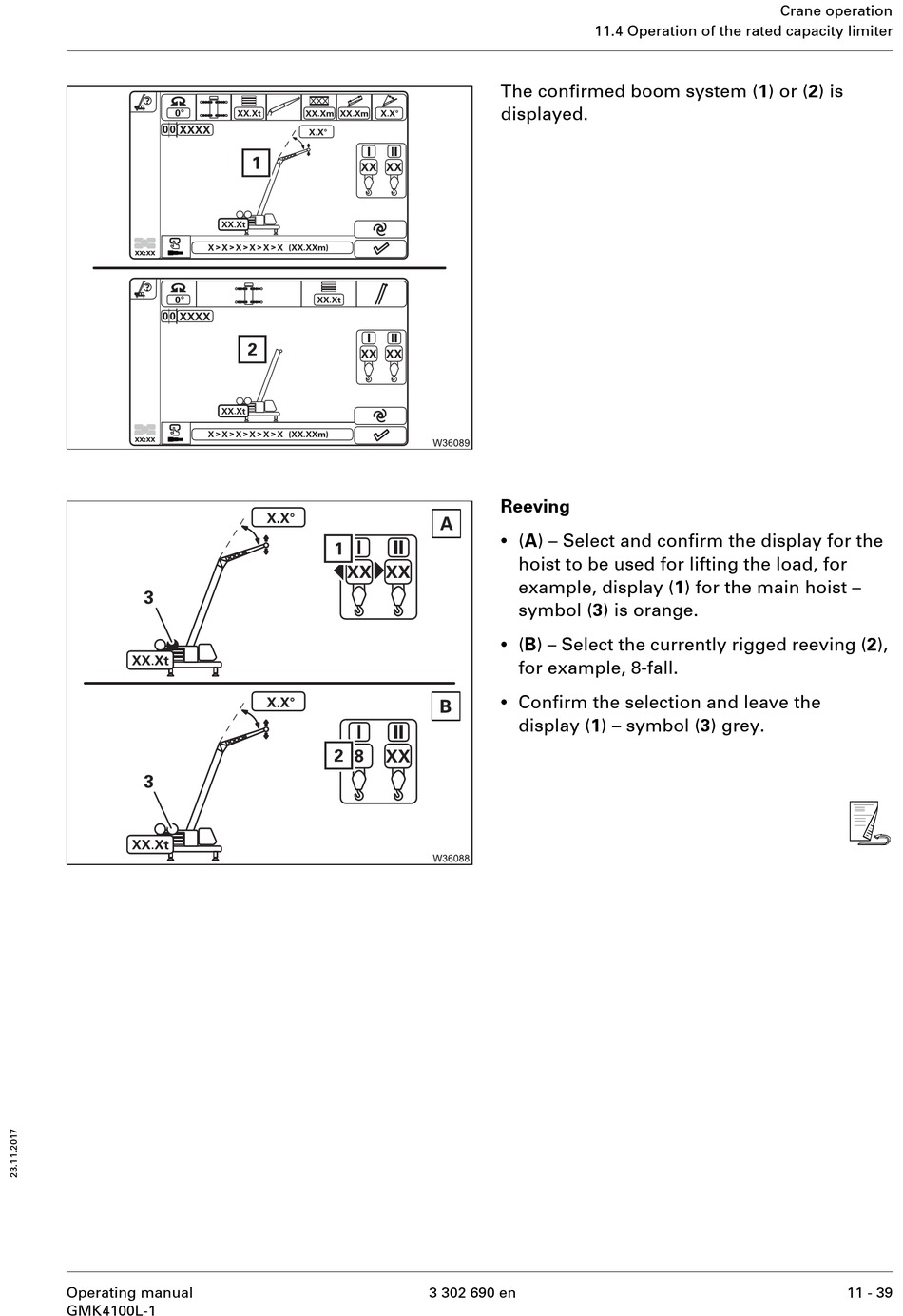

11.4 Operation of the rated capacity limiter
The confirmed boom system (1) or (2) is
displayed.
Reeving
•
(A) – Select and confirm the display for the
hoist to be used for lifting the load, for
example, display (1) for the main hoist –
symbol (3) is orange.
•
(B) – Select the currently rigged reeving (2),
for example, 8-fall.
•
Confirm the selection and leave the
display (1) – symbol (3) grey.
3 302 690 en
Crane operation
s
11 - 39
