Establishing/Disconnecting The Hydraulic Connections - Manitowoc Grove GMK4100L-1 Operating Manual

6.4.5
Operating manual
GMK4100L-1

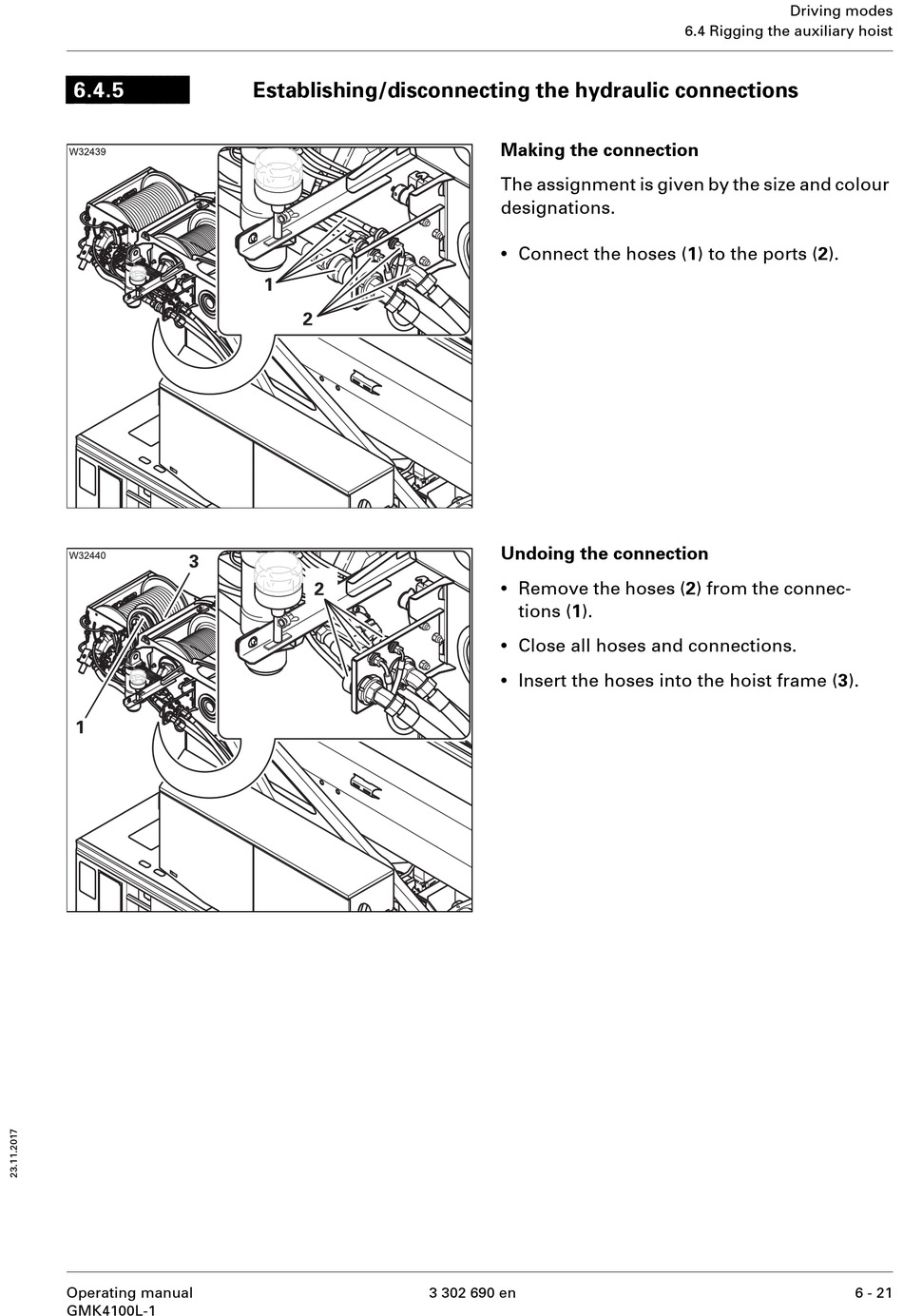

Establishing/disconnecting the hydraulic connections

Making the connection
The assignment is given by the size and colour
designations.
•
Connect the hoses (1) to the ports (2).
Undoing the connection
•
Remove the hoses (2) from the connec-
tions (1).
•
Close all hoses and connections.
•
Insert the hoses into the hoist frame (3).
