11.6.7
Operating manual
GMK4100L-1

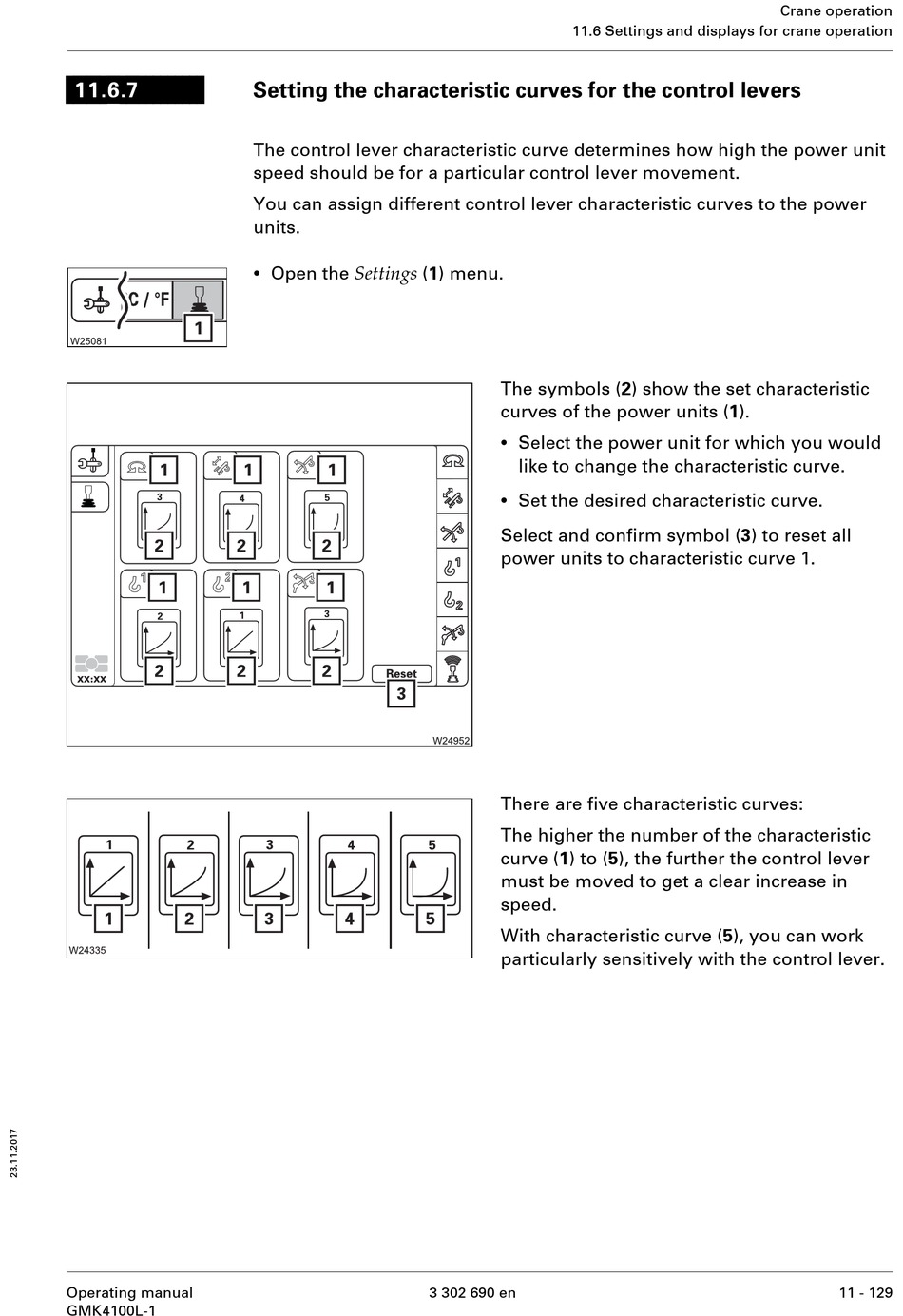

Setting the characteristic curves for the control levers

The control lever characteristic curve determines how high the power unit
speed should be for a particular control lever movement.
You can assign different control lever characteristic curves to the power
units.
•
Open the Settings (1) menu.
11.6 Settings and displays for crane operation
The symbols (2) show the set characteristic
curves of the power units (1).
•
Select the power unit for which you would
like to change the characteristic curve.
•
Set the desired characteristic curve.
Select and confirm symbol (3) to reset all
power units to characteristic curve 1.
There are five characteristic curves:
The higher the number of the characteristic
curve (1) to (5), the further the control lever
must be moved to get a clear increase in
speed.
With characteristic curve (5), you can work
particularly sensitively with the control lever.
